Induction Heating Machine

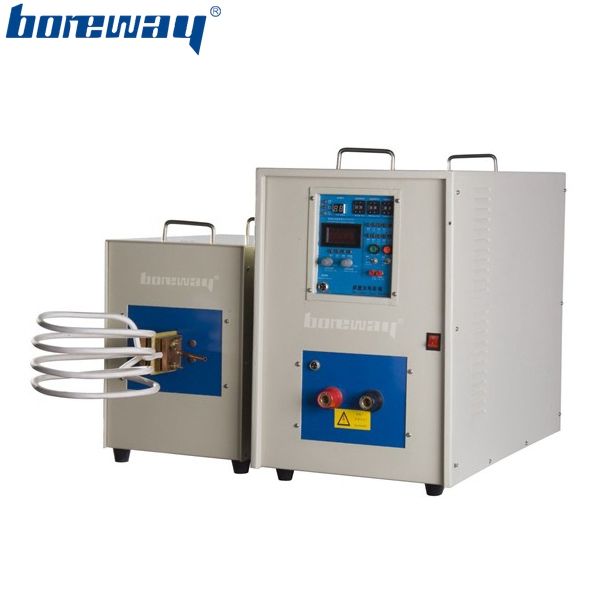

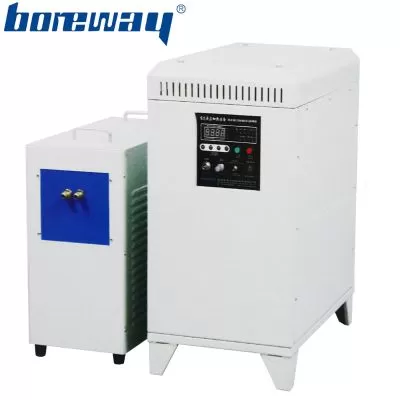

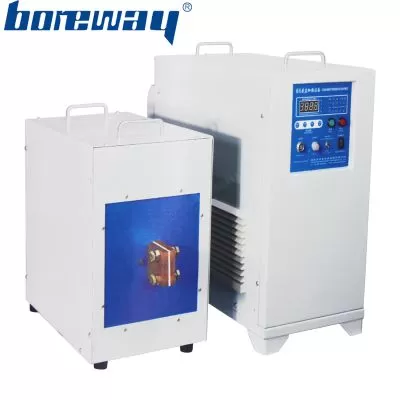

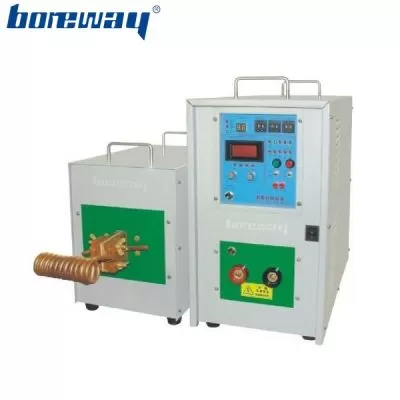

30KW Portable High Frequency Induction Heating Machine Wholesale Price
Product Specification:
-
Model :BWM-30AB
-
Type :Electrify
-
Power :30KW
-
Machine Weigh :30Kg
-
Work frequency :30-80KHz
-
Advantage :High quality and long lifespan
-
Packing Dimension :450mm*255mm*390mm
May you like
- Product Details

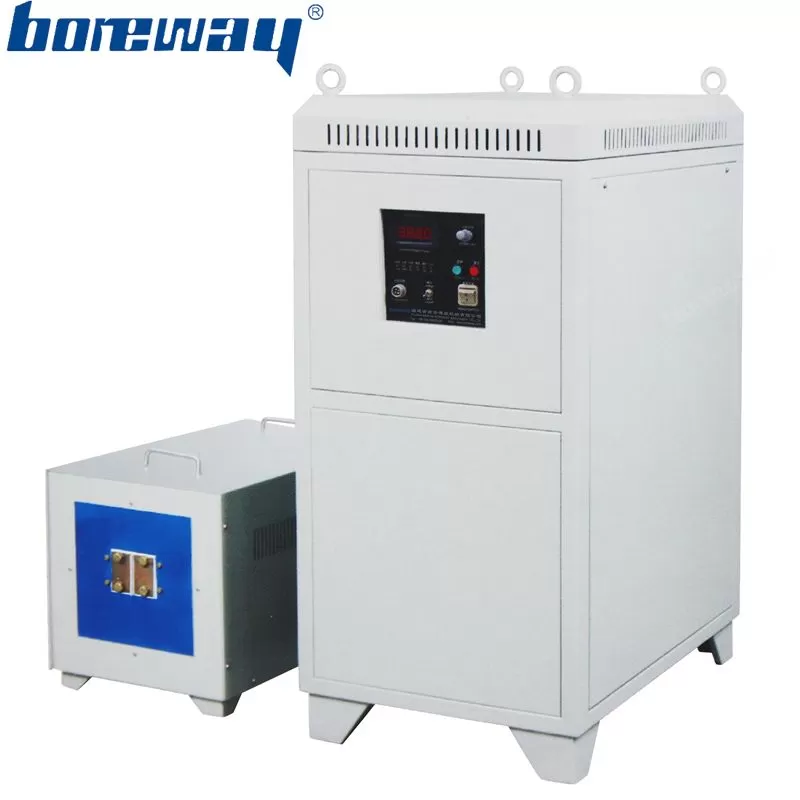

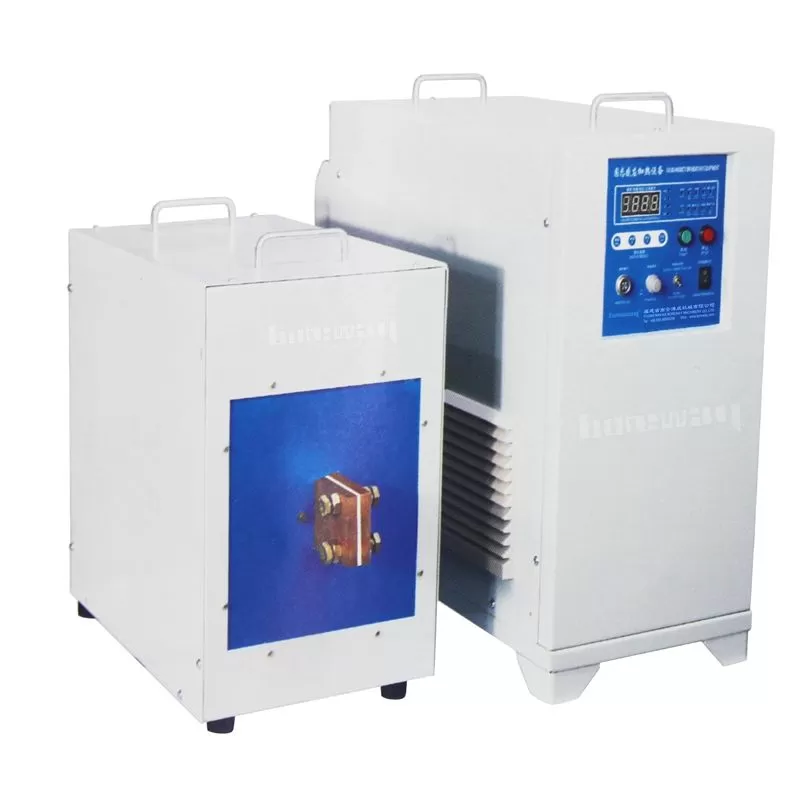

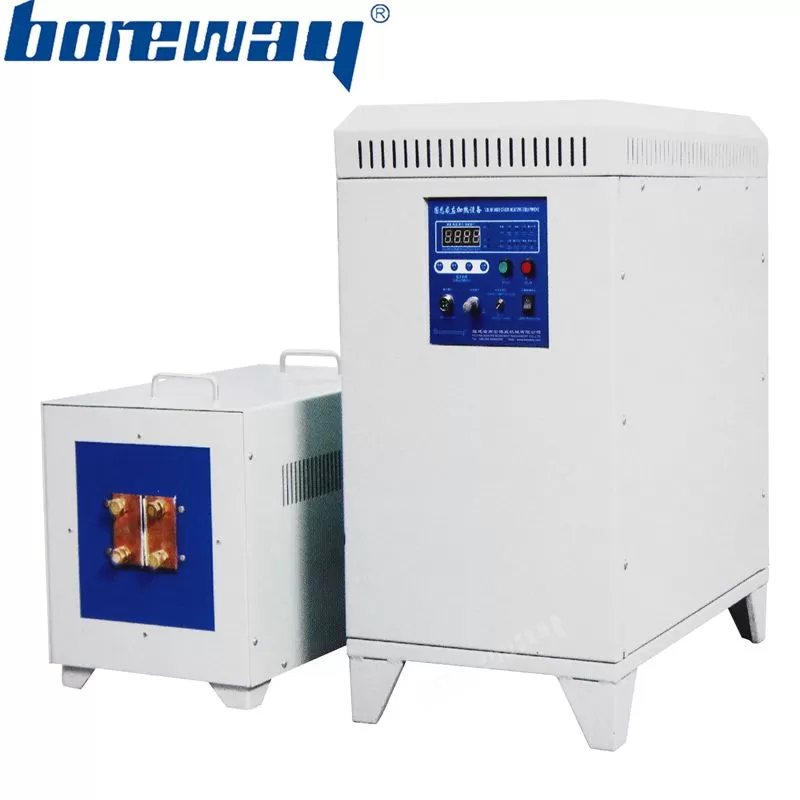

30KW Portable High Frequency Induction Heating Machine for welding sealing hardening metal melting
This Induction heating machine,The device uses a series resonant circuit, low-voltage, high-current, high-frequency power by high frequency transformer output resonance; equipment for our company's first generation products,using MOSFET power devices and our first eneration variable flow control technology, equipment very simple structure,high reliability, easy maintenance,low maintenance,customer, and is currently the most widely used one of the devices.
Features:
1. Under the same conditions, saving a double electric energy than traditional ones.
2.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature
measurement, automatic temperature control, improve the heating quality and simplify the manual
operation.
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of
higher reliability and durability.
4. Applied to the workplace with poor environment, you can put the main host machine in clean space,
reducing the host's repair rate, increase the reliability of the device.
5.Can be used in pipeline operations, the small ext machine occupies a small counter top space, easy
to move.
Features:
1. Under the same conditions, saving a double electric energy than traditional ones.
2.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature
measurement, automatic temperature control, improve the heating quality and simplify the manual
operation.
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of
higher reliability and durability.
4. Applied to the workplace with poor environment, you can put the main host machine in clean space,
reducing the host's repair rate, increase the reliability of the device.
5.Can be used in pipeline operations, the small ext machine occupies a small counter top space, easy
to move.
30KW Portable High Frequency Induction Heating Machine for welding sealing hardening metal melting
|
Parameters |
Numerical |
|
Input voltage |
Three-phase 380V |
|
Power |
30 KW |
|
Out current |
400-1500 A |
|
Work frequency |
30-80 KHZ |
|
Rated duty cycle |
100% |
|
Power factor |
≥95 |
|
Temperature of cooling water |
≤ 40°C |
|
Cooling water Pressure |
0.06Mpa-0.12Mpa |
|
Cooling watering flow |
7.5 L/min |
|
Main host size and weight |
600 × 255 × 540mm 35Kg |
|
Ext dimensions and weight |
450 × 255 × 390mm 30KG |
The above specifications are for reference, other or special specifications can be ordered by customers.

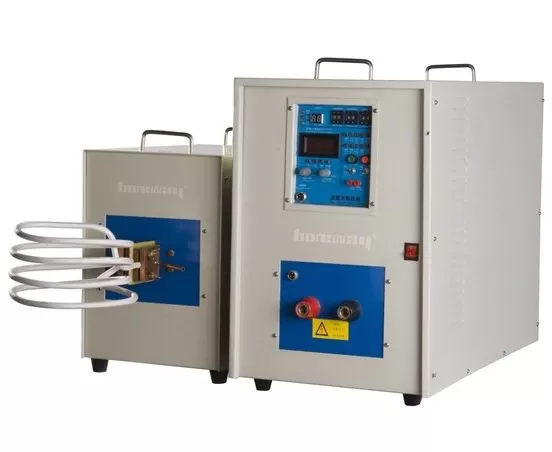

Three Phases 30KW Portable High Frequency Induction Heating Machine:
High Frequency Induction Heating Welding Machine 20KW,25KW,30KW,40KW(Single Phase and three Phases)
Your application is unique, so you need a unique induction heating machine solution. We first analyze your application to determine the parameters and requirements for your induction heater. Then we develop your solution by answering questions such as the following:
-
What is the metal to be heated?
-
What is the appropriate frequency?
-
What power level is required?
-
What coil size and shape does the project demand?
The result is a dependable custom induction heating system solution that consistently meets your application requirements.
1. Question: Generic Induction heaters: (one size and design fits all). Is this the case?
Answer: Heating different metals to different temperatures require matching the induction system to the application. Choice of the correct frequency, correct coil size and shape and adequate power level are always important. Often engineers think they can just throw a lot of heating power at a job and lucky results will happen. More likely, the part will not heat to the required temperature or internal components will fail from high circulating voltages.
2. Question: Are domestic suppliers and their engineering staff better able to service and supply parts for Induction units used in a factory floor environments where downtime due to component failure cannot be tolerated?
Answer: Answer is obvious, having a staff to assist you in downtimes is a high priority and something that we take pride in providing for our customers.
We will deliver within seven days of your payment,products are packed in wooden.
We can also pack the Portable High Frequency Induction Heating Machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
Special specifications need to be negotiated with us before the delivery date.
