Induction Heating Machine

5kw Ultrahigh Frequency Induction Heating Equipment Machine For Welding

5kw Ultrahigh Frequency Induction Heating Equipment Machine For Welding

Product Specification:

Brand :

Boreway
Duty Cycle :

80%
Origin :

Fujian, China
Oscillating Power :

5kw
Model NO. :

BWM-CGP-5
Specification :

51*19*39cm
Maximum Output Power :

5kw
Operating Power Range :

170~240V

See Price

May you like

China Factory Price 30kw Ultra High Frequency Induction Heating Machine

30kw Ultra High Frequency Induction Heating Machine for Welding,Hardening,Forging,Annealing,Metallurgy Machinery Supplier or Manufacturer-Boreway Machinery Electronic Equipment Manufacturer

20kw Portable_high Frequency Brazing Welding Heating Machine for Quenching

Portable-high Frequency Brazing Welding Heating Machine For Welding,Hardening,Forging,Annealing,Metallurgy Machinery Supplier or Manufacturer-Boreway Machinery Electronic Equipment Manufacturer

5kw Ultrahigh Frequency Induction Heating Equipment/machine For Welding,Hardening,Forging,Annealing , Find Complete Details about 25kva High Frequency Induction Heating Equipment/machine For Welding

45KW High Frequency Induction Heating Machine Hardening Machine equipment Manufa

45KW High Frequency Induction Heating Machine, Find details about China Induction Heating Machine, Induction Heater from High Frequency Induction Heating Machine Hardening Machine

Product Details

Portable Induction Heating Machine. This high frequency induction heating equipment is particularly suitable for heat treatment and quenching, melting, annealing, the metal through the heat forging, extrusion, welding, brazing.

5kw Ultrahigh Frequency Induction Heating Equipment BWM-CGP-5 Features:

1.100% duty cycle. 24 hours working ability.

2.Small size, light weight. Easy to move to workplace.

3.Adopt MOSFET. frequency from 50KHz to 150KHz, energy saving and steady.

4.Easy operation and installation. Install power and cooling water without technician.

5.Working frequency trace automatically technology. The generator adapt the different coil well.

The followings are the normal specifications of our 5kw Ultrahigh Frequency Induction Heating Equipment:

Model	BWM-CGP-5	BWM-CGP-20
Input power	Single phase 220V 50/60Hz	Three phase 380V 50/60Hz
Operating power range	170~240V	340~440V
Oscillating frequency	600~800KHz	600~800KHz
Maximum output power	5KW	20KW
Duty Cycle	80%	90%
Cooling water pressure	0.1~0.3MPa	0.1~0.3MPa
Cooling water temperature	40ºC	40ºC

The induction heating equipment with different appearance, power and other special requirements can be customized according to the customer's requirements.

Main Apploication and characterisctis:

BWM-CGP series ultrahigh frequency induction heating machine are suitable for many applications.

1.Brazing of glass frame,

2.Small wire brazing,

3.Small screw hardening and so on.

Due to our latest inverting control technology and MOSFET pwer components. Our ultrahigh frequency series machine could output high frequency up to 800KHz. It is especially suitable to heat tiny parts and wires.

5kw Ultrahigh Frequency Induction Heating Equipment:

5kw Ultrahigh Frequency Induction Heating Equipment/machine For Welding,Hardening,Forging

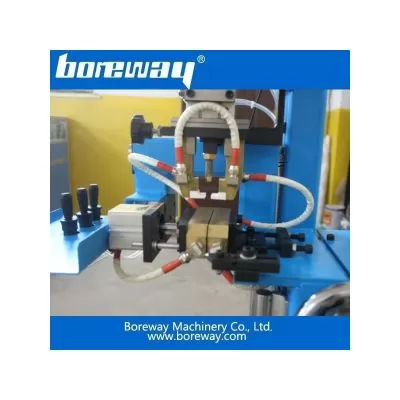

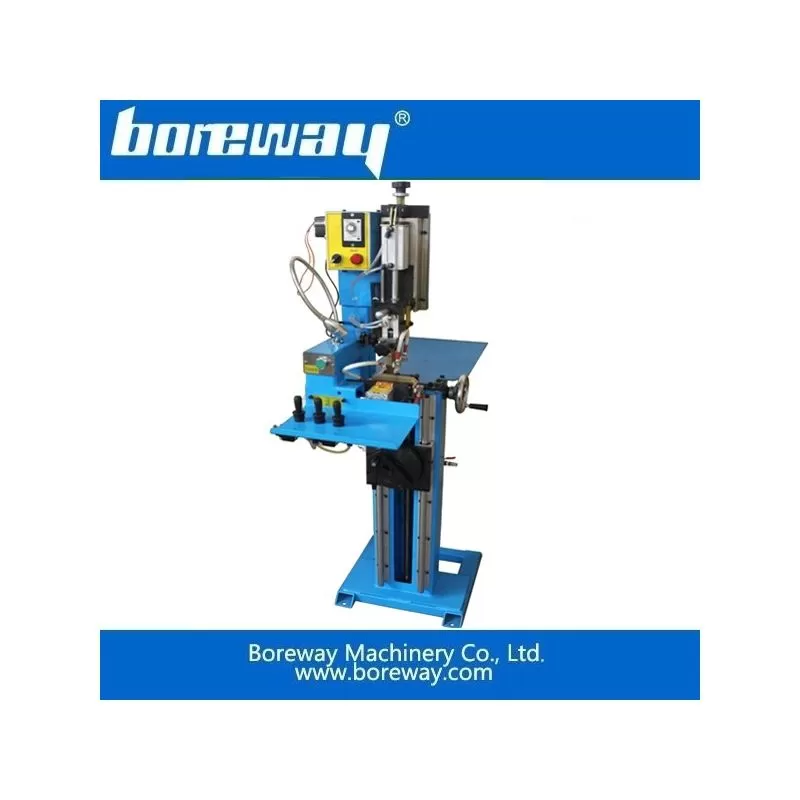

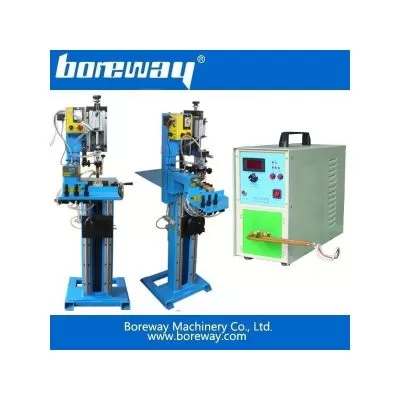

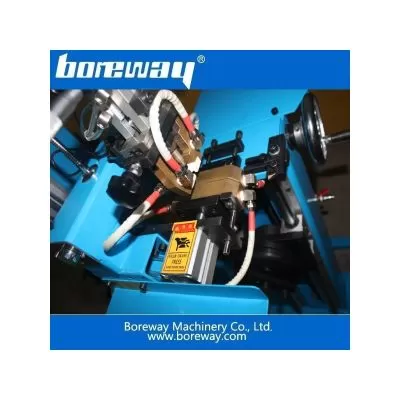

Details Image:

Welding Materials:

Spare parts with machine:

1.Induction coils 2.Foot switch
3.Hose clamp 4.Manual
5.Guarantee card

5kw Ultrahigh Frequency Induction Heating Equipment:

Brazing:

5kw Ultrahigh Frequency Induction Heating Equipment/machine For Welding,Hardening,Forging

Forging:

5kw Ultrahigh Frequency Induction Heating Equipment/machine For Welding,Hardening,Forging

Quenching:

5kw Ultrahigh Frequency Induction Heating Equipment/machine For Welding,Hardening,Forging

Packing List:

No.	Package list	Amount
1	Generator	1
2	Induction coils	2
3	Foot switch	1
4	Hose clamp	4
5	Manual	1

Your application is unique, so you need a unique induction heating solution. We first analyze your application to determine the parameters and requirements for your induction heater. Then we develop your solution by answering questions such as the following:

What is the metal to be heated?
What is the appropriate frequency?
What power level is required?
What coil size and shape does the project demand?

The result is a dependable custom induction heating system solution that consistently meets your application requirements.

1. Question: Generic Induction heaters: (one size and design fits all). Is this the case?

Answer: Heating different metals to different temperatures require matching the induction system to the application. Choice of the correct frequency, correct coil size and shape and adequate power level are always important. Often engineers think they can just throw a lot of heating power at a job and lucky results will happen. More likely, the part will not heat to the required temperature or internal components will fail from high circulating voltages.

2. Question: Are domestic suppliers and their engineering staff better able to service and supply parts for Induction units used in a factory floor environments where downtime due to component failure cannot be tolerated?

Answer: Answer is obvious, having a staff to assist you in downtimes is a high priority and something that we take pride in providing for our customers.

We will delivery within seven days of your payment,products are packed in wooden.

We can also pack the 30kw Induction Heater according to your requirements.

5kw Ultrahigh Frequency Induction Heating Equipment/machine For Welding,Hardening,Forging

Special specifications need to be negotiated with us before the delivery date.
