Hydraulic Cold Press Machine

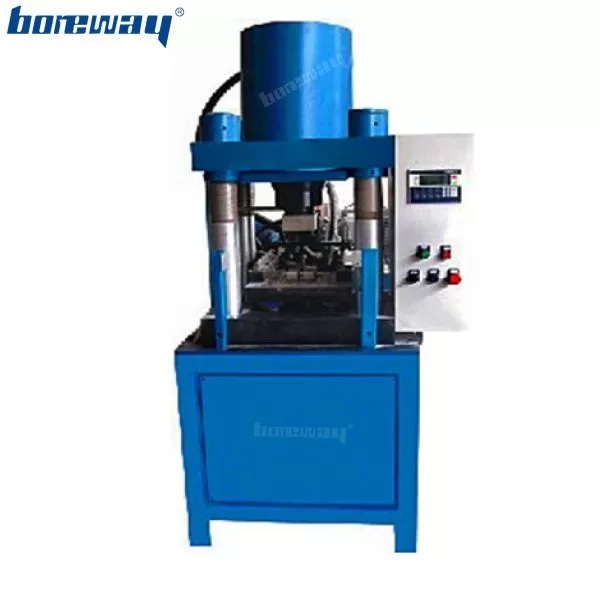

Automatic Hydraulic Cold Press Machine For Diamond Segments BWM_HP100
Product Specification:
-
Model Number :BWM-HP100
-
Total Power :7.5kw
-
Voltage :380V
-
Working current :18A
-
Oil tank volume :230L
-
Control system voltage :24V
-
Pressure control range :0-60Ton
May you like
- Product Details

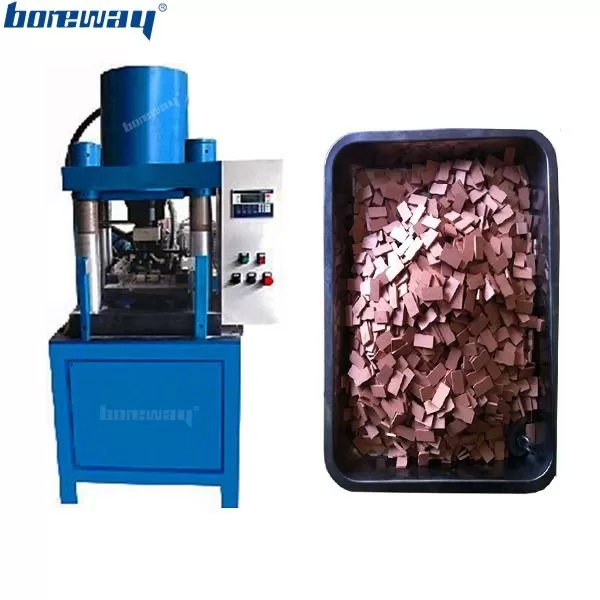

Automatic Hydraulic Cold Press Machine For Diamond Segments BWM-HP100
1. Its working pressure is controled by pressure switch.
2. It uses positive displacement and designs automatic feeding.
3. Easily operation , it is relaxed for a person to operate 3-10 sets .
4. Advantages: high precision,reliable performance,stable compressor
5. The operation system uses touch screen, very intuitive and understandable.
6. We have registered our own brand. Therefore we ensure the quality about the products we produce.
7. Every time it can suppress 1-6 pieces( following with mould changes) , to improve the production efficiency.
8. The machine specializes in producing gand saw segments,diamond segments and abnormal shape segments.
9. We have strong and professional techniques in our products for cutting kind of stones.and we have satisfied after service.
We treasure every client honesty and we keep a stable cooperation relationship with our clients.
Automatic Hydraulic Cold Press Machine For Diamond Segments BWM-HP100
The following is our normal specification of the hydraulic automatic tablet press.
| Denomination: | |||
| Gross power | 7.5kw | ||
| Voltage | 380V | ||
| Working current | 18A | ||
| Control system voltage | 24V | ||
| Pressure control range | 0-60Ton | ||
| Oil tank volume | 230L | ||
| Suppress range | Min weight 0.5g(including diamond powder) | ||
| Min weight 0.4g(not including powder) | |||
| Max weight 30g(following with mould) | |||
| Control system | Industry PLC and touch screen | ||
| Volume | 760mm*1600mm*2300mm (L*W*H) | ||
| Weight | 1400kg | ||
| Error range | ±0.02g/pcs | ||
| Production quantity | 1200times/h | ||
We can also provide other specifications upon clients' demands.
Automatic Hydraulic Cold Press Machine For Diamond Segments BWM-HP100

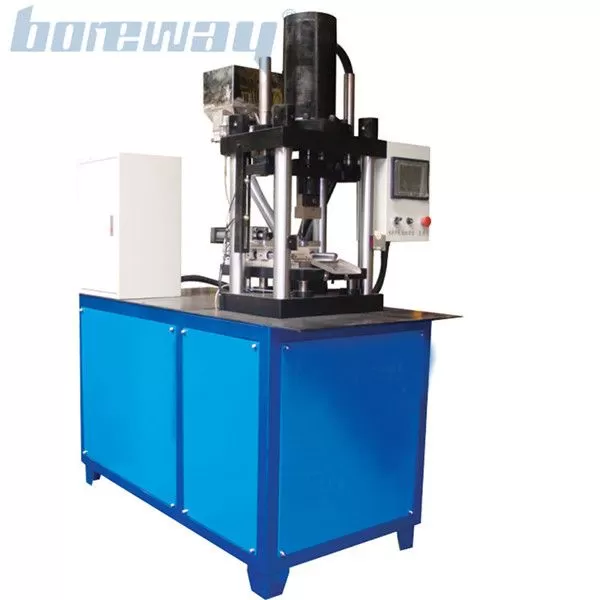

Model BWM-HP40 Intelligent hydraulic press machine
Model BWM-HP60 Hydraulic Cold Press Machine for diamond segment
Automatic Hydraulic Cold Press Machine packing in the wooden case.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
