Making Diamond Segment

Mechanical Cold Press Machine

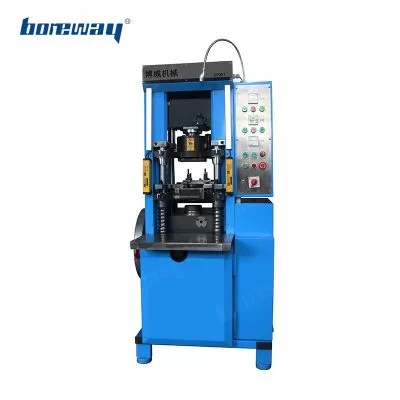

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

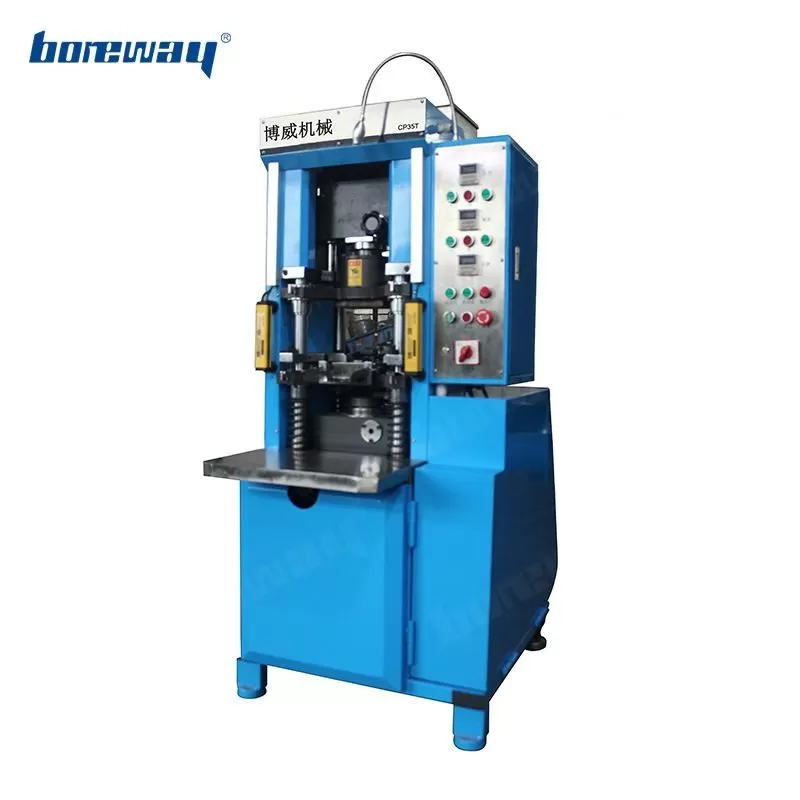

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

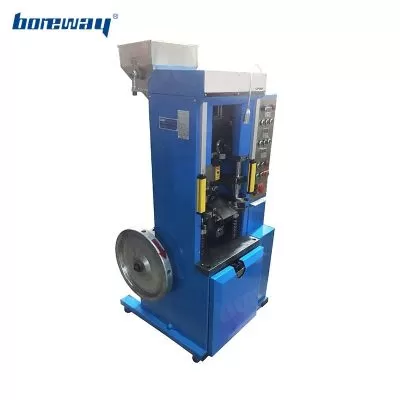

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

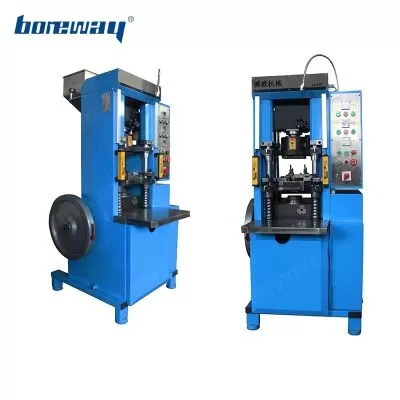

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment
Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

Product Specification:
  • Model :
    BWM-35T
  • Motor Power :
    2.2KW
  • The rated current :
    6A
  • The rated voltage :
    380V
  • Distance of upward :
    64MM
  • Work efficiency :
    34Times / Min
  • Maximum working pressure :
    35000KGS
See Price
  1. Product Details


Boreway 35T Mechanical Cold Press Machine can produce high-quality fan-shaped diamond segment, and can also produce other types of conventional and specially customized diamond segment.​

The Boreway has a lot of new technologies for the 35T Mechanical Cold Press Machine, which is highly cost-effective. It can absolutely meet your requirements of diamond segment production.



The following are the features and advantages of our machine:

Features:
1. Small and delicate LED work light;
2. The screen is working together with the brake, greatly increasing safety factor for operator;
3. It also can be used for pressing the segment with a base layer of metal powder (welding layer).
4. Feeding the metal powder in the way of mechnical, feeding more twice extraly in a short distance and more accurate;
5. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
6. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipments, increasing service life of the machine;
7.The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply;

Advantage:
1. Export to all countries in the world and enjoy a good reputation.
2. The machine has received good use feedback and customer praise.
3. The product has high quality and long service life.

All of our products have been strictly tested before access to market.


Boreway 35T Mechanical Cold Press Machine:
Model: BWM-MP35T
 Maximum working pressure  35000KGS
 Maximum size of mould cavity  40*70MM
 Size of the mould  L (220-250) * W 130 * H (20-30)CM
 The largest volume of hopper box  30KGS
 Maximum height of metal powder  0.5-20MM
 Weight accuracy of metal piece  ±2%
 Quantity of metal piece per time  1- 4PC
 Motor Power  2.2KW
 The rated voltage  380V
 The rated current  6A
 Work efficiency  34Times / Min
 Size of the mould  L (220-250) * W 130 * H (20-30)CM
 Device dimension  L810 * W1000 * H1600(Face angle)
 Net Weight  760KGS

Other specifications can be customized according to buyer's requirements.


Boreway 35T Mechanical Cold Press Machine:

Automatic Diamond Segment Cold Press Machine

Boreway 35T Mechanical Cold Press Machine​:

The Details:

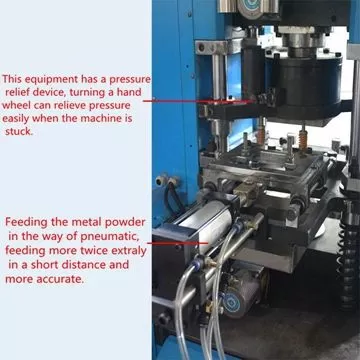

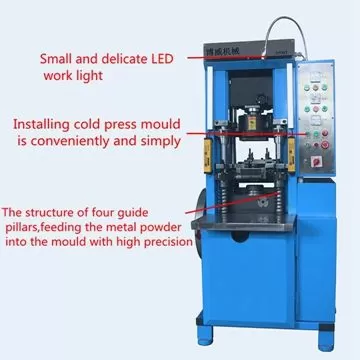

35T Mechanical Cold Press Machine2035T Mechanical Cold Press Machine21

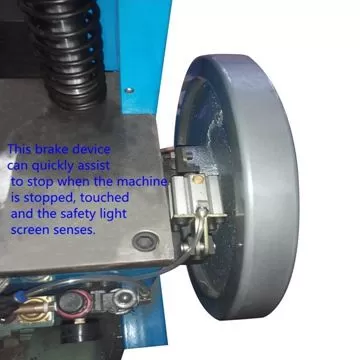

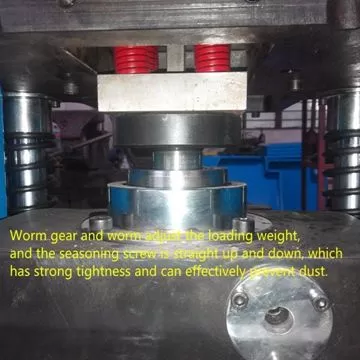

35T Mechanical Cold Press Machine2235T Mechanical Cold Press Machine23

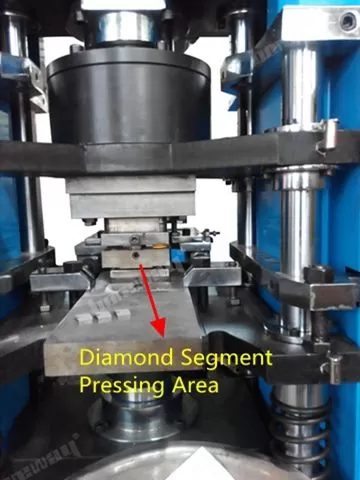

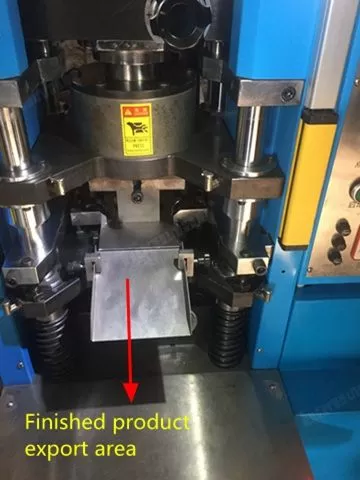

35T Mechanical Cold Press Machine2435T Mechanical Cold Press Machine25

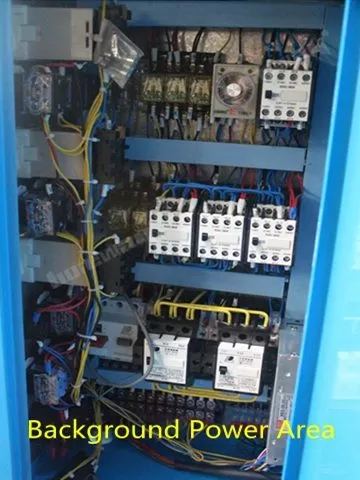

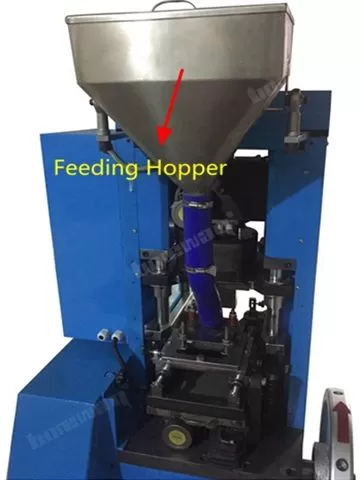

35T Mechanical Cold Press Machine2635T Mechanical Cold Press Machine27



Diamond Segment Cold Press Machine Accessories and Tool Box included as below:

Abrasive Diamond Powder‎ cold press machine accessoriesAbrasive Diamond Powder‎ cold press machine tool box

This cold press machine can make the following diamond segments,also can make other kinds.
More Pics in details, Please contact with us :)
diamond segments cold press machine
We will delivery the cold press machine within seven days after your full payment.
Diamond Segment Cold Press Machine packed in standard export wooden case.
We can also pack the cold press machine according to your requirements.
Special specifications need to be negotiated before the delivery date.

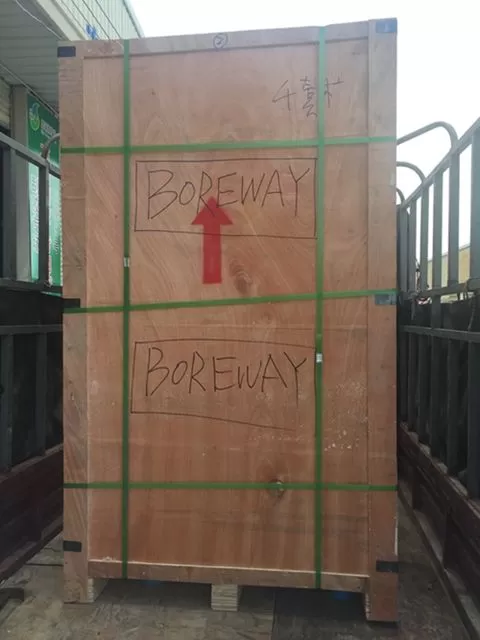

Packing:
Automatic Mechanical Cold Press Machine
Shipping:
Automatic Diamond Segment Cold Press Machine

How to make a diamond segment?
1.Mix the powders
2. Cold pressed
3. Fill it in mould
4. Sintered
5.Mould removal
6. Deburring and Inspection

If you need to make diamond segments yourself, you need the following equipments:
1.Cold press machine
2. Sintering machine
3. Mixing machine(the mixer)
4. Graphite Mould + Graphite Mould Frame for Sintering segment
    Diamond and other metal powders for segments
    Cold pressing mould
We have all the above mentioned equipments
Welcome to Contact with us if you want to know more details of this cold press machine.
