Automatic Radius Grinding Machine for diamond segment BWM_RGA50

Product Specification:

Model :

BWM-RGA20
Power :

1.1kw
Weight :

350kg
Main speed :

0~2800r/min
Segment size :

Lenght 25-50mm
Production efficiency :

520 pcs/h
Electric :

AC380V three phases 50Hz

See Price

May you like

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

35T Mechanical Cold Press Machine for Fan Shape Segment, can be used for pressing of large, medium and small saw blade segment, Fan Shape Segment and some special shape.

60T Pressure Automatic Cold Press Machine for Diamond Segment

Automatic Cold Press Machine for Diamond Segment, can be used for pressing of large, medium and small saw blade segment and some special shape.

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

Automatic Mechanical Cold Press Machine, this Cold Press Machine can be used for pressing of large, medium and small saw blade segment, fan-shape segment and some special shape.

60T Automatic Cold Press Machine For Diamond Segments Production BWM_MP60

Automatic cold press machine for making diamond segment,diamond segment powder cold press machine Suppress a various of metal powers,inculding pre-alloy power,no granulation.

Product Details

Automatic Radius Grinding Machine for diamond segment BWM-RGA50

Auto Radius Grinding Machine use grinding belt to grind segment automatic loading diamond segment, quantity can be setted.

The equipment uses abrasive belt to automatically and accurately grind the arc welding part of laser welding segments. There is an automatic segments feeding device, which can adjust the moving speed and set the number of work by itself. The machining process is composed of the linear movement of the segment holder and the operation of the abrasive belt. The grinding of different radians can be realized by replacing the mould.

Automatic Radius Grinding Machine for Diamond Segment：

Parameter
Type:	RGA50
Power:	1.1KW
Electric:	AC380V three phases 50Hz
Main speed:	0~2800r/min
Weight:	350kg
Machine Size	Lenght 1160mm Width 1270mm Height 1250mm


Segment size:	Lenght 25-50mm Height 10-15mm

Production efficiency: 520 pcs/h, Cold Water:10L
Grindable Segment size: 25-50mm(L)*1.5-4mm(H)*10-15mm(W)

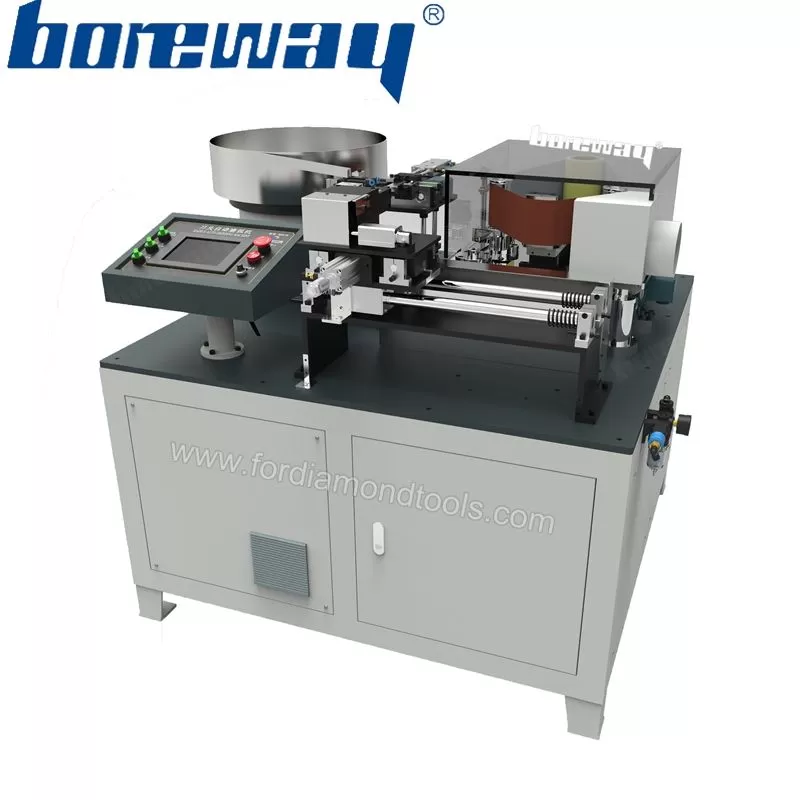

Automatic Radius Grinding Machine For Diamond Segment BWM-RGA50

Automatic Radius Grinding Machine for diamond segment BWM-RGA50

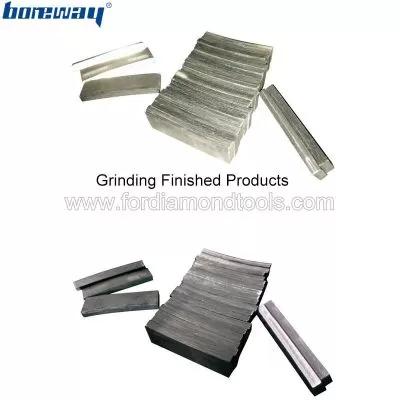

Grinding finished products:

Automatic Radius Grinding Machine for diamond segment 01

Automatic Radius Grinding Machine for diamond segment 02

Diamond Segment Radius Grinding Machine packing in the wooden.

We can also pack the sharpening machine according to buyer's requirements.
Special specifications need to be negotiated with us before the delivery date.
