Making Diamond Segment

Induction Heating Machine

Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine
Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine
Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine
Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine
Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine
Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine

Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine

Product Specification:
  • Origin :
    Fujian, China
  • Model No. :
    BWM-GP20H
  • Weight :
    24kg
  • Duty Cycle :
    90%
  • Voltage :
    AC220V
  • Cable Length :
    4m
  • Specification :
    48*19*3
  • Oscillating Power :
    20kw
  • Name :
    Handheld Induction Heating Machine
See Price
  1. Product Details



The followings are the normal specifications of our Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine​:

Origin: Fujian, China
Model No.:
BWM-GP20H
Cable Length: 4m
Weight: 24kg
Voltage: AC220V
Duty Cycle: 90%
Oscillating Power: 20kw
Operating Power Range: 170~240V
Specification: 48*19*39cm
Maximum Output Power: 16kw
Oscillating Frenquency Range: 50~150kHz
Cooling Water Flow/Pressure: 20L/Min 0.1~0.3MPa
Name: Handheld Induction Heating Machine



The induction heating equipment with different appearance, power and other special requirements can be customized according to the customer's requirements.




Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine

The Handheld Induction Heating Machine rejects the technical structure of high-frequency induction and high-voltage induction heating equipment with high-voltage and tube oscillation as the main body, and the medium-frequency induction technology structure based on the silicon and its complex control technology. The various problems encountered in the transportation, installation, use and maintenance of the conventional induction heating equipment are fully reflected, and the user is provided with the greatest convenience.

Features:

1. Small size and light weight, easy to move and energy saving.

2. The hand hold transformer is much smaller than traditional transformer.

3. With long cable it can be satisfied with some special heating requirements.

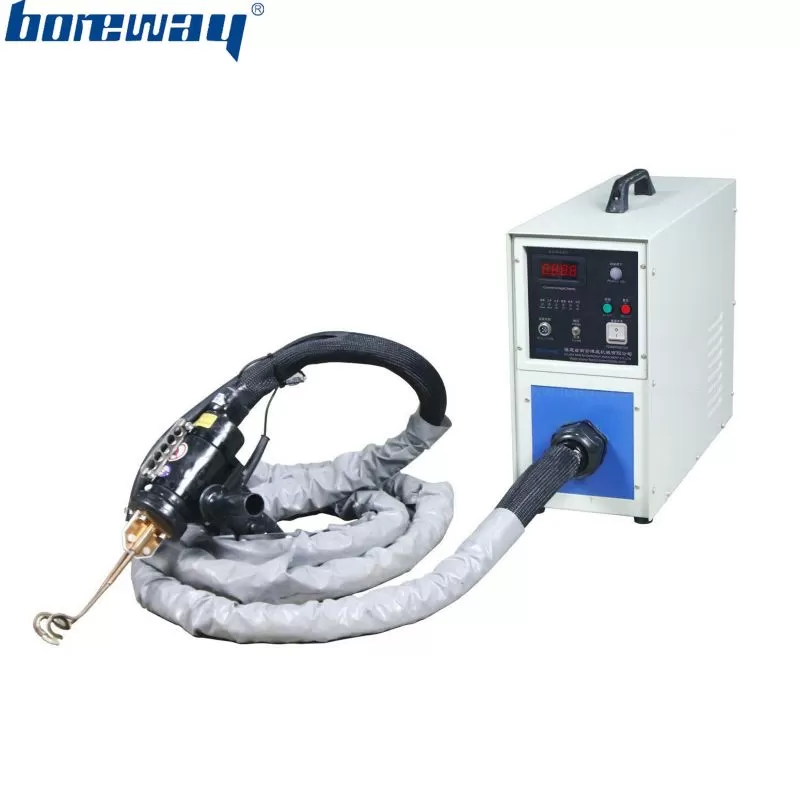

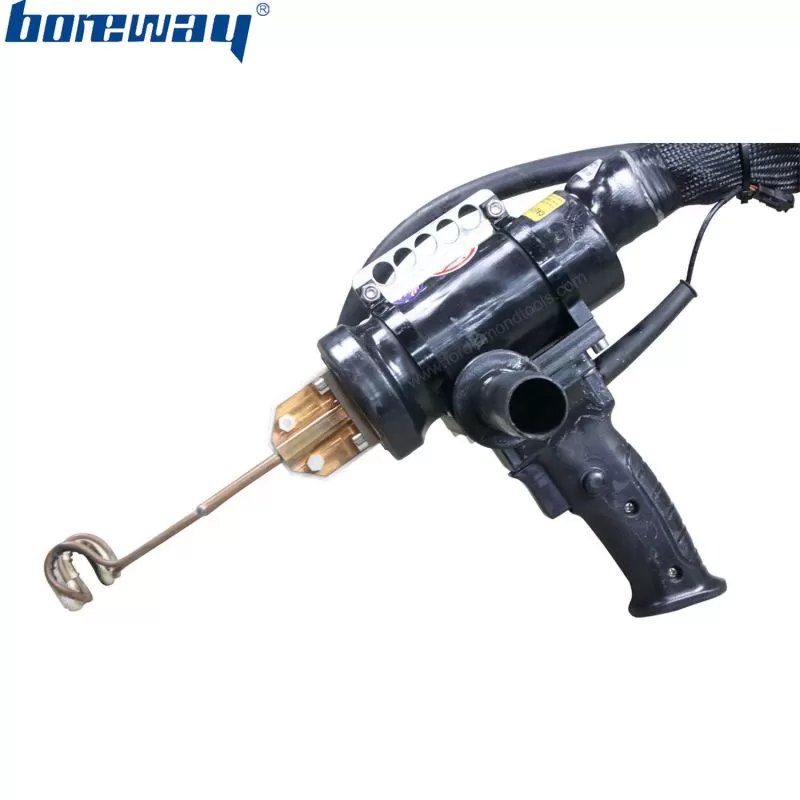

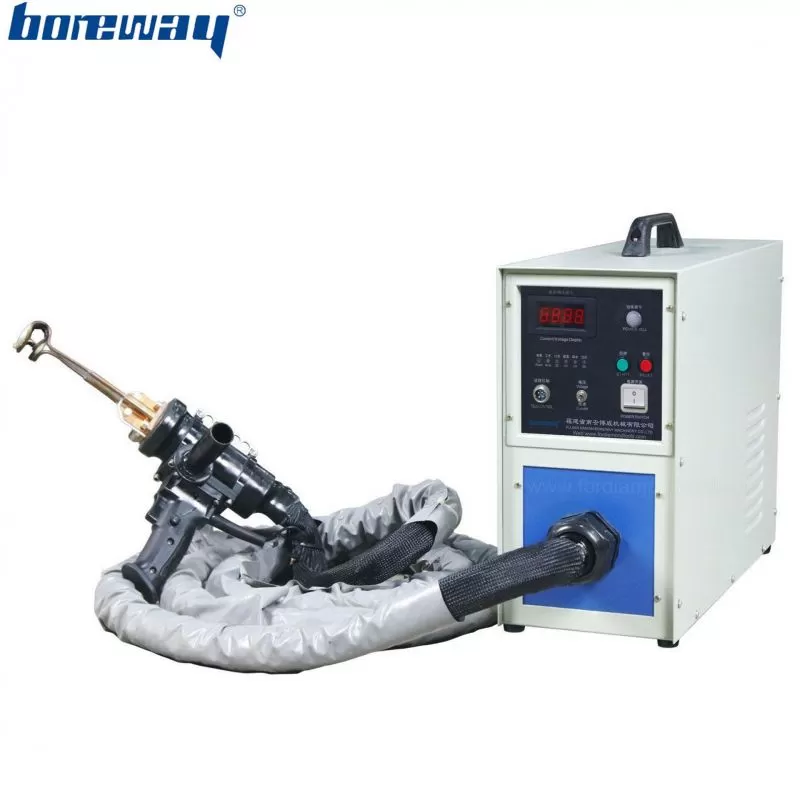

Handheld Induction Heating Machine:
Handheld Induction Heating Machine
Handheld Induction Heating Machine

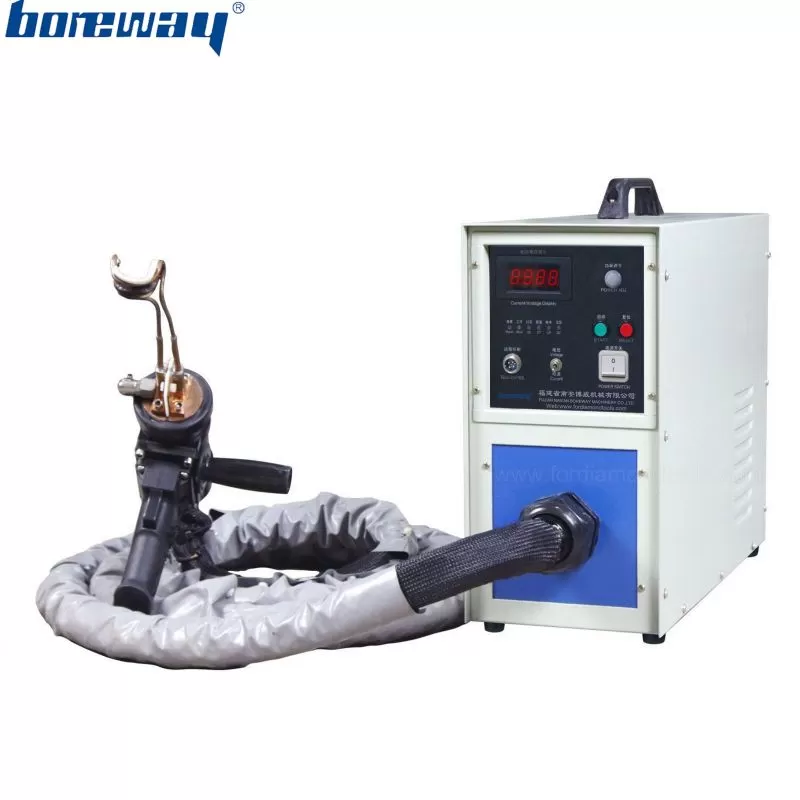

Handheld Induction Heating Machine Panel:

Handheld Induction Heating Machine

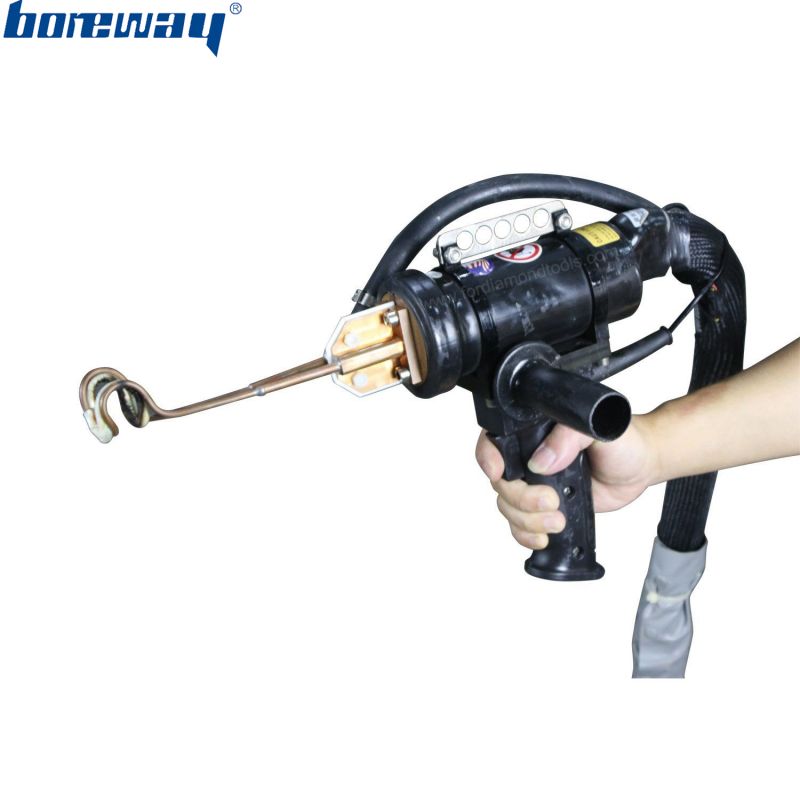

HHT(hand held transformer) is easy to operate, and can be integrated with Robot Arm for automotion production, two buttons to control the machine working:
Handheld Induction Heating MachineHandheld Induction Heating Machine

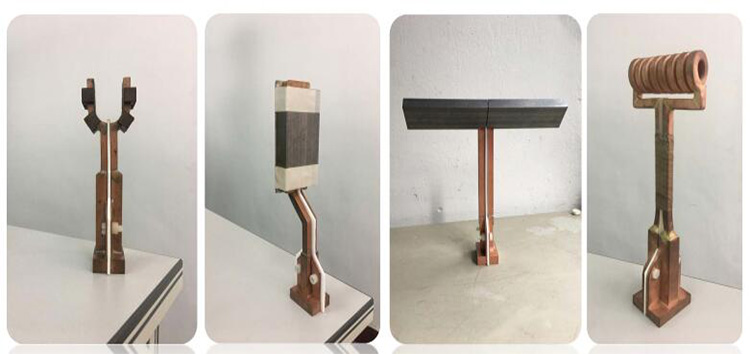

Inductor is important part of induction heating equipment, so is precisely designed, manufactured by good quality material, and tested many times before outgoing, it is detachable, and can be customized accoridng to your workpiece:

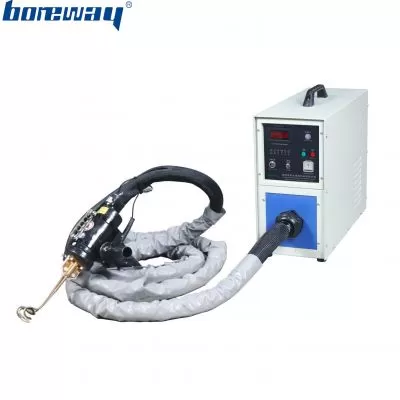

Electromagnetic Energy Saving High Frequency Handheld Induction Heating Machine:
Applications as below:
Handheld Induction Heating Machine
Your application is unique, so you need a unique induction heating solution. We first analyze your application to determine the parameters and requirements for your induction heater. Then we develop your solution by answering questions such as the following:
  • What is the metal to be heated?
  • What is the appropriate frequency?
  • What power level is required?
  • What coil size and shape does the project demand?
The result is a dependable custom induction heating system solution that consistently meets your application requirements.

1. Question: Generic Induction heaters: (one size and design fits all). Is this the case?
Answer: Heating different metals to different temperatures require matching the induction system to the application. Choice of the correct frequency, correct coil size and shape and adequate power level are always important. Often engineers think they can just throw a lot of heating power at a job and lucky results will happen. More likely, the part will not heat to the required temperature or internal components will fail from high circulating voltages.

2. Question: Are domestic suppliers and their engineering staff better able to service and supply parts for Induction units used in a factory floor environments where downtime due to component failure cannot be tolerated?
Answer: Answer is obvious, having a staff to assist you in downtimes is a high priority and something that we take pride in providing for our customers.


We will delivery within seven days of your payment,products are packed in wooden.
We can also pack the Handheld Induction Heating Machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
