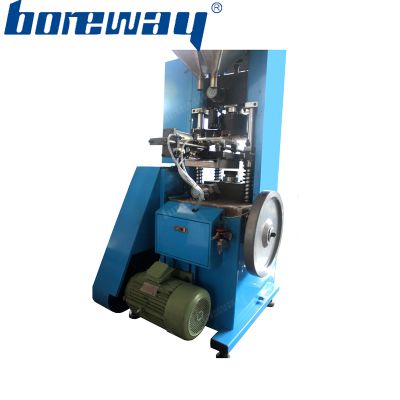

Mechanical Cold Press Machine

Fully automatic mechanical cold press machine for diamond segments BWM_MP60T

Product Specification:

Model :

BMW-MP60T
Motor Power :

4KW
The rated current :

10A
The rated voltage :

380V
Distance of upward :

80MM
Work efficiency :

29Times / Min
Quantity of metal piece per time :

1- 4PC

See Price

May you like

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

35T Mechanical Cold Press Machine for Fan Shape Segment, can be used for pressing of large, medium and small saw blade segment, Fan Shape Segment and some special shape.

60T Pressure Automatic Cold Press Machine for Diamond Segment

Automatic Cold Press Machine for Diamond Segment, can be used for pressing of large, medium and small saw blade segment and some special shape.

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

Automatic Mechanical Cold Press Machine, this Cold Press Machine can be used for pressing of large, medium and small saw blade segment, fan-shape segment and some special shape.

60T Automatic Cold Press Machine For Diamond Segments Production BWM_MP60

Automatic cold press machine for making diamond segment,diamond segment powder cold press machine Suppress a various of metal powers,inculding pre-alloy power,no granulation.

Product Details

Fully automatic mechanical cold press machine for making diamond segments is divided into two different models according to the different pressure (BWM-MP35T and BWM-MP60T). On the basis of the commonly used mechanical cold press machines,We made too much improvement and adjustment. It can be used for pressing of large,medium and small saw blade segment, fan-shape segment,diameter of 14, 12, 10, 8, 6 mm drill bit segment and some special shape segment, etc.

Features:

1. Small and delicate LED work light;

2. The screen is working together with the brake, greatly increasing safety factor for operator;

3. It also can be used for pressing the segment with a base layer of metal powder (welding layer).

4. Feeding the metal powder in the way of mechnical, feeding more twice extraly in a short distance and more accurate;
5. This equipment has a pressure relief device, turning a hand wheel can relieve pressure easily when the machine is stuck;
6. Strengthen wear parts optimization, maintenance rate is much lower than the past similar equipments, increasing service life of the machine;

7.The structure of four guide pillars, feeding the metal powder into the mould with high precision, installing cold press mould is conveniently and simply;

Advantage:

Our Fully Automatic Diamond Segment Cold Press Machine export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia, more than 20 different countries .In these overseas markets, our products enjoy a good reputation, We get good feedbacks about their corresponding test result, and also a long lifespan.

So, we are confident in our products quality. welcome to contact with us, if you have demands on our machine.

All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

Model: BWM-MP60T Fully automatic mechanical cold press machine for diamond segments

Motor Power	4KW
The rated voltage	380V
The rated current	10A
Distance of upward	80MM
Work efficiency	29Times / Min
Weight accuracy of metal piece	±2%
Quantity of metal piece per time	1- 4PC
The largest volume of hopper box	30KGS
Maximum height of metal powder	0.5-30MM
Minimum size of mould cavity	5*5MM
Maximum size of mould cavity	50*70MM
Size of the mould	L(220-250)W(130-150)H(20-40)
Device dimension	L850 * W1150 * H1800 (Face angle)MM
Net Weight	1000KGS

Other specifications can be customized according to buyer's requirements.

Fully automatic mechanical cold press machine for diamond segments

The Details:

Diamond Segment Cold Press Machine Accessories and Tool Box included as below:

This cold press machine can make the following diamond segments,also can make other kinds.

More Pics in details, Pls contact with us :)

cold press machine making diamond segments

Diamond segment Cold Press Machine packed in wooden.
We can also pack the cold press machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date. cold press machine dlivery

Boreway cold press machine packing wooden box

How to make a diamond segment?

1.Mix the powders

2. Cold pressed

3. Fill it in mould

4. Sintered

5.Mould removal

6. Deburring and Inspection

If you need to make diamond segments yourself, you need the following equipments:

1.Cold press machine

2. Sintering machine

3. Mixing machine(the mixer)

4. Graphite Mould + Graphite Mould Frame for Sintering segment

Diamond and other metal powders for segments

Cold pressing mould

We have all the above mentioned equipments

Welcome to Contact with us if you want to know more details of this cold press machine.
