Induction Heating Machine

High Frequency Induction Heating Machine Single Phase 220V 20KW Welding Machine

Product Specification:

Model :

BWM-GP20
Power :

20KW
Machine Weigh :

25Kg
Out current :

200-1050 A
Work frequency :

30-100KHz
Cooling water Pressure :

0.06-0.12 Mpa
Advantage :

High quality and long lifespan

See Price

May you like

China Factory Price 30kw Ultra High Frequency Induction Heating Machine

30kw Ultra High Frequency Induction Heating Machine for Welding,Hardening,Forging,Annealing,Metallurgy Machinery Supplier or Manufacturer-Boreway Machinery Electronic Equipment Manufacturer

20kw Portable_high Frequency Brazing Welding Heating Machine for Quenching

Portable-high Frequency Brazing Welding Heating Machine For Welding,Hardening,Forging,Annealing,Metallurgy Machinery Supplier or Manufacturer-Boreway Machinery Electronic Equipment Manufacturer

5kw Ultrahigh Frequency Induction Heating Equipment/machine For Welding,Hardening,Forging,Annealing , Find Complete Details about 25kva High Frequency Induction Heating Equipment/machine For Welding

45KW High Frequency Induction Heating Machine Hardening Machine equipment Manufa

45KW High Frequency Induction Heating Machine, Find details about China Induction Heating Machine, Induction Heater from High Frequency Induction Heating Machine Hardening Machine

Product Details

High frequency induction heating machine single phase 220V 20KW welding machine

This Induction heating machine,The device uses a series resonant circuit, low-voltage, high-current, high-frequency

power by high frequency transformer output resonance; equipment for our company's first generation products,

using MOSFET power devices and our first eneration variable flow control technology, equipment very simple structure,

high reliability, easy maintenance, low maintenance, customer, and is currently the most widely used one of the devices.

Features:

1. Under the same conditions, saving a double electric energy than traditional ones.
2. Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement,

automatic temperature control, improve the heating quality and simplify the manual operation.
3. With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability

and durability.

The followings are the normal specifications of our 20KW high frequency induction heating machine:

Parameters	Numerical
Input voltage	Single-phase 220V 50HZ or 60HZ
Power	20 KW
Out current	200-1050 A
Work frequency	30-100 KHZ
Rated duty cycle	100%
Power factor	≥95
Temperature of cooling water	≤ 40°C
Cooling water Pressure	0.06-0.12 Mpa
Cooling watering flow	7.5 L/min
Packing Dimension	620mm×290mm×500mm
Machine Weigh	25 KG

The above specifications are for reference, other or special specifications can be ordered by customers.

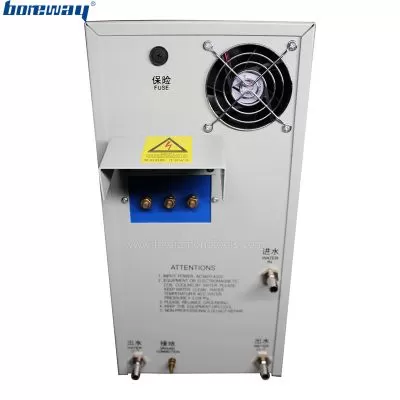

High frequency induction heating machine single phase 220V 20KW welding machine

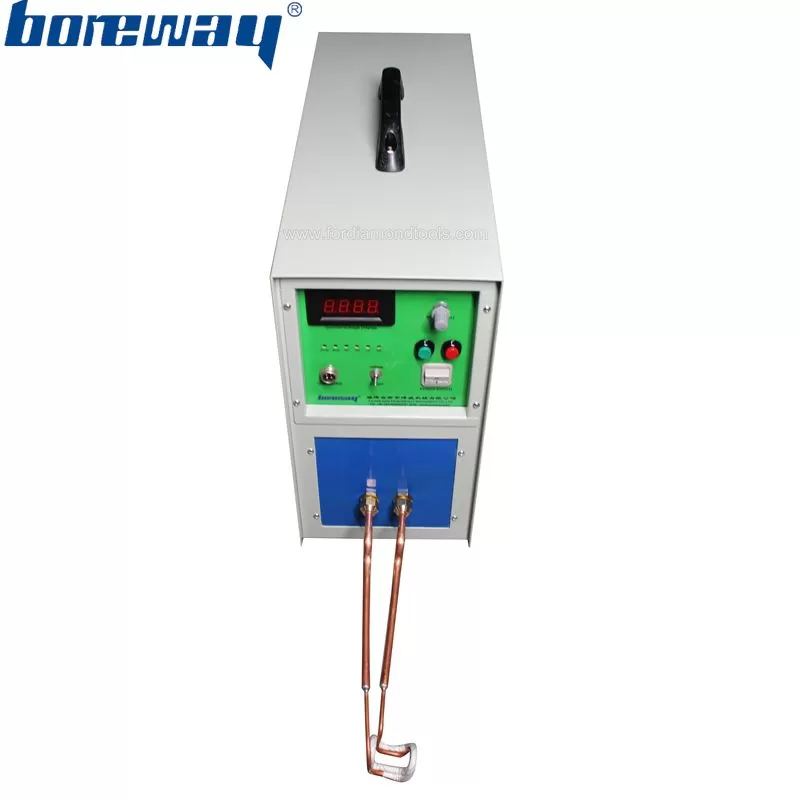

High frequency induction heating machine 20KW single phase 220V welding machine

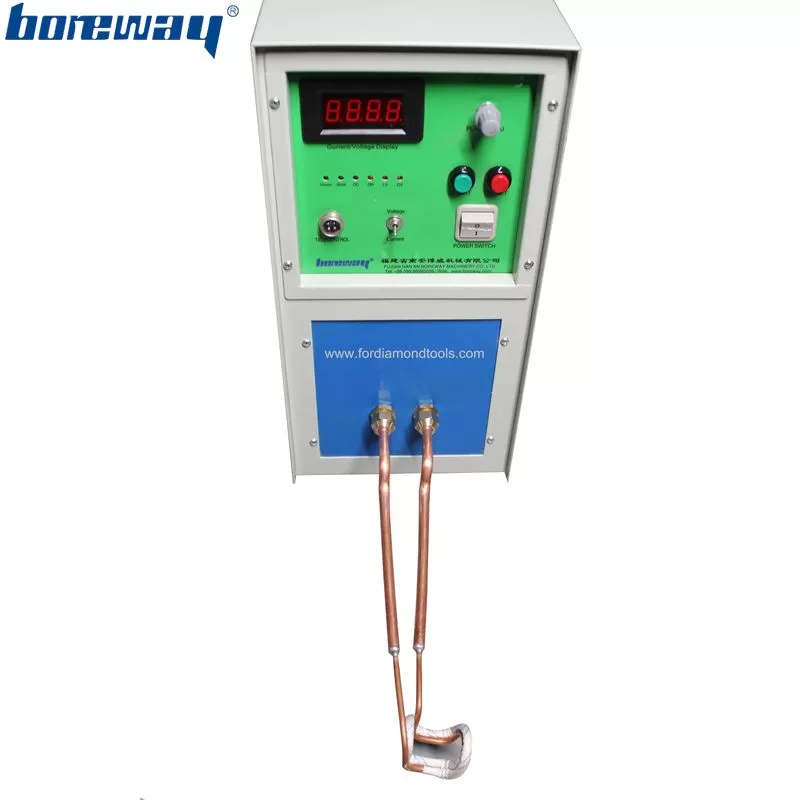

High frequency induction heating machine 20KW single phase 220V welding machine 02

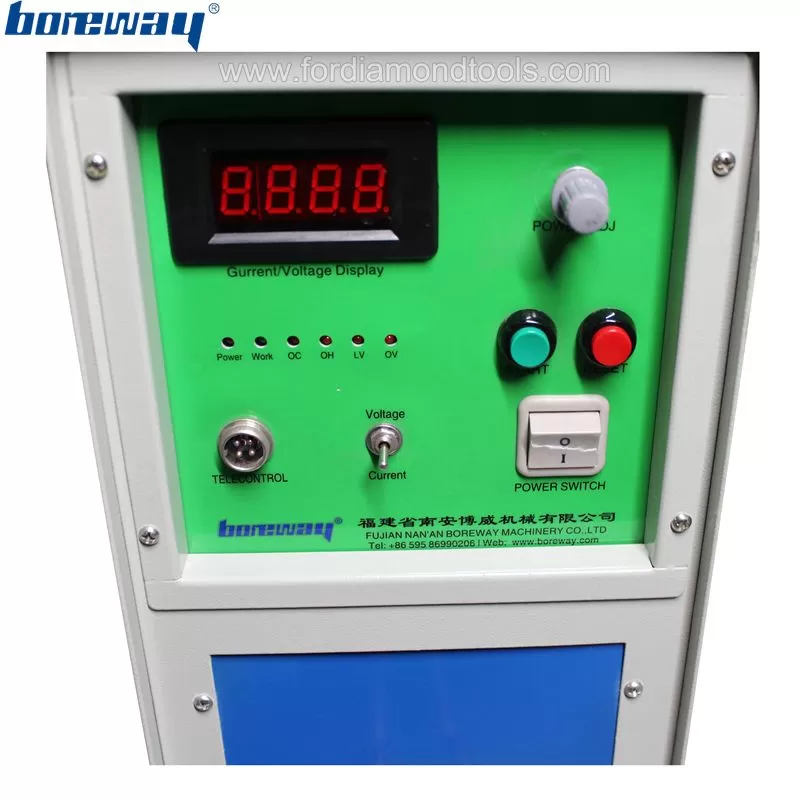

High frequency induction heating machine 20KW single phase 220V welding machine 01

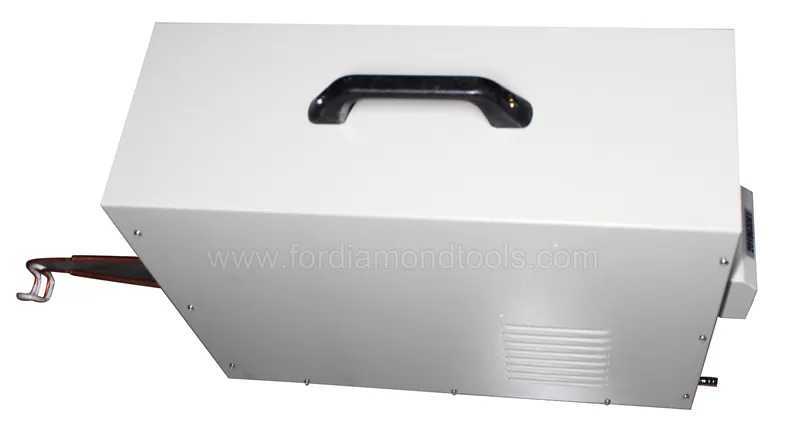

High frequency induction heating machine 20KW single phase 220V welding machine 05

High frequency induction heating machine single phase 220V 20KW welding machine:

Applications as below:

20KW high frequency induction heating welding machine 220V Brazing Welding Machine07

20KW 220V high frequency induction heating welding machine

20KW 220V high frequency induction heating welding machine 01

Your application is unique, so you need a unique induction heating solution. We first analyze your application to determine the parameters and requirements for your induction heater. Then we develop your solution by answering questions such as the following:

What is the metal to be heated?
What is the appropriate frequency?
What power level is required?
What coil size and shape does the project demand?

The result is a dependable custom induction heating system solution that consistently meets your application requirements.

1. Question: Generic Induction heaters: (one size and design fits all). Is this the case?

Answer: Heating different metals to different temperatures require matching the induction system to the application. Choice of the correct frequency, correct coil size and shape and adequate power level are always important. Often engineers think they can just throw a lot of heating power at a job and lucky results will happen. More likely, the part will not heat to the required temperature or internal components will fail from high circulating voltages.

2. Question: Are domestic suppliers and their engineering staff better able to service and supply parts for Induction units used in a factory floor environments where downtime due to component failure cannot be tolerated?

Answer: Answer is obvious, having a staff to assist you in downtimes is a high priority and something that we take pride in providing for our customers.

We will delivery within seven days of your payment,products are packed in wooden.

We can also pack the High Frequency Induction Heating Machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
