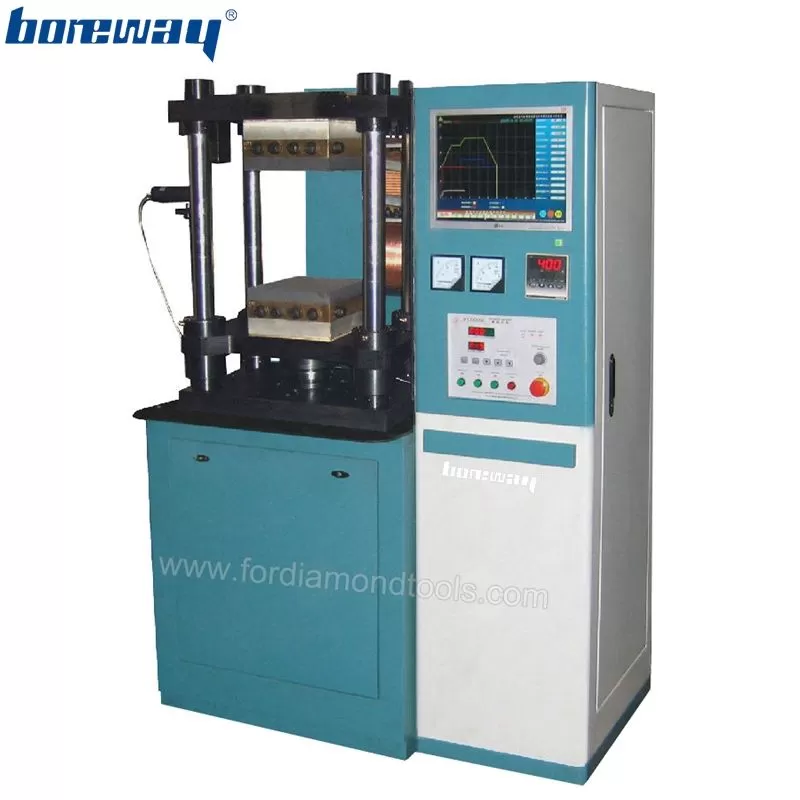

Hot Press Sintering Machine Program Controlled Sintering Press BWM_RYJ2000C

Product Specification:

Model :

BWM-RYJ2000C
Motor power(kw) :

0.75
Rated pressure(KN) :

400KN
Rated oil pressure(MPa) :

20
Rammer area(mm) :

200 X 200
Rated heating current(A) :

16000
Piston dia.× Max stroke :

Φ160×220mm

See Price

May you like

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

35T Mechanical Cold Press Machine for Fan Shape Segment, can be used for pressing of large, medium and small saw blade segment, Fan Shape Segment and some special shape.

60T Pressure Automatic Cold Press Machine for Diamond Segment

Automatic Cold Press Machine for Diamond Segment, can be used for pressing of large, medium and small saw blade segment and some special shape.

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

Automatic Mechanical Cold Press Machine, this Cold Press Machine can be used for pressing of large, medium and small saw blade segment, fan-shape segment and some special shape.

60T Automatic Cold Press Machine For Diamond Segments Production BWM_MP60

Automatic cold press machine for making diamond segment,diamond segment powder cold press machine Suppress a various of metal powers,inculding pre-alloy power,no granulation.

Product Details

Hot Press Sintering Machine Program controlled sintering press machine BWM-RYJ2000C is controlled by microcomputer program. It can save 256 technological curves composed by 13 segments of parameters of pressure, temperature and time. The 15 inches colorful LCD screen can display technical parameters, curves and Chinese menu.

Hot Press Sintering Machine, Program Controlled Sintering Press Machine

Model: BWM-RYJ2000C

Rated pressure:	400 kN
Rated oil pressure:	20 MPa
Rammer area:	200×200 (mm)
Piston dia.× Max stroke：	Φ160×220 mm
Rated power of heating:	80 KVA
Rated current of heating:	16000 A
Motor power:	0.75 KW
Parallelism of rammer:	< 0.1 mm
Temperature measure component :	Infrared temperature measurement
Overall dimension:	1400 x 1400 x 1780（mm）
Net weight:	1600 kg

Other specifications can be customized according to buyer's requirements.

Hot Press Sintering Machine, Program Controlled Sintering Press Machine BWM-RYJ2000C

Hot Press Sintering Machine, Program controlled sintering press machine

Notice:
1. Please provide the processed material before purchase.

2. Before purchase, please provide the model of the machine.

Hot press sintering machine packing in the wooden.

We can also pack the machine according to your requirements.

Special specifications need to be negotiated before the delivery times.
