Making Diamond Segment

Hot Press Sintering Machine

Hydraulic Sintering Press Machine For Diamond Segment BWM_SP80
Hydraulic Sintering Press Machine For Diamond Segment BWM_SP80
Hydraulic Sintering Press Machine For Diamond Segment BWM_SP80
Hydraulic Sintering Press Machine For Diamond Segment BWM_SP80
Hydraulic Sintering Press Machine For Diamond Segment BWM_SP80

Hydraulic Sintering Press Machine For Diamond Segment BWM_SP80

Product Specification:
  • Model :
    BWM-SP80
  • Power :
    380V,50/60Hz
  • Opening height :
    250mm
  • Heating power :
    30KW - 80KW
  • Temp control range :
    400℃-1200℃
  • Rated working pressure :
    0-20 Ton
  • Workbench acreage :
    200mm*200mm
See Price
  1. Product Details


Hydraulic Sintering Machine For Diamond Segment BWM-SP80
is designed for sintering the diamond segments, wire saw beads, the diamond grinding wheel and other kinds of segments for diamond tools.This machine is composed of main frame, hydraulic system, electronic unit,thermometric element and cooling system etc. Depending on the master-slave structural double- computer control system, the intelligent equipment can achieve automatically the whole sintering process according to the craft curves tabulated by customer, including controlling temperature and pressure, adjusting power, together with operating conveniently and controlling high accurately.

Main features
● Intelligent PID temperature adjustor, with high precision.
● Non-contact infrared pyrometer with quickly response,laser positioning device.
● Automatically adjusting temperature, pressure and time, also can adjust them manually.
 Controlling the pressure and the temperature in the closed loop way, increasing the pressure and temperature according to the slope.
● Computer with storing possibility of 120/100 programs, each programe including 15 steps heating and pressure curves.
● Automatically diagnosing faults.
● Color TFT screen,real-time displaying process curves. Offering Chinese/English operating interface.
● Controlling and displaying the size of segment.   ( Optional )
● Optional thermocouple.

Hydraulic Sintering Machine For Diamond Segment : Model Number: BWM-SP80
                                      Parameter
Power 380V,50/60Hz
Rated working pressure 0-20 Ton
Heating power 30KW - 80KW
Opening height 250 mm
Workbench acreage 200mm*200mm
Temp control range 400℃-1200℃
Volume 820mm*1450mm*2100mm
Weight 1300 Kg

We can also provide other specifications upon clients' demands.

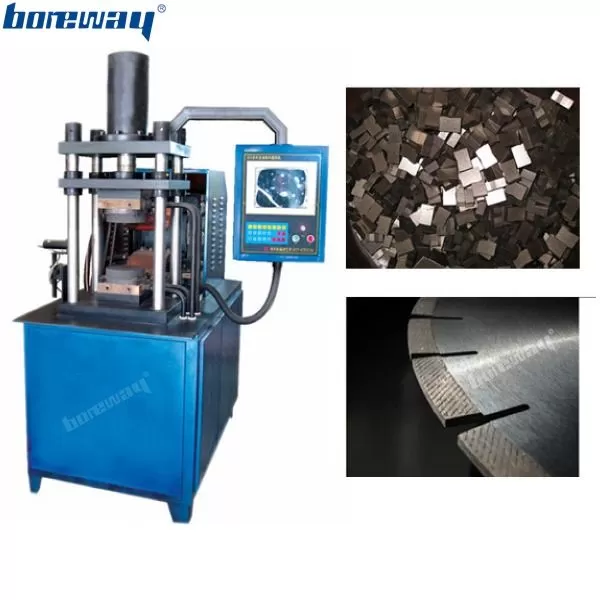

Hydraulic Sintering Machine For Diamond Segment ,Hot Press Sintering Machine BWM-SP80

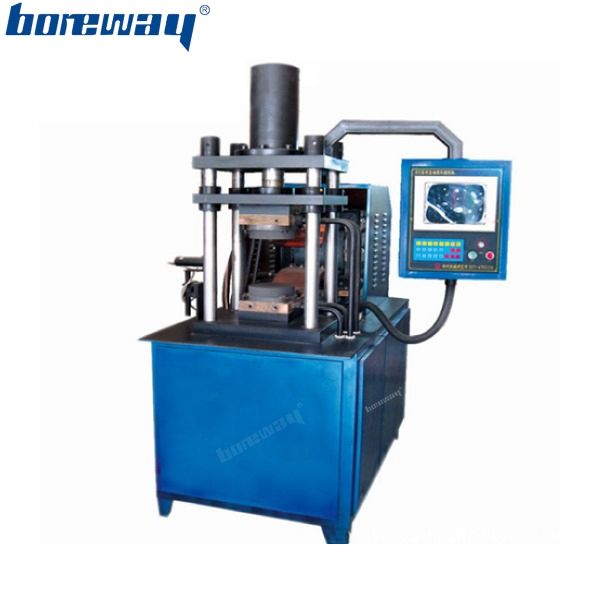

Hydraulic Sintering Machine for diamond segment BWM-SP80

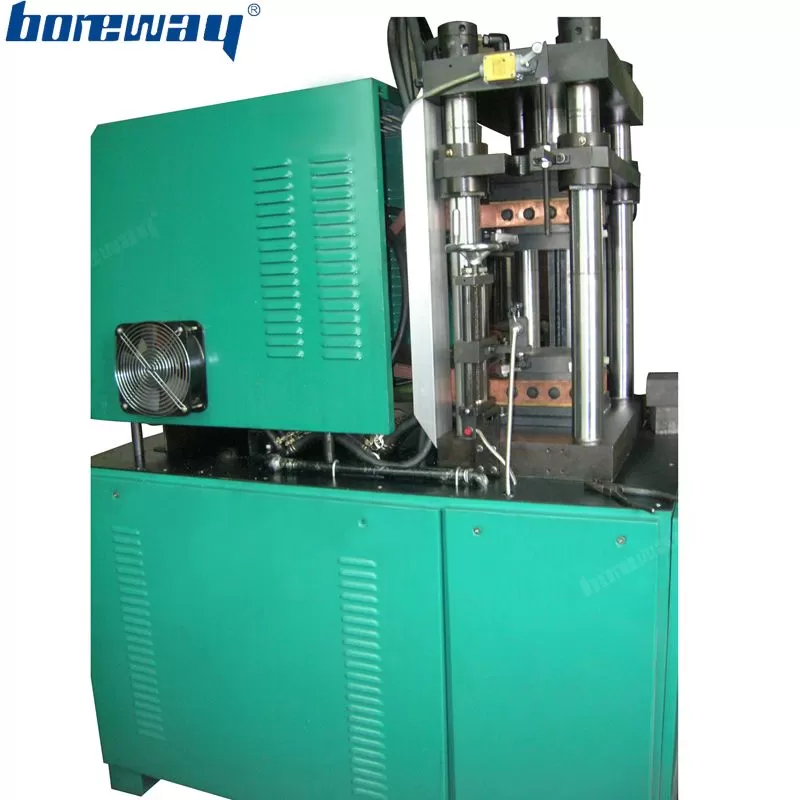

Hydraulic Sintering Machine for diamond segment BWM-SP80 (1)

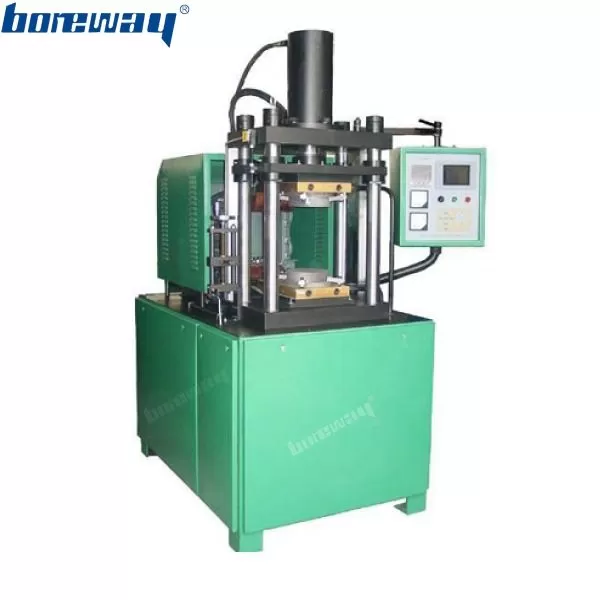

Hydraulic Sintering Machine for diamond segment BWM-SP80 (2)

Hydraulic Sintering Machine for diamond segment BWM-SP80 (3)

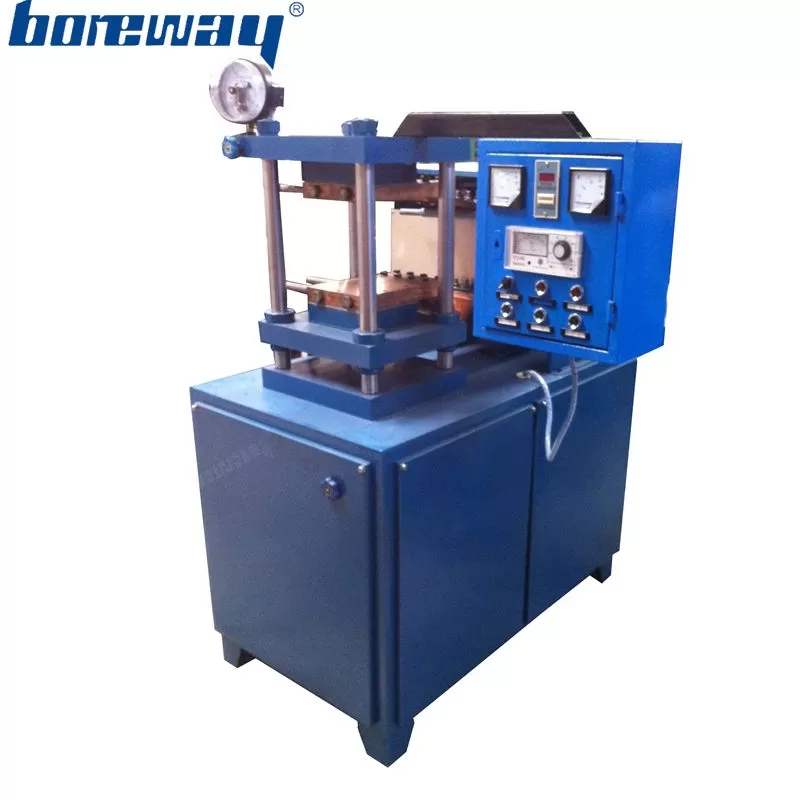

Other model, BWM-SP50, Semi-automatic Sintering Machine for pressing gang saw segment and saw blade segment

Semi-automatic Sintering Machine for pressing gang saw segment


Hydraulic Sintering Machine For Diamond Segment Packing in the wooden case.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
