Hydrostatic Press Machine For Making Diamond Segment BWM_HP60

Product Specification:

Gross Power :

7.5kw
Voltage :

380V
Working current :

18A
Oil tank volume :

230L
Control system voltage :

24V
Pressure control range :

0-60Ton
Control system :

Industry PLC and touch screen

See Price

May you like

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

35T Mechanical Cold Press Machine for Fan Shape Segment, can be used for pressing of large, medium and small saw blade segment, Fan Shape Segment and some special shape.

60T Pressure Automatic Cold Press Machine for Diamond Segment

Automatic Cold Press Machine for Diamond Segment, can be used for pressing of large, medium and small saw blade segment and some special shape.

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

Automatic Mechanical Cold Press Machine, this Cold Press Machine can be used for pressing of large, medium and small saw blade segment, fan-shape segment and some special shape.

60T Automatic Cold Press Machine For Diamond Segments Production BWM_MP60

Automatic cold press machine for making diamond segment,diamond segment powder cold press machine Suppress a various of metal powers,inculding pre-alloy power,no granulation.

Product Details

Hydrostatic Press Machine For Diamond Segment Production BWM-HP60

1. Its working pressure is controled by pressure switch.

2. We provide the superior and professional sale service.

3. It uses positive displacement and designs automatic feeding.

4. Easily operation , it is relaxed for a person to operate 3-10 sets .

5. Advantages: high precision,reliable performance,stable compressor.

6. The operation system uses touch screen, very intuitive and understandable.

7. We have registered our own brand. Therefore we ensure the quality about the products we produce.

8. Every time it can suppress 1-6 pieces( following with mould changes) , to improve the production efficiency.

9. The machine specializes in producing gand saw segments,diamond segments and abnormal shape segments.

10.We have strong and professional techniques in our products for cutting kind of stones.and we have satisfied

after service we treasure every client .and we keep a stable cooperation relationship with our clients

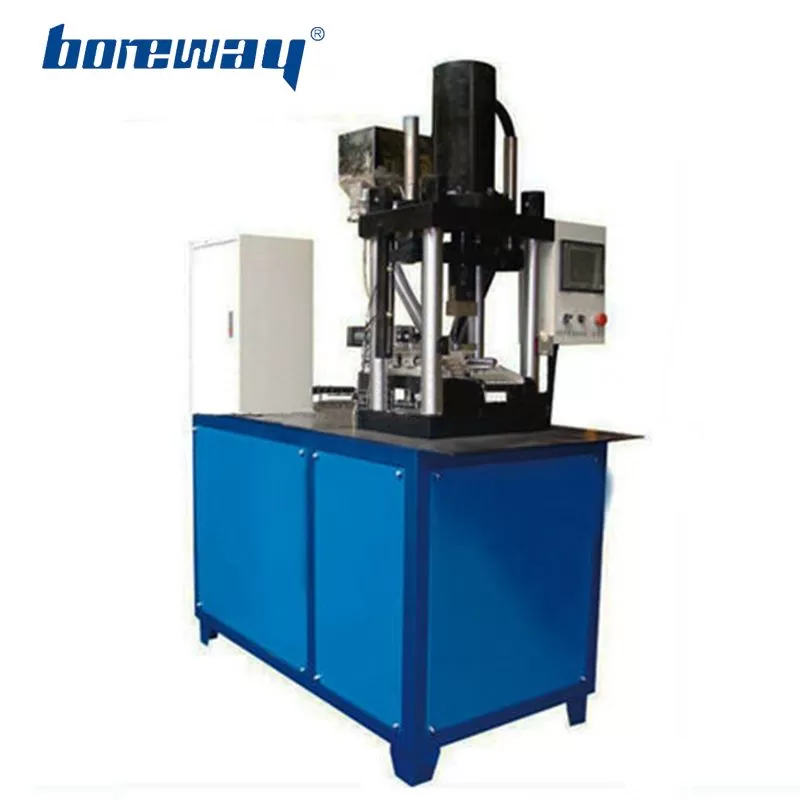

Hydrostatic Press Machine for making diamond segment ,Intelligent hydraulic cold press machine

The following is our normal specification of the hydraulic automatic tablet press machine

Model Number: BWM-HP60

Denomination:
Gross power			7.5kw
Voltage			380V
Working current			18A
Control system voltage			24V
Pressure control range			0-60Ton
Oil tank volume			230L
Suppress range			Min weight 0.5g(including diamond powder)
			Min weight 0.4g(not including powder)
			Max weight 30g(following with mould)
Control system			Industry PLC and touch screen
Volume			760mm1600mm2300mm (LWH)
Weight			1400kg
Error range			±0.02g/pcs
Production quantity			1200times/h

We can also provide other specifications upon clients' demands.

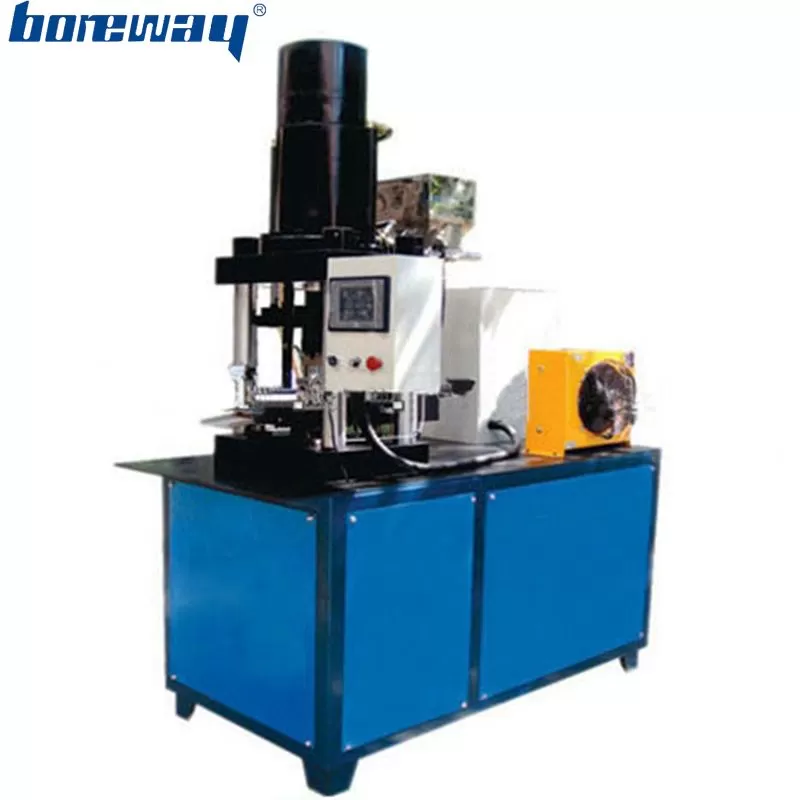

Hydrostatic Press Machine For Diamond Segment , Intelligent Hydraulic Cold Press Machine BWM-HP60

Model: BWM-HP40 Intelligent hydraulic press machine for diamond segment

Model BWM-HP100 Automatic Hydraulic cold press machine

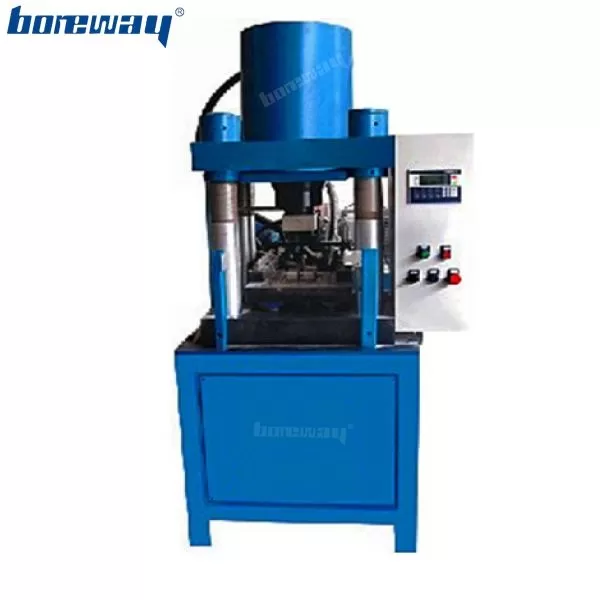

Automatic Hydraulic Cold Press Machine for diamond segments

Hydraulic Cold Press Machine Packing in the wooden case.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
