Hot Press Sintering Machine
Program Controlled Sintering Press Machine BWM_RYJ2000P
Product Specification:
-
Model :BWM-RYJ2000P
-
Motor power(kw) :0.75
-
Rated pressure(KN) :400KN
-
Rated oil pressure(MPa) :20
-
Rammer area(mm) :200 X 200
-
Rated heating current(A) :16000
-
Piston dia.× Max stroke :Φ160×220mm
May you like
- Product Details

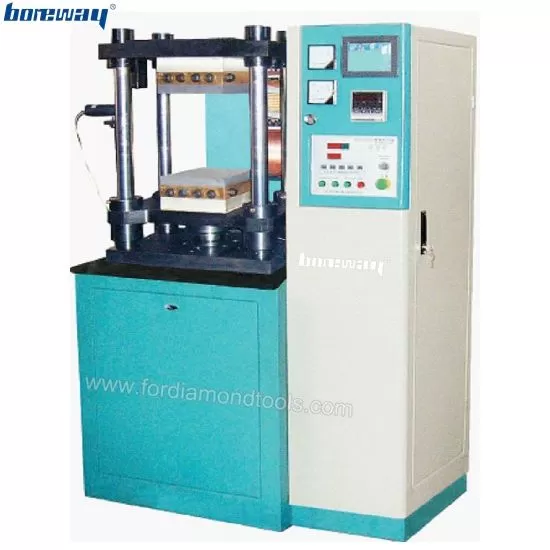

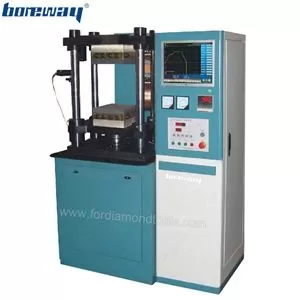

Program Controlled Sintering Press Machine BWM-RYJ2000P Hot Press Sintering Machine is controlled by PLC program with touch screen, can save 100 groups preset pressure and temperature curves. It is widely used for making different tppes of hot press sintered products.
Program Controlled Sintering Press Machine, Hot Press Sintering Machine
| Model | BWM-RYJ2000P | ||||||
| Rated pressure(KN) | 400KN | ||||||
| Rated oil pressure(MPa) | 20 | ||||||
| Piston dia.× Max stroke | Φ160×220mm | ||||||
| Rammer area(mm) | 200 X 200 | ||||||
| Rated power of heating(kw) | 80KVA Dry type transformer | ||||||
| Rated heating current(A) | 16000 | ||||||
| Motor power(kw) | 0.75 | ||||||
| Parallelis of rammer(mm) | ＜0.1 | ||||||
| Temperature measure component | infrared temperature measurement | ||||||
| Overall dimension(mm) | 1400 x 1400 x 1780（mm） | ||||||
| Net weight(kg) | 1600 | ||||||
Other specifications can be customized according to buyer's requirements.
Program Controlled Sintering Press Machine, Hot Press Sintering Machine
Notice:
1. Please provide the processed material before purchase.
1. Please provide the processed material before purchase.
2. Before purchase, please provide the model of the machine.
Program Controlled Sintering Press Machine packing in the wooden.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
Special specifications need to be negotiated before the delivery times.
