Home / Products / Making Diamond Segment / Hot Press Sintering Machine

Hot Press Sintering Machine

Semi_automatic Sintering Machine For Pressing Gang Saw Segment BWM_SP50

Semi_automatic Sintering Machine For Pressing Gang Saw Segment BWM_SP50

Product Specification:

Model Number :

BWM-SP50
Rated working pressure :

0-20ton
Workbench acreage :

180*180(mm)
Temp control range :

0°C-1100°C
Heating power :

30kw-50kw
Opening height :

220(mm)
Weight :

1000kgs

See Price

May you like

Boreway 35T Mechanical Cold Press Machine for Fan Shape Segment

35T Mechanical Cold Press Machine for Fan Shape Segment, can be used for pressing of large, medium and small saw blade segment, Fan Shape Segment and some special shape.

60T Pressure Automatic Cold Press Machine for Diamond Segment

Automatic Cold Press Machine for Diamond Segment, can be used for pressing of large, medium and small saw blade segment and some special shape.

BWM_MP35T Automatic Diamond Segment Cold Press Machine With High Work Efficiency

Automatic Mechanical Cold Press Machine, this Cold Press Machine can be used for pressing of large, medium and small saw blade segment, fan-shape segment and some special shape.

60T Automatic Cold Press Machine For Diamond Segments Production BWM_MP60

Automatic cold press machine for making diamond segment,diamond segment powder cold press machine Suppress a various of metal powers,inculding pre-alloy power,no granulation.

Product Details

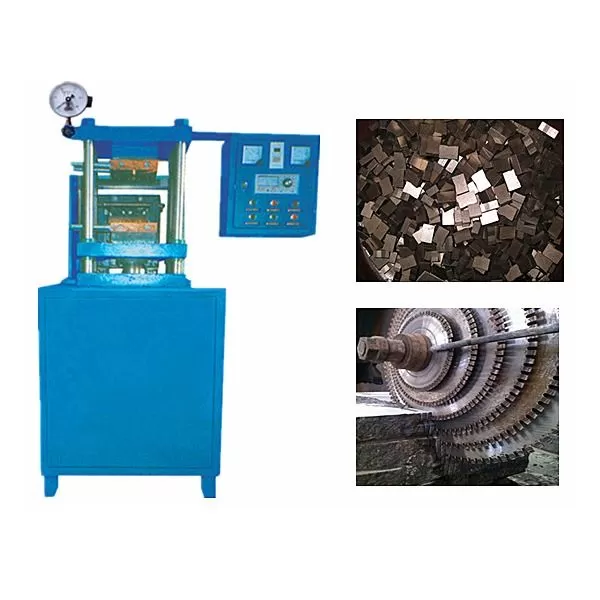

Semi-automatic Sintering Machine For Pressing Gang Saw Segment BWM-SP50

Sintering press machine with High precision, Reliable performance, Stable compressure.

1. Working pressure is controlled by pressure switch.

2. The machine can finish four pieces at the same time.

3. It uses positive displacement and designs automatic feeding.

4. The operation system uses touch screen ,intuitive and understandable and easy operation .

5. The machine specializes in pressing gang saw segment.(It can finish six pieces at the same time,

of course different segment needs to be matched corresponding mould.)

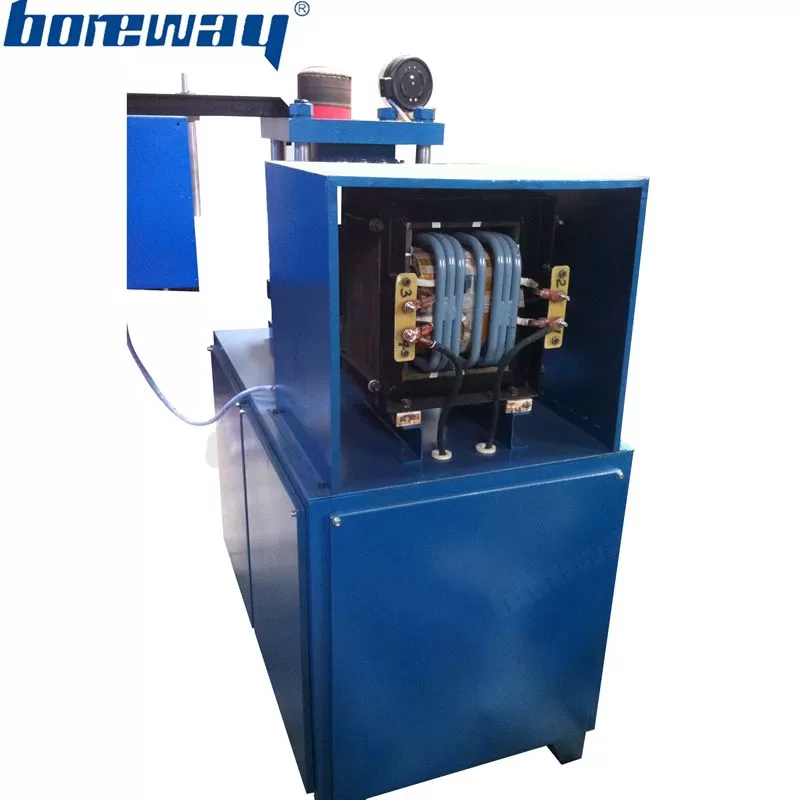

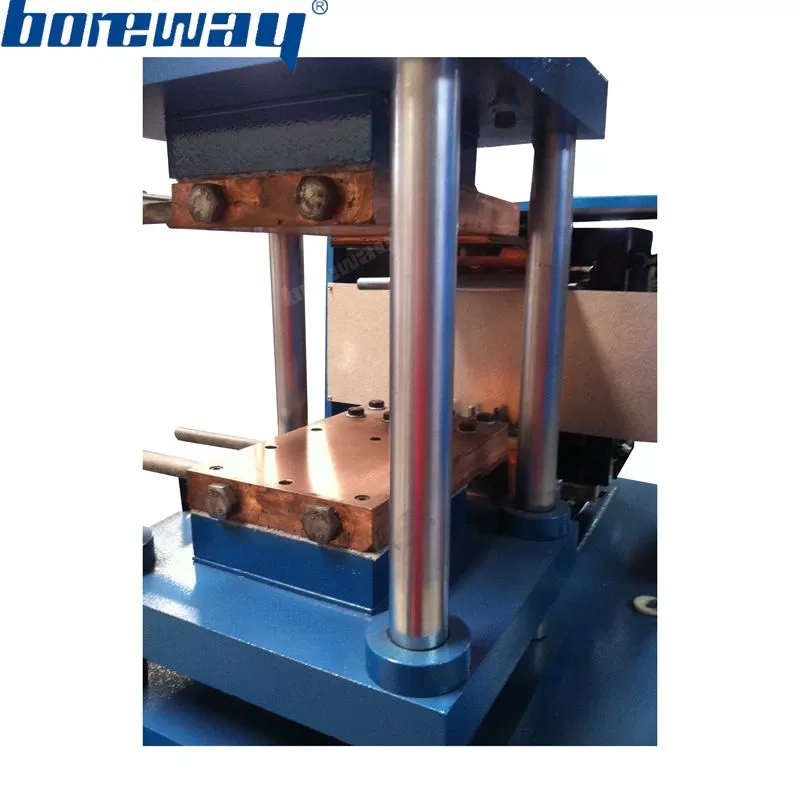

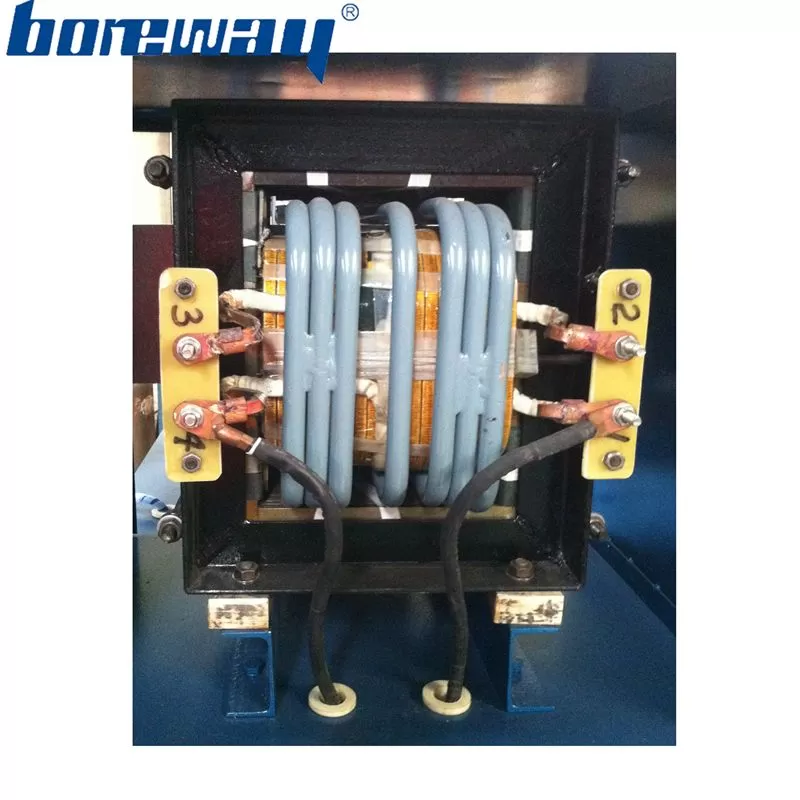

Semi-automatic Sintering Machine for pressing gang saw segment BWM-SP50

The following is our normal specification of the sintering press machine.

Denomination:
Rated working pressure			0-20ton
Heating power			30kw-50kw
Opening height			220(mm)
Workbench acreage			180*180(mm)
Temp control range			0°C-1100°C
Volume			70014001800(mm)
Weight			1000kg

We can also provide other specifications upon clients' demands.

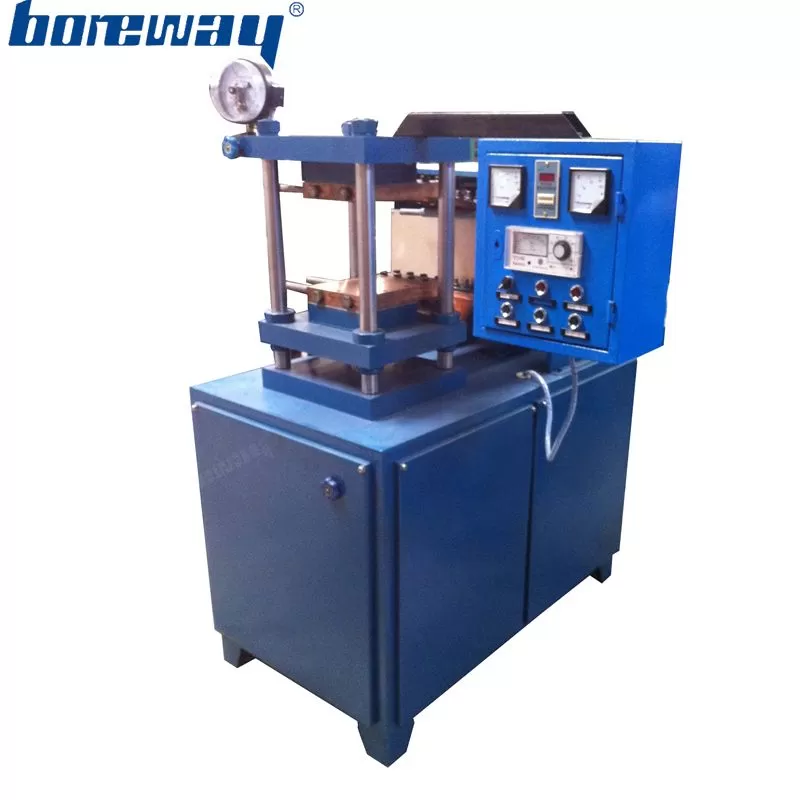

Semi-automatic Sintering Press Machine For Pressing Gang Saw Segment BWM-SP50

Model: BWM-SP80 Hydraulic Sintering Machine for diamond segment

Hot Press Sintering Machine for making diamond segment

Semi-automatic Sintering Machine for pressing gang saw segment Packing in the wooden case.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated for delivery times.
