Induction Heating Machine

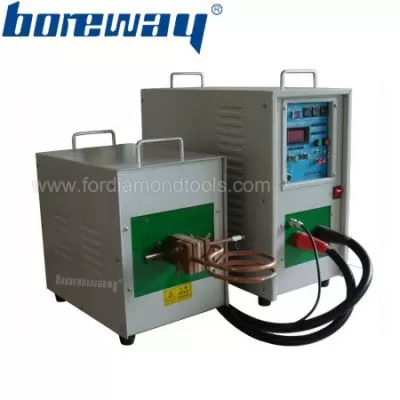

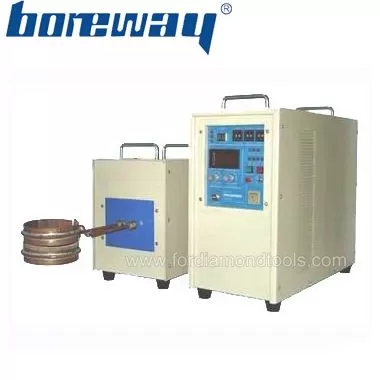

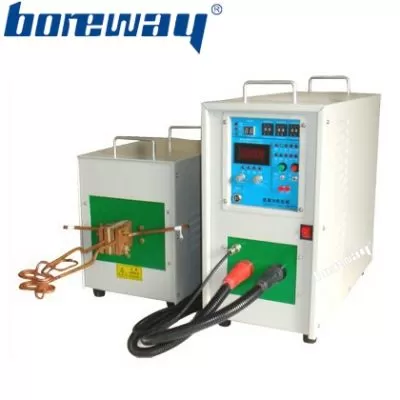

Three Phases 380V 40KW High Frequency Induction Heating Machine
Input power :40KW
Out current :200-1800A
Work voltage :340-430V
Work frequency :30-80KHZ
Cooling watering flow :7.3L/min
Input voltage :3phase 380V 50HZ or 60H
Cooling water Pressure :0.06Mpa-0.12Mpa
- Product Details
Three phases 380V 40KW high frequency induction heating machine,this high frequency induction heating equipment is particularly suitable for heat treatment and quenching, melting, annealing, the metal through the heat forging, extrusion, welding, brazing.
One -- Heat treatment industry
1, a variety of steam, Motorcycle high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, various small shaft crank pin, a variety of rocker, rocker shaft, high-frequency hardening heat treatment.
2, the hardware high-frequency hardening heat treatment, such as pliers, hammers, strong pliers, wrenches.
3, hydraulic components such as: piston pump plunger, rotor pump rotor, conversion shaft of the valves, gear of gear pump high frequency quenching.
4, various electric tools gear shaft of the high-frequency hardening heat treatment.
5, a variety of carpentry tools, such as: axes, planing and other heat treatment.
Two -- Forging industry
1, plate heating, bending and forming.
2, standard parts, fasteners through the hot forming.
3, the hardware tools through heat, such as pliers, wrenches and other heat through hot forming.
4, taper shank drill rod extrusion prospecting.
5, the pipe through the hot forming, such as bends and so on.
Three -- Brazing
1, carbide cutting tools welding. Such as turning, milling, cutter knife.
2, the diamond saw blade welding. Such as diamond saw blade, abrasive, jagged welding. Exploration drill bit used in welding, such as word drill, drill welding horns.
3, brass, copper
Four -- Smelting
Steel,iron, non-ferrous metals,graphite crucible smelting
● Adopts the lateat MOSFET,IGBT power units and frequency conversion control techniques with high efficiency,low energy consumption and higher output power.
● With constant current and constant power control function to greatly optimize the heating process of metals,realizeefficient and fast heating,and fully exert the superiority of the products.
● Power consumption is half of traditional electron tube high frequency induction heating equipments under same conditions.
● With 100%load design,can work in 24 hours without stop.Infrared temperature detector can be equipped to realiz realize the automatic control of temperature,improve heating quality and simplify manual operation.
● With heating-insulating-cooling three stages function setting,the heating and insulating time required can be get to accommodate to the batched and repeated heating situations.
● With multiple status display of overflow,overvoltage,low water,phase failure and load malfunction,providing higher reliability and sustainability.
● Select power supply according to the power and frequency.The higher the frequency,the shallower the heating depth,and the lower the frequency,the better the diathermancy.
Three phases 380V 40KW High frequency induction heating machine：
|The main technical parameters|
|Input voltage||Three-phase 380V 50HZ or 60HZ|
|Rated duty cycle||100%|
|Temperature of cooling water||≤ 40°C|
|Cooling water Pressure||0.06Mpa-0.12Mpa|
|Cooling watering flow||7.3L/min|
|Machine Main Dimension||550×270×560mm|
Three phases 380V 40KW high frequency induction heating machine：
Three phases 380V 40KW high frequency induction heating machine packing in the wooden case.We can also pack the weighing machine according to buyer's requirements.Special specifications need to be negotiated with us before the delivery date.
