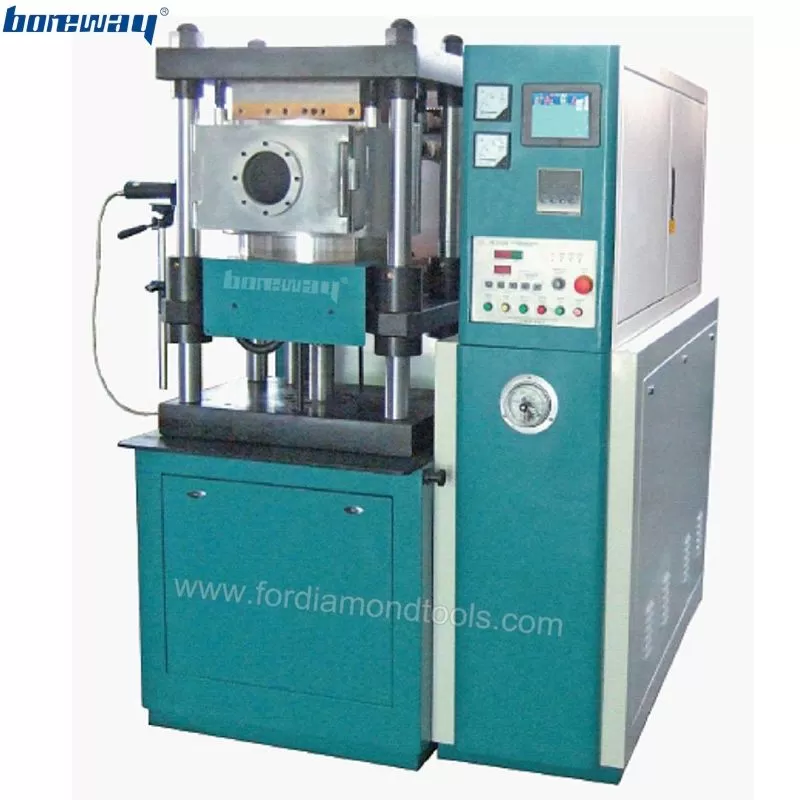

Vacuum Hot Press Sintering Machine
Vacuum Hot Press Sintering Machine Program Controlled BWM_RYJ2000Z
Product Specification:
-
Model :BWM-RYJ2000Z
-
Heating power :60 KVA
-
Rated pressure :160 KN
-
Rammer size :Φ220 (mm)
-
Rated oil pressure :20MPa
-
Rated vacuum degree :70mmHg
May you like
- Product Details
Vacuum Hot Press Sintering Machine, Program controlled sintering press machine BWM-RYJ2000Z
It is controlled by PLC and it can preset 256 curves any of which includes 12 sets parameters of temperature, pressure and time. So it can reliably accomplish movement program, movement display, malfunction detection and protection.
The precise temperature and pressure control system, which is composed by singlechip, intellectualized temperature
controller with computer, infrared temperature detector and high-power controllable silicon, makes production temperature
execute according to preset curves. Pressure controlled by electric-hydraulic proportion valve can be set with different degrees and automatically switch according to temperature. This machine can be vacuum or fill with protective gas.
Vacuum Hot Press Sintering Machine Program controlled sintering press machine
Model: BWM-RYJ2000Z
| Rated pressure: | 160 KN |
| Rated oil pressure: | 20MPa |
| Rated vacuum degree: | 70mmHg |
| Piston diameter×stroke： | Φ100×270 (mm) |
| Rammer size: | Φ220 (mm) |
| Minimum mould height: | 120 mm after pressing |
| Heating power: | 60 KVA |
| Temperature measure component: | Infrared temperature measurement |
| Parallelism of rammer: | < 0.1mm |
| Motor power: | 0.75KW |
| Overall dimension: | 1420×1300×1700 (mm) |
| Net weight: | 1500kg |
Other specifications can be customized according to buyer's requirements.
Vacuum Hot Press Sintering Machine Program controlled sintering press machine
Notice:
1. Please provide the processed material before purchase.
1. Please provide the processed material before purchase.
2. Before purchase, please provide the model of the machine.
Vacuum Hot Press Sintering Machine Program Controlled packing in the wooden.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
Special specifications need to be negotiated before the delivery times.
