Beaded Automatic Sharpening Machine For Grinding Single Wire Saw Beads
Beaded Automatic Sharpening Machine For Grinding Single Wire Saw Beads

Beaded Automatic Sharpening Machine For Grinding Single Wire Saw Beads

Product Specification:
  • Model :
    BWM-CK11-5
  • Weight :
    800kg
  • Power :
    3.5KVA
  • Efficiency :
    520pcs/h
  • Electric :
    AC380V three phases
  • Beads specification :
    Lenght 9-11mm
  • Beads specification :
    Dimeter φ 8-φ12
See Price
  1. Product Details

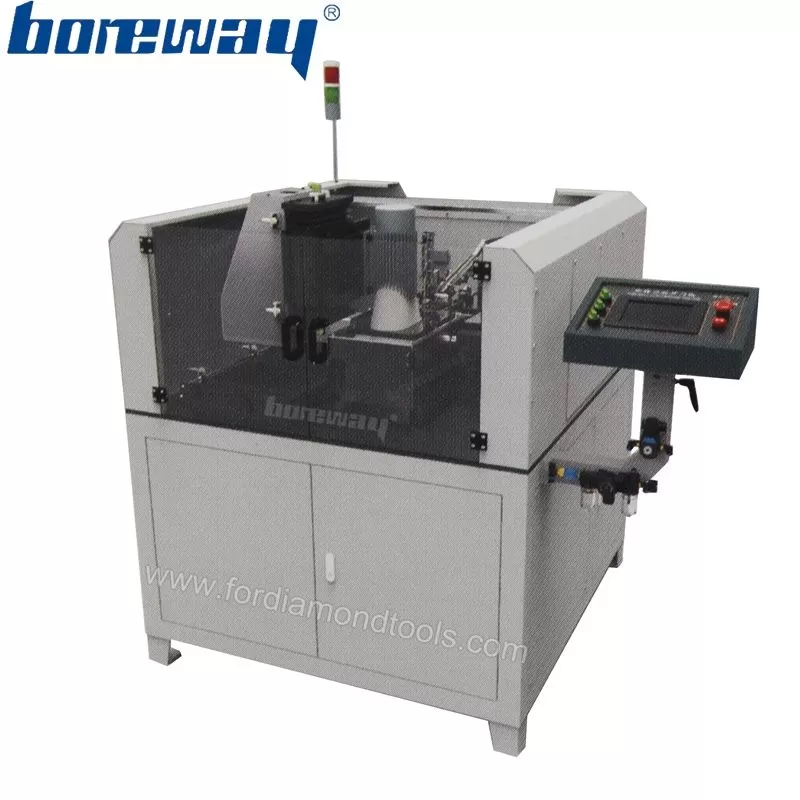

Beaded Automatic Sharpening Machine for grinding single wire saw beads
This machine is designed to expose diamond of sintered wire beads automatically with very high performance dual. Abrasive wheel system allows to remove plastic/rubber and sharpening wire beads very effectively.

The automatic bead-string single-bead sharpening machine is developed to replace the manual bead-string sharpening machine. This wire beads sharpening machine equipment is simple and convenient to operate, closed and dust-proof, with good cutting effect and high efficiency. It is a powerful assistant for modern enterprises to improve their production efficiency!


Features:
1. Depth of edge can be set
2. Beads automatic feeding and clamp
3. Automatic match, one key operation
4. Beads automatic points the direction
5. PLC and servo motor precision control of  feed

Beaded Automatic Sharpening Machine for grinding single wire saw beads
Parameter
Type: BWM-CK11-5
Power: 3.5KVA
Electric: AC380V three phases
Efficiency: 520pcs/h
Beads specification: Dimeter φ 8-φ12
Lenght 9-11mm
Wheel size: Dimeter200mm
Thickness 25mm
Mounting holes 32mm
Size: Lenght 1580mm
Width 1200mm
Height 1385mm
Weight: 800kg
Other specifications can be customized according to buyer's requirements.

Beaded Automatic Sharpening Machine for grinding single wire saw beads
Beaded Automatic Sharpening Machine for grinding single wire saw beads
Beaded Automatic Sharpening Machine​ packing in the wooden.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
