Making Diamond Wire Saw
Drilling Tapping Machine for diamond wire saw beads BWM_ART7_12
Product Specification:
-
Model :BWM-ART7-12
-
Power :2KVA
-
Efficiency :500PCS/H
-
Weight :About700Kg
-
Air Compressed :6-8bar
-
Processing Specification :7-12
-
Electric :AC380V three-phase 50Hz
May you like
- Product Details

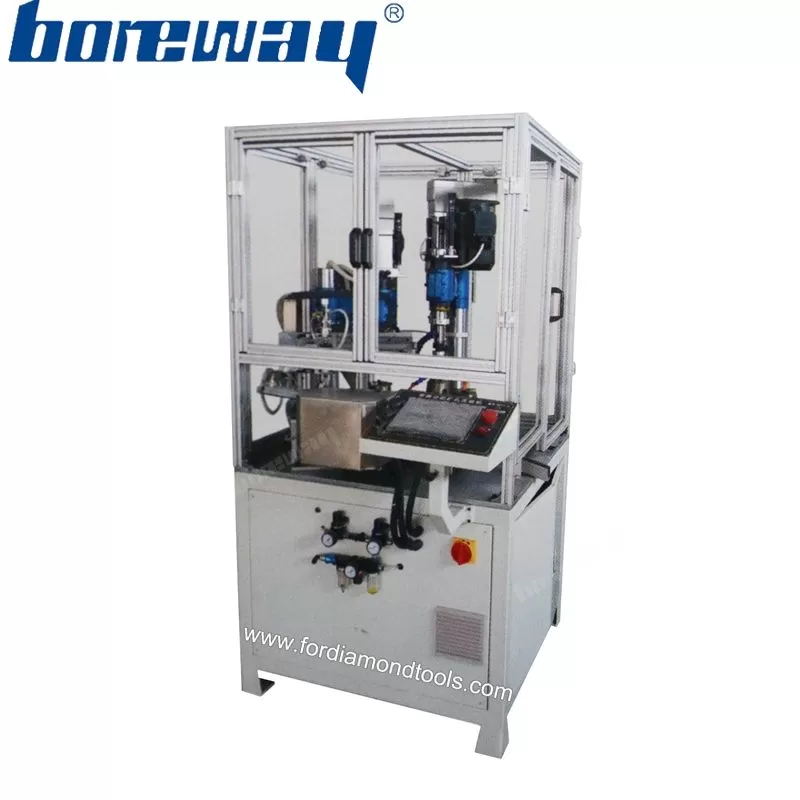

Drilling Tapping Machine for diamond wire saw beads BWM-ART7-12
| Product Description: |
Drilling Tapping Machine for diamond wire saw beads BWM-ART7-12
Drilling and tapping of product at the same time, reduce risk of misalignment, taps can use longer time.
Remarks: This machine is used for enlarging and tapping of single bead string. It can reduce the problem of different centers in separate enlarging and tapping, and increase the life of tap.
System Performance:
Bead size: 7.3-11.6
Average efficiency: 8s per unit, 450Pcs/h
Cooling system: 250L/min 1"pipe joint (cutting fluid)
Taper consumption: 700 Pcs per unit (for reference)
| Specification: |
Drilling Tapping Machine for diamond wire saw beads BWM-ART7-12
Technical parameters
|
TYPE: |
ART7-12 |
EFFICIENCY: |
500PCS/H |
|
POWER: |
2KVA |
PROCESSING SPEC.: |
7-12 |
|
ELECTRIC: |
AC380V three-phase 50Hz |
MACHINE SIZE: |
Length1400mm Width1000mm Height1700mm |
|
AIR COMPRESSED: |
6-8BAR |
WEIGHT: |
About700Kg |
Other specifications can be customized according to buyer's requirements.

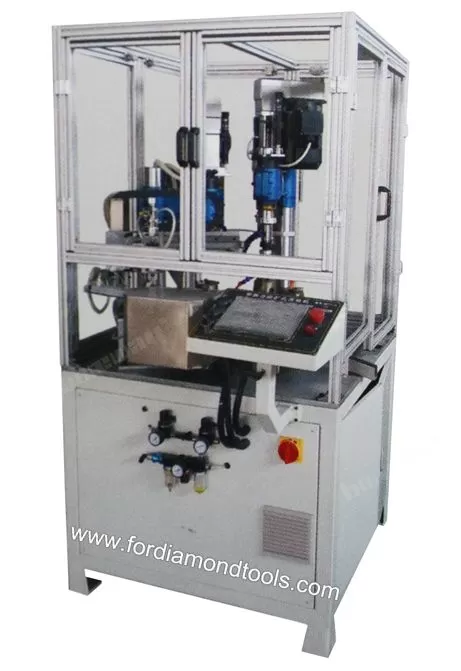

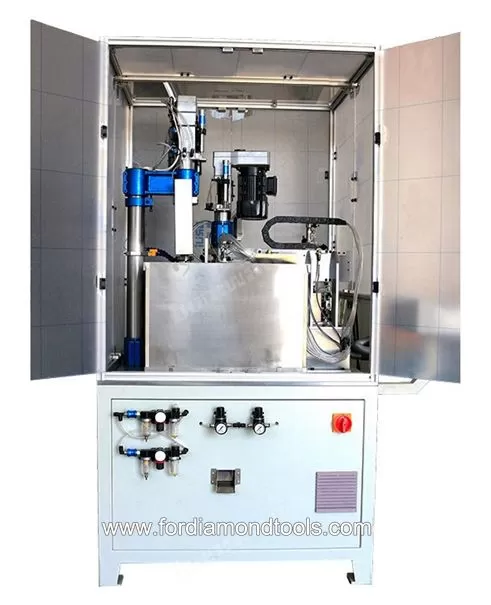

| Picture: |
Drilling Tapping Machine for diamond wire saw beads BWM-ART7-12
| Packing & Shipping: |
Wire Saw Beads Drilling Tapping Machine packing in the wooden.
We can also pack the polishing machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
We can also pack the polishing machine according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
