Bell Jar Type Controlled Atmosphere Sintering Hot Pressing Furnace BWM_RYL63_50

Product Specification:

Model :

BWM-RYL63-50
Power :

380V 50Hz
Sintering power :

50KW
Sintering pressure :

630KN
Diameter of rammer :

Ф300,Ф480mm
Maximum sintering temperature :

1000℃
Temperature differences in stove :

≤±2℃

See Price

May you like

Bell jar type controlled atmosphere sintering hot pressing furnace is mainly used to make 400mm and smaller diamond saw blade as well as metal bond diamond grinding wheel.

Splitted cylinder-down oil press machine for diamond grinding wheel,it can make vitrified grinding wheels, resin bond diamond grinding wheels and diamond saw blade.

Cylineder_above Hydraulic Oil Press Machine For Making Resin Products MY Series

Cylineder-above hydraulic oil press machine for making resin polishing products,MY series workshop hydraulic oil press machine is suitable for making small diameter conventional grinding wheel and super abrasive tools.

Product Details

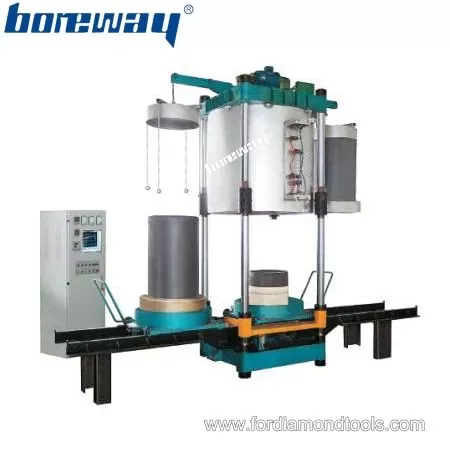

Bell jar type controlled atmosphere sintering hot pressing furnace BWM-RYL63-50

Controlled Atmosphere Bell Sintering Press This machine is mainly used to make 400mm and smaller diamond saw blade as well as metal bond diamond grinding wheel, with high density and size precision,little deformation when sintering.

Bell Jar controlled atmosphere sintering hot-pressing furnace is mainly used for producing diamond saw blades and metal bond grinding wheels with high density, high dimensional accuracy, small sintering deformation and diameter less than 400 mm. This pressure furnace combines the advantages of hot pressing sintering and normal temperature forming under controllable atmosphere. It can press and sinter diamond products under protective atmosphere. It provides two sets of stainless steel furnace gallbladders which are used alternately. The whole machine has the characteristics of compact structure, convenient loading and unloading, high production efficiency and small temperature difference in sintering area. It is used to produce high-grade diamond saw blades and metal bond grinding wheels. Preferred equipment.

Bell jar type controlled atmosphere sintering hot pressing furnace:

Model: BWM-RYL63-50

Power	380V 50Hz
Sintering power	50KW
Maximum sintering temperature	1000℃
Temperature differences in stove:	≤±2℃
Sintering pressure	630KN
KNPressure controlled precision	±1％
Maximum height of feeding material	600mm-800mm
Diameter of rammer	Ф300,Ф480mm
Parallelism of rammer	＜0.20mm

Other specifications can be customized according to buyer's requirements.

Bell jar type controlled atmosphere sintering hot pressing furnace

Notice:
1. Please provide the processed material before purchase.

2. Before purchase, please provide the model of the machine.

Sintering hot pressing furnace packing in the wooden.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
