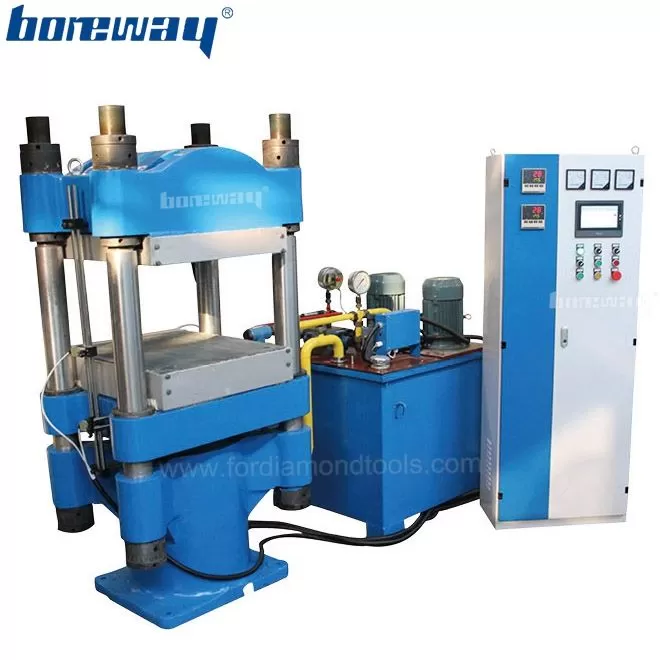

Splitted Cylinder_down Oil Press Machine For Diamond Grinding Wheel

Product Specification:

Model :

BWM-MYS series
Motor power(kw) :

1000-7000
Worktable size(mm) :

850×840
Rated oil pressure(MPa) :

25-29
Nominal pressure(KN) :

1000-4000
Speed of idle stroke(mm/s) :

13-25
Diameter of the piston(mm) :

Φ220

See Price

May you like

Bell Jar Type Controlled Atmosphere Sintering Hot Pressing Furnace BWM_RYL63_50

Bell jar type controlled atmosphere sintering hot pressing furnace is mainly used to make 400mm and smaller diamond saw blade as well as metal bond diamond grinding wheel.

Splitted cylinder-down oil press machine for diamond grinding wheel,it can make vitrified grinding wheels, resin bond diamond grinding wheels and diamond saw blade.

Cylineder_above Hydraulic Oil Press Machine For Making Resin Products MY Series

Cylineder-above hydraulic oil press machine for making resin polishing products,MY series workshop hydraulic oil press machine is suitable for making small diameter conventional grinding wheel and super abrasive tools.

Product Details

Splitted cylinder-down oil press machine for diamond grinding wheel,Grinding Graphite Press Block machine

Advantage: Little volume, strong pressure, low power consumption, convenient operation and trouble-shooting. Quipped with proper accessorial element and heating-up equipment it can make vitrified grinding wheels, resin bond cutting wheels, resin bond diamond grinding wheels and diamond saw blade.

Splitted cylinder-down oil press machine for diamond grinding wheel, Grinding Graphite Press Block machine:

Model	MYS-100	MYS-160	MYS-200	MYS-315	MYS-400
Nominal pressure(KN)	1000	1600	2000	3150	4000
Rated oil pressure(MPa)	26	26	25	28	29
Maxiumum stroke(mm)	250	350	350	400	600
Diameter of the piston(mm)	Φ220	Φ280	Φ320	Φ380	Φ420
Speed of idle stroke(mm/s)	≥22	≥17	≥13	15-35	12-25
Worktable size(mm)	400×400	550×500	610×550	730×660	850×840
Motor power(kw)	2.2	4.0	4.0	7.5	10
Mainframe weight(kg)	1000	2000	2800	5000	7000
Wheel diameter(mm)	≤Φ200	≤Φ300	≤Φ350	≤Φ500	≤Φ600

Other specifications can be customized according to buyer's requirements.

Splitted cylinder-down oil press machine for diamond grinding wheel, Grinding Graphite Press Block machine:

Notice:
1. Please provide the processed material before purchase.

2. Before purchase, please provide the model of the machine.

Splitted cylinder-down oil press machine packing in the wooden.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
