Making Diamond Wire Saw

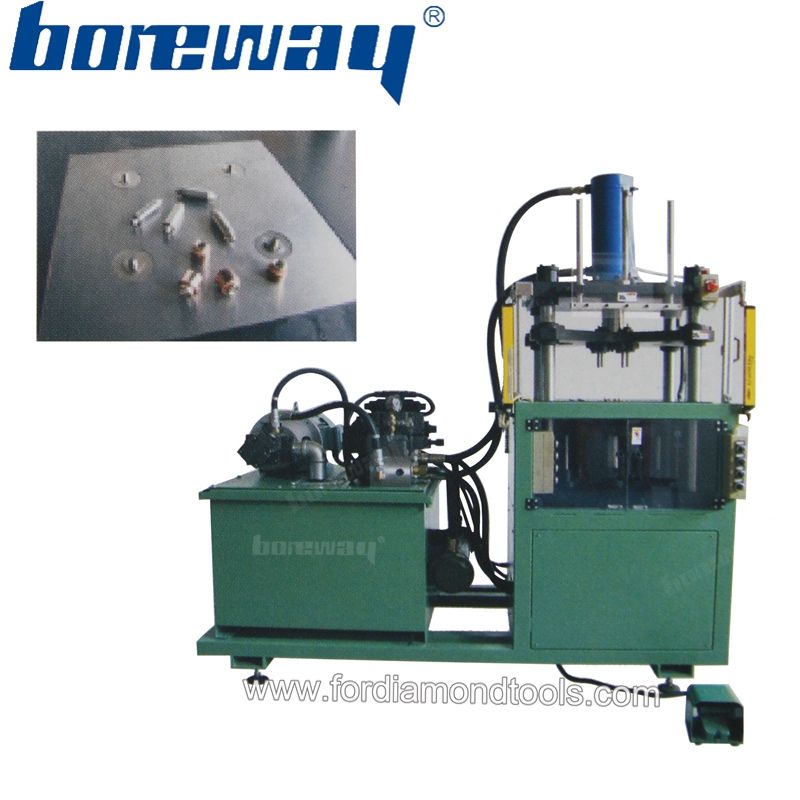

Semi Automatic Cold Press Machine For Making Diamond Wire Saw Beads
Product Specification:
-
Model :BWM-LY25BC4A
-
Top Pressure :250kN
-
Return Pressure :150kN
-
Qty of press beads :4Pcs
-
Nominal Pressure :250kN
-
Max diameterof bead :11.7mm
-
Max Pressure of Hydraulic :21Mpa
May you like
- Product Details
Semi Automatic Cold Press Machine for making diamond wire saw beads BWM-LY25BC4A for semi automatic cold press with matrix suppression beads,filling by hand.The replacement of mold can produce a variety of specifications of the beaded,two-way pressing,a press 4,6,8 beads.Semi-automatic cold pressing technology is used in the production of diamond wire saw beads. The process of adding iron core is reduced by pressing once with iron core and directly loading and sintering after pressing.
Features:
1. High productivity due to high speed. Using a four cavity mode, the yield can reach 5-6 grains per minute.
2. Lower wear loss of moulds. Stable four-column structure design with precise bearing orientation ensures long service life
3. Low Mold Cost. New mould structure and universal design can avoid mould loss and greatly reduce the cost of mould making.
4. Constant high quality pearls. The powder can be weighed manually and multi-layer powder can be added according to the requirement, which ensures the weight of the product and the stability of powder stratification.
5. Reduced Setting Time. According to the optimized program design of the production process, the manual settings can be minimized and the staff can concentrate on the production of products.
6. Human-friendly and intimate design. Manual and foot operation modes can be used freely according to staff's operating habits; double-deck protective structure design can ensure staff's personal safety as far as possible.
Semi Automatic Cold Press Machine for making diamond wire saw beads BWM-LY25BC4A
| Item | symbols | Data | Units |
| One mold pressed bead qty. | n | 4 | pcs |
| Production efficiency | η | 320 | pcs/h |
| Maximum bead diameter | D | 11.7 | mm |
| Nominal Pressure | F1 | 250 | kN |
| Hydraulic Maximum Working Pressure | Ph | 21 | Mpa |
| Maximum Stroke of Upper Movable Beam | L1 | 250 | mm |
| Maximum Stroke of Lower Movable Beam | L3 | 150 | mm |
| Distance from upper mould/die punching down plane to working table surface | L4 | 195 | mm |
| Effective area of working table (front and back × left and right) | L4×L5 | 310×450 | mm×mm |
| Total mass | M | 1200 | kg |
| Total power | P | 6 | kw |
| Compressed air | Pair | 3~5 | bar |
| Power Supply | U | 380 | V |
Other specifications can be customized according to buyer's requirements.
Semi Automatic Cold Press Machine for making diamond wire saw beads BWM-LY25BC4A
Diamond wire saw beads cold press machine packing in the wooden.
We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
Special specifications need to be negotiated before the delivery times.
