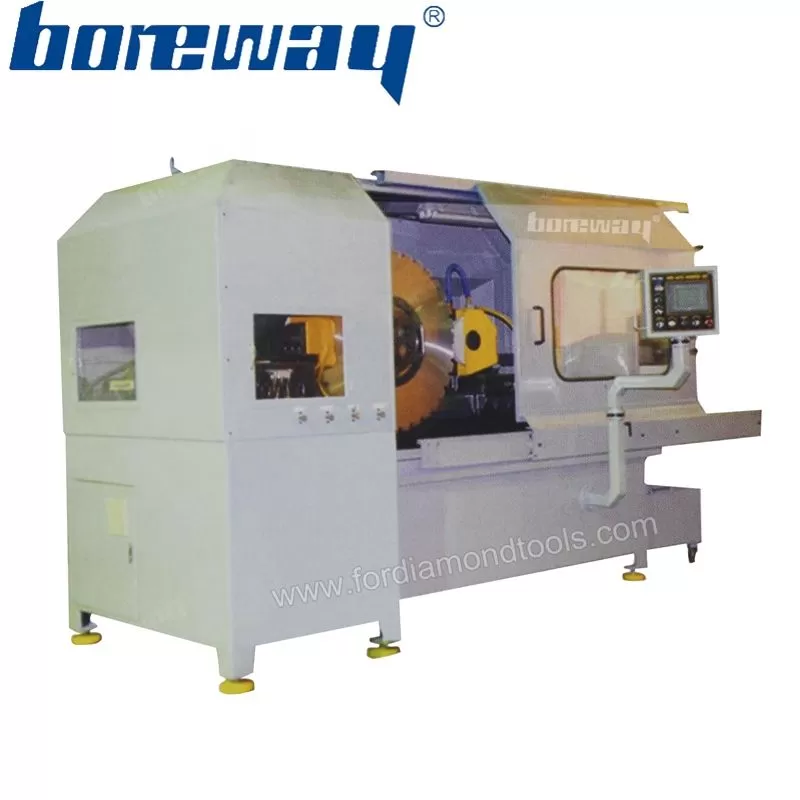

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Product Specification:

Model :

BWM-SAG1200AC
Power :

5KVA
Spindle Speed :

1~250rpm
Capacity of coolant tank :

80L
Electric :

AC380V three phases 50Hz
Frontal/Side grinding wheel speed :

1400rpm

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

Automatic Grinding Machine for diamond saw blade, This Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Feature:

1. Can wet cutting.

2. The matrix automatic fixed.

3. Regular automatic lubrication system.

4. At the same time can be a blade edge.

5. Speed of saw blade can be adjustment.

6. PLC and servo motor precision control of feed.

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade:

Type:	BWM-SAG1200AC	Spindle Speed:	1~250rpm
Power:	5KVA	Frontal grinding wheel speed:	1400rpm
Electric:	AC380V three phases 50Hz	Side grinding wheel speed:	1400rpm
Minimum diameter of spindle:	20mm	Capacity of coolant tank :	80L
Grinding wheel size:	Outer diameter 305mm Thickness（30~40）mm Inner diameter 76.2mm	Machine size:	Lenght 2615mm Width 1510mm Height 1800mm
Saw Blade Size:	110~600mm	Weight:	about 2500kg

Other specifications can be customized according to buyer's requirements.

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade:

Diamond Saw Blade Auto Grinding Machine packing in the wooden.
We can also pack the sharpening machine according to buyer's requirements.
Special specifications need to be negotiated with us before the delivery date.
