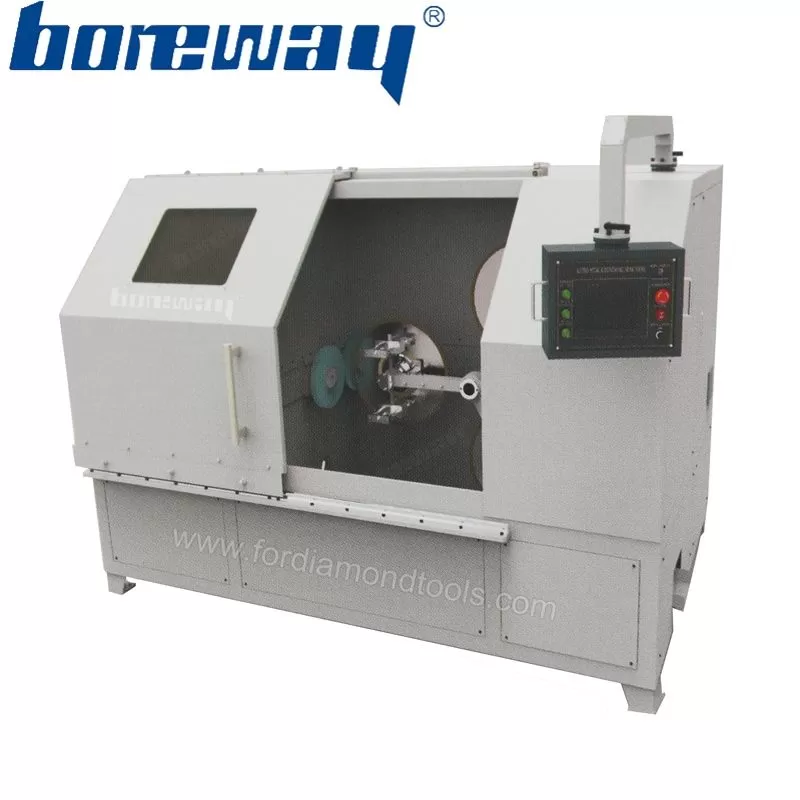

Fully Automatic Side Grinding Machine For The Edge Of Diamond Circular Saw Blade

Product Specification:

Model :

BWM-ASG8-16
Powder :

5KVA
Spindle Speed :

120~350rpm
Saw Blade Size :

110~600mm
Grinding Wheel Speed :

1400rpm
Electric :

AC380V three phases 50Hz
Production Efficiency :

1500pcs/8hours

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

Fully Automatic Side Grinding Machine For The Edge Of Diamond Circular Saw Blade

The equipment used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Feature:

1. Can wet cutting.

2. The matrix automatic fixed.

3. Regular automatic lubrication system.

4. At the same time can be a blade edge.

5. PLC and servo motor precision control of feed.

Fully Automatic Side Grinding Machine For The Edge Of Diamond Circular Saw Blade:

Type:	BWM-ASG8-16	Power:	5KVA
Electric:	AC380V three phases 50Hz	Grinding Wheel Speed:	1400rpm
Saw Blade Size:	110~600mm	Spindle Speed:	120~350rpm
Production Efficiency:	1500pcs/8hours	Weight:	about 1200kg
Grinding Wheel Size:	Outer diameter 305mm Thickness 16mm Inner diameter 63.5mm	Machine Size:	Lenght 1800mm Width 1600mm Height 1800mm

Other specifications can be customized according to buyer's requirements.

Fully Automatic Side Grinding Machine For The Edge Of Diamond Circular Saw Blade:

Fully Automatic Side Grinding Machine For Diamond Circular Saw Blade packing in the wooden.

We can also pack the sharpening machine according to buyer's requirements.
Special specifications need to be negotiated with us before the delivery date.
