Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Product Specification:

Model :

BWM-DRG500
Power :

1.2KVA
Efficiency :

360pcs/h
Cold Water :

10L/Min
Compressed Air :

6-8bar
Sorting Thickness :

4groups
Size :

L1300mm*W1100mm*H1300mm

See Price

May you like

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

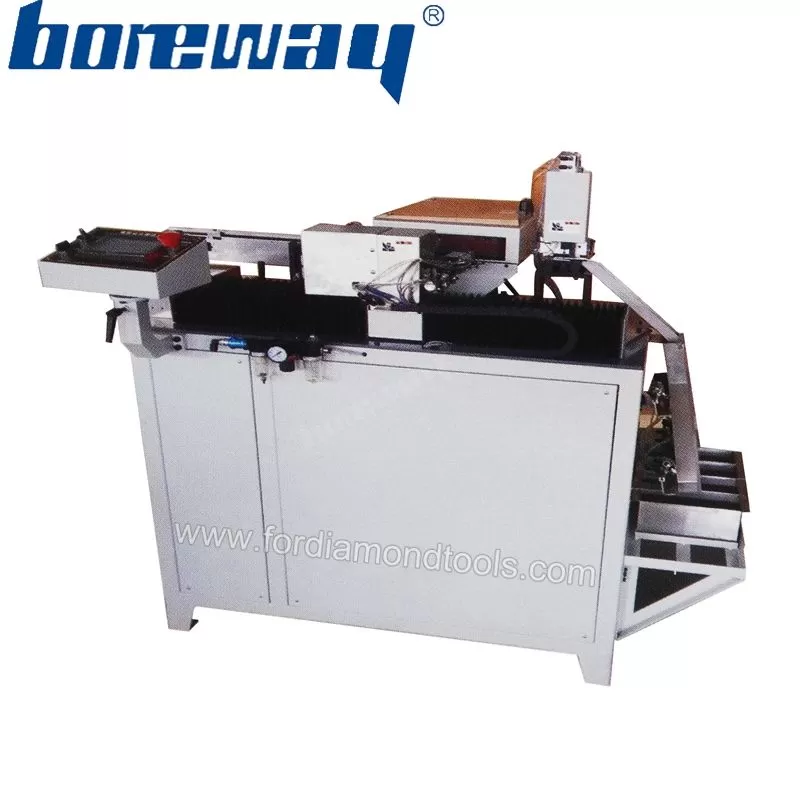

Core Drill bit grinding arc thickness measuring machine BWM-DRG500

Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Core Drill bit grinding arc thickness measuring machine BWM-DRG500

Main Parameter as below:

Type:	BWM-DRG500	Cold Water:	10L/Min
Power:	1.2KVA	Sorting Thickness:	4groups
Electric	AC380V three phases 50Hz	Machine Size:	Lenght 1300mm Width 1100mm Height 1300mm
Efficiency:	360pcs/h	Thickness Tolerence:	0.01mm
Compressed Air:	6-8bar	Weight:	about 280kg

Other specifications can be customized according to buyer's requirements.

Core Drill bit grinding arc thickness measuring machine BWM-DRG500

Core drill bit grinding measuring machine packing in the wooden.
We can also pack the grinding measuring machine according to buyer's requirements.
Special specifications need to be negotiated with us before the delivery date.
