Automatic Grinding Machine For Diamond Saw Blades BWM_AEM600

Product Specification:

Model No. :

BWM-AEM600
Size of the machine :

2100mm*1050mm*1600mm
Power of grinding wheel engine :

1.5kw
Application range :

350mm-600mm
Air Saw pressure :

0.8Mpa
Voltage :

AC 380v
Power :

6.6KW

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

Automatic Grinding Machine For Diamond Saw Blades BWM-AEM600

1. This machine is designed for grinding the top edge and lateral sharpening of diamond saw blade.

2. Allocation professional dust protected system ,getting more safety ,clean and environmental.

3. All the grinding parameters can be setting trhough a touch pannel,it 's easy to operate.

4. Higher productivity due to the PLC and servo control system, best grinding effect .

5. Equipment is simple ,straightforward parameter setting.

6. High sharpening effect ,and efficiency.

All of our products have been strictly tested before access to market.

Other specifications can be customized according to requirements.

Automatic Grinding Machine For Diamond Saw Blades BWM-AEM600

Main features

1. PLC OS, Easy to operate;

2. High efficiency ,400-500pcs of daily output;

3. The setting can be for double sides,single side,cutting side or cleaning welding marks;

4. Our machine is environment friendly and has no dust pollution,greatly improving the work environment;

5. As the machines can automatically finish the processes,only one labor is required to operate 3 sets of machines,the labor intensity is reduced noticeably.

Main Parameters

Model: BWM-AEM600

Application range : φ350mm-φ600mm

Voltage: AC 380v Power : 6.6KW

Power of grinding wheel engine: 1.5kw1400r/min

Power of saw blade engine: 1.1kw(variable frequency)

Size of the machine : 2100mm×1050mm×1600mm N.W. : 900kg

Size of the grinding whee: 250mm(outer)×25mm(thickness)×32mm(inner)

Air source pressurel : 0.8Mpa Control and OS : PLC+touch screen+servo

We can customize various specifications grind machine for diamond saw blade according to buyer's requirements.

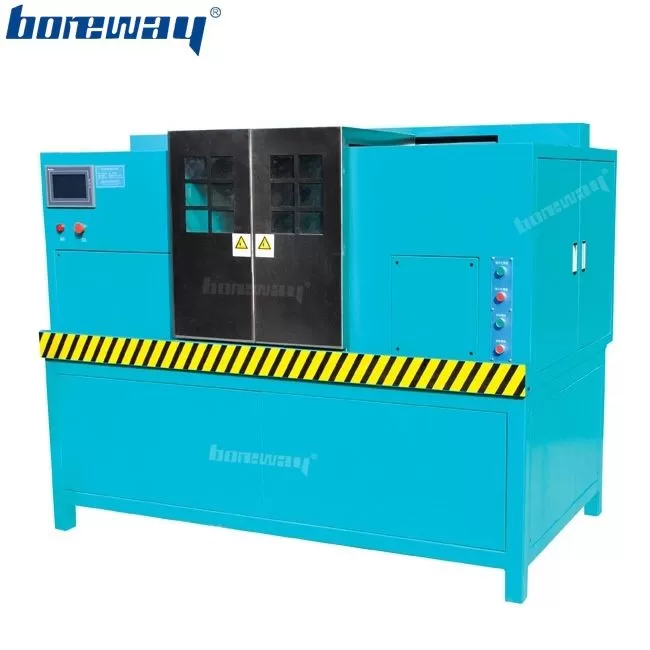

Automatic Grinding Machine For Diamond Saw Blades BWM-AEM600

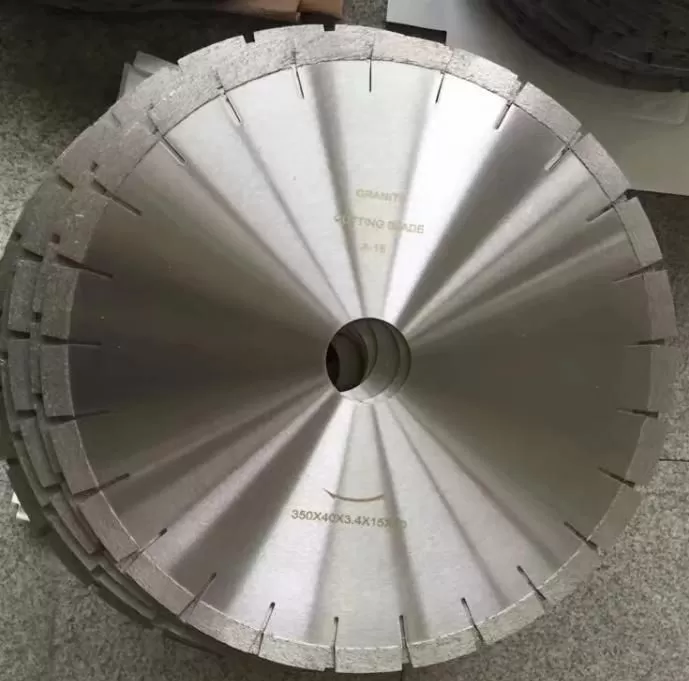

Related Products And Using Effect: Automatic Grinding Machine for diamond saw blades 01

Automatic Grinding Machine for diamond saw blades 02

1.Automatic grinding machine for diamond saw blades packing in the wooden.

2. We can also pack the automatic grinding machine according to your requirements.
3. Special specifications need to be negotiated with us before delivery.

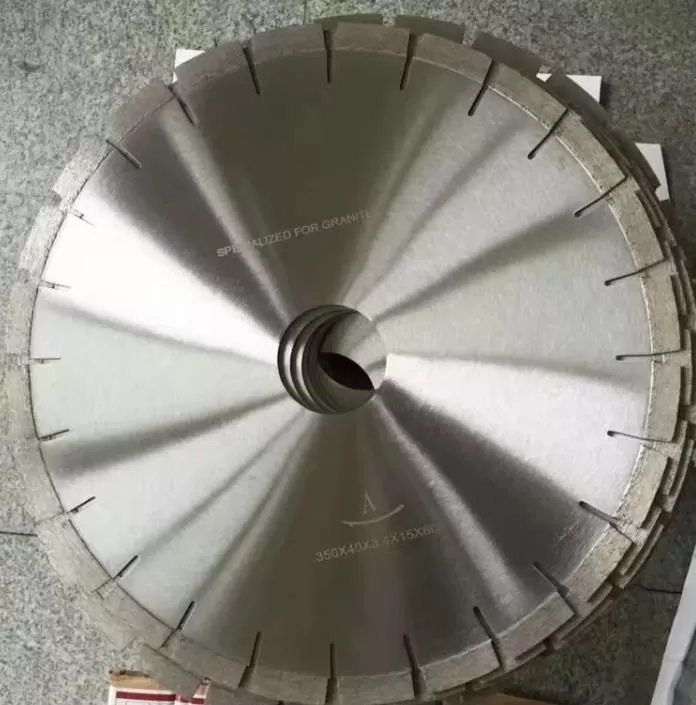

Automatic grinding machine for diamond saw blades 03
