Automatic Segments Welding Strength Testing Machine For Diamond Saw Blade

Product Specification:

Model :

BWM-HJJC01
Power :

1KW
Voltage :

AC 220V
Air source flow :

30 L/min
Air source pressure :

0.8 Mpa
Application range :

200-600mm
Control and OS :

Touch screen and PLC

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

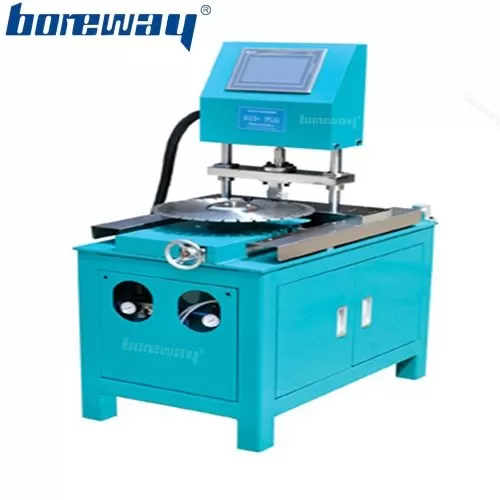

Automatic segments welding strength testing machine for diamond saw blade

This diamond saw blade welding testing machine for testing the welding between diamond segment and saw blank automatically.

Features:

1. The welding standard can be set between 4-60 N/m;

2. The tester can be used to test saw blades of all kines of slot;

3. Small volume, easy to operate, saving energy and good looking;

4. All of our products have been strictly tested before access to market;

5. The segments can be located antomatically and the quantity of segments can be set as wish;

6. The machine will record the number of segments tested and stop working when it reaches the preset number.

Automatic segments welding strength testing machine for diamond saw blade:

Specification of diamond saw blade welding testing machine:

Model	BWM-HJJC01
Voltage	AC 220 V
Power	1 KW
Control and OS	Touch screen and PLC
Application range	200-600 mm
Size	9005001300 mm
Segment type	All types
Moment	4-60 N/m
Air source pressure	0.8 Mpa
Air source flow	30 L/min
Air source connector size	8 mm
Weight	170 KG

Other specification can be customized according to need.

Automatic segments welding strength testing machine for diamond saw blade:

Automatic segments welding strength testing machine for diamond saw blade

Automatic segments welding strength testing machine for diamond saw blade 01

This welding Strength Testing Machine For Diamond Saw Blade Packing in the wooden case.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated with us before delivery.
