  1. Product Details

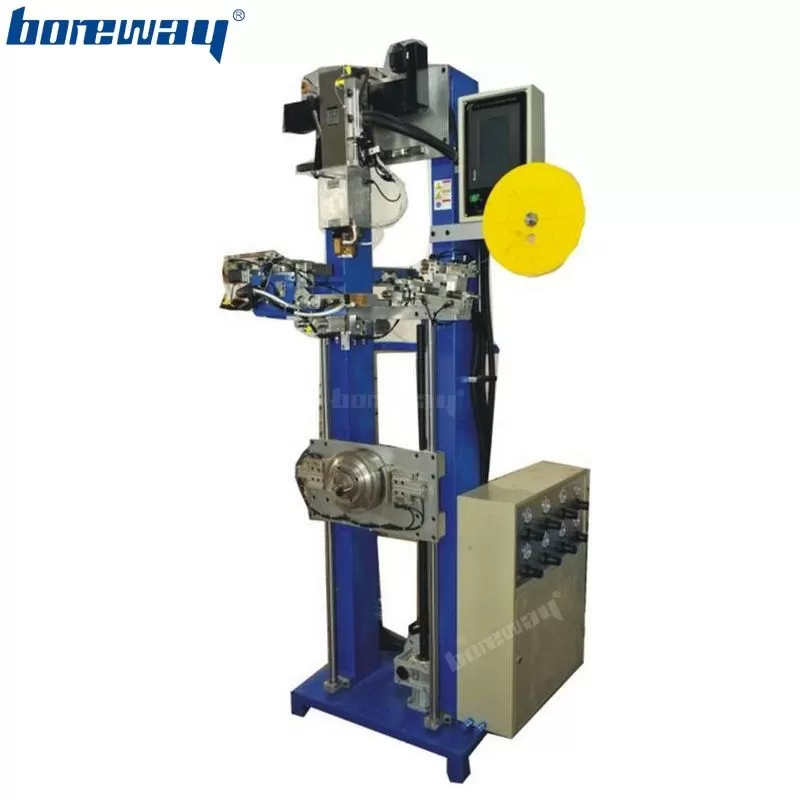

Automatic Welding Machine For Diamond Saw Blade Ø600-ø2300/ø800-ø3000/Ø1000-ø4500 brazing frame BWM-DQA-EP5
is used for big saw blade,The minimum welding range is 600mm diameter saw blade.
It can automatic finish all welding steps.

CONFIGURATION:
1. Ceramic clip protection function.
2. Pneumatic automatic segments separating system.
3. Segment manually centering system.Manually adjust the welding position of the segment before the welding.
4. Segment automatic picking & Fixing system.Machine can automatically pick the segment and fix to the welding position.
5. Traditional silver solder automatic sending system.It is effective and cheaper choose but less accurate and inconvenient.
6. Automatic put soldering flux on the welding side of the segment.Silver solder sending and flux putting are both independent, So they will not influence each other.

OPTIONAL CONFIGURATION:
1. Infrared ray temperature control system.
2. Automatic put soldering flux on the welding side of the saw blade.
3. Silver solder automatic cutting & sending system.Operator can set the length of the solder in the touch screen,
    Then machine will automatic cut off the solder and sent to the welding position.
4. Segment automatic centering system.Before welding ,machine will automatic detect the thickness of the saw blade
    and automatic move the segment to the center,do not need manual adjustment.
Automatic Welding Machine For Diamond Saw Blade brazing frame BWA-EP5/6/7

Model

BWA-DQA-EP5/6/7

Brazing Diameter (mm)

Ø600-ø2300/ø800-ø3000

Ø1000-ø4500

Welding error (Verticality)(mm)

≤±0.03

Welding error (Linearize)(mm)

≤±0.03

Brazing Capacity (pc/h)

180-450

Air Pressure(MPA)

0.6

Hydraulic Pressure(MPA)

≥0.2

Power(W)

800/1200/2200

Water consumption(m³/h)

2.0

Weight(Kg)

230

Dimension(mm)

1150*980*1660

For big models Dia. ø800-ø3000 and Ø1000-ø4500, Pls contact with us.
Note:This Machine No include induction heater,air compressor and water pump.


Automatic Welding Machine For Diamond Saw Blade Ø600-ø2300 brazing frame BWA-DQA-EP5

Automatic Welding Machine For Diamond Saw Blade Ø600-ø2300 brazing frame BWA-EP5


Related Products as below:
Model : BWA40-EP6/4/3 Fully Automatic Brazing Machine For Diamond Saw Blade Ø200~ø400 welding machine

       Fully Automatic Brazing Machine For Diamond Saw Blade Ø200~ø400 welding machine

 Model: BWM-CY160A Fully Automatic Welding Machine For Diamond Saw Blade Φ600mm-Φ2200mm

  Fully Automatic Welding Machine For Diamond Saw Blade Φ600mm-Φ2200mm

Automatic Welding Machine For Diamond Saw Blade packing in the wooden.

We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.
