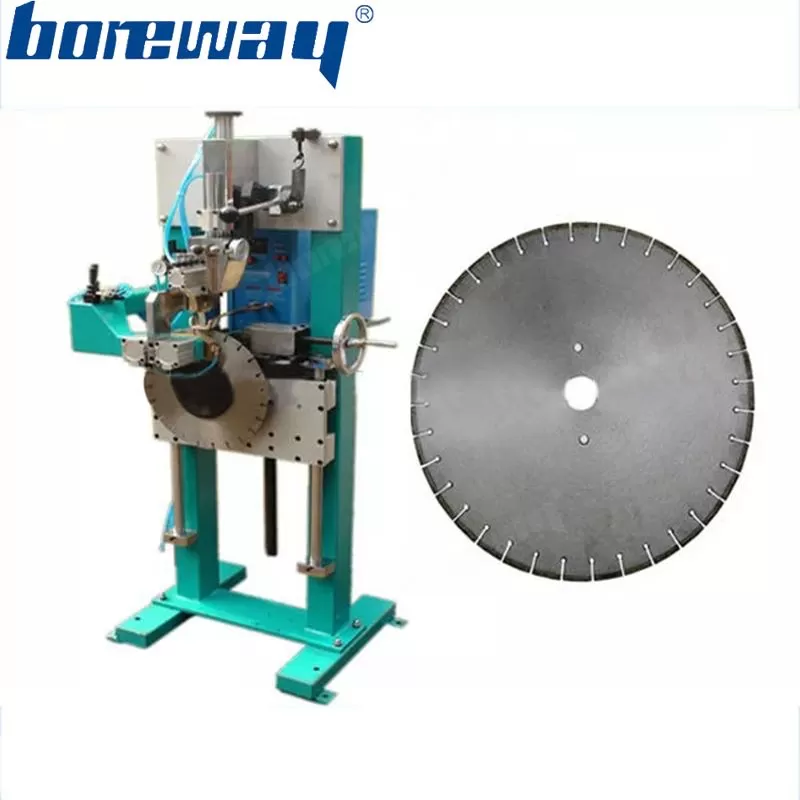

Brazing Welding Frame Rack For Diamond Circular Saw Blade BW_HJ_1200
Brazing Welding Frame Rack For Diamond Circular Saw Blade BW_HJ_1200
Brazing Welding Frame Rack For Diamond Circular Saw Blade BW_HJ_1200

Brazing Welding Frame Rack For Diamond Circular Saw Blade BW_HJ_1200

Product Specification:
  • Model No. :
    BW-HJ-1200
  • Welding speed :
    3-9 second per piece
  • Dimension :
    700*500*1500mm
  • Welding range :
    Ø200-ø1200
  • Air pressure :
    0.8mpa
  • Weight :
    160Kg
  • Power :
    400W
See Price
  1. Product Details

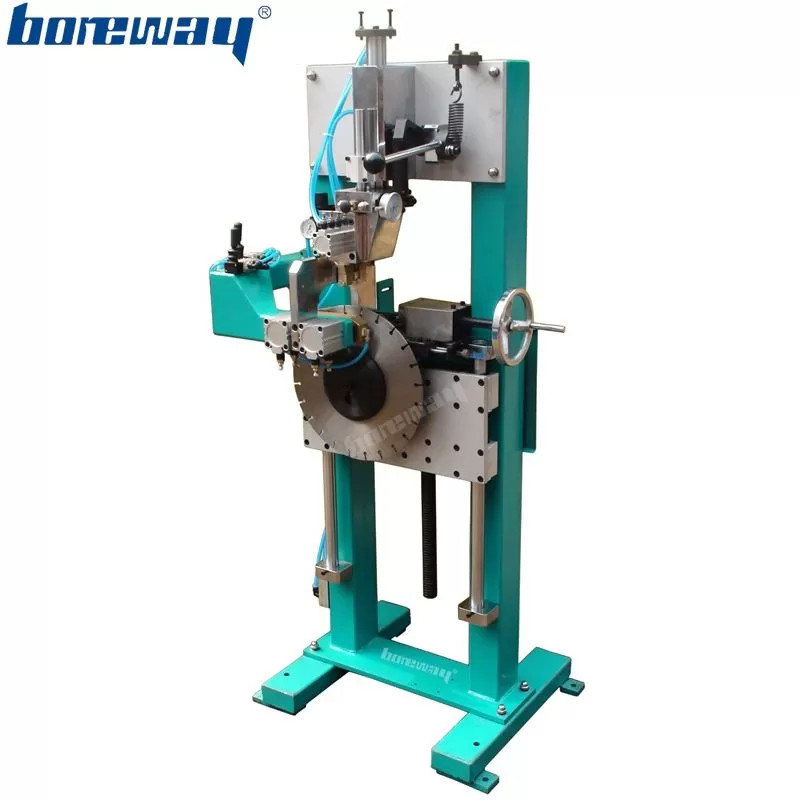

Brazing welding frame rack for diamond circular saw blade BW-HJ-1200
This saw blade machine is designed for welding various specifications of diamond saw blades.It was finished design by our company after years of comprehensive reserch and development,so it is a new anxiliary equuipment.These new saw blade welding machine are more structure compacted and efficiency,the most attractive feature is that most of the  vulnerable parts are easy to buy around in the markets so you can needn't rely on the oversea services.

Features:
1. Double cylinder clamp, welding heads to ensure accuracy.
2. Dual clamping cylinder, ensure the welding process matrix stress damage.
3. Head clamping device for the use of mechanical geometry, ensures symmetry and accuracy.
4. Easy to operate, saving time and effort, Pu simple training to operate.


The specification of ​Diamond saw blade welded machine frames:

Type

BW-HJ-1200

Power

400W

Welding range

Ø200-ø1200

Weight

160Kg

Dimension

700*500*1500

Welding speed

3-9 sed/pc

Verticality

≤±0.03mm

Air pressure

0.8mpa

Runout

≤±0.03mm

Water Consumption

2m³

Water pressure

≥0.2mpa





Detailed specification can be ordered by customers.


Brazing welding frame rack for diamond circular saw blade

Brazing welding frame rack for diamond circular saw blade

Brazing welding frame rack for diamond circular saw blade

1. Brazing welding frame rack for diamond circular saw blade packing in the wooden.
2. We can also pack the saw blade welding rack according to your requirements.
3. Special specifications need to be negotiated for delivery times.
