  1. Product Details


The "BWM-HJ350" Semi-Automatic Welding Frame
 is used for Welding Diamond Circular Saw Blade from ø350mm to ø3500mm, Standard welded 2500mm saw blade ( Should be boosted 1000mm high).  In addition, it also can be used for welding gang saw blade after specially modification, It is a new type of diamond saw blade welding auxiliary equipment.

This Diamond Saw Blade Welding Frame has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.

Features:
1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;
3. High efficiency and accuracy,low energy consumption ;
4. High level of automation, good stability, long service life ;
5. Most of the wearing parts are available in all parts of the hardware store to buy your own replacement, convenient and quick.

All of our products have been strictly tested before access to market.
Other specifications can be customized according to requirements.

Welding Frame for Diamond Saw Blades Welding Range 350-3500mm

Model No.:  BWM-HJ350

Welding Range

MM

Ø240 – Ø2500                                                  (Normal Ø2500, Max Ø3500)

Verticality

MM

≤±0.03

Parallelism

MM

≤±0.03

Welding Rate(Segments Qty/Min)

PCS/Min

6 – 12

Air Pressure

Mpa

0.3 - 0.6

Water Pressure

Mpa

≥0.2

Voltage

V

220 (Single-phase), 50HZ

Power

W

550

Water Consumption

M³/h

1.5 - 2.0

Machine Dimensions

MM

L1030 * W550 * H2800 (Stand)

Machine Net Weight

KG

  210

Package Dimensions

MM

L2500 * W700 * H750 (Horizontally)

Package Weight(Wooden Packing)

KG

  260

Note :This machine doesn’t include high frequency welding machine , air compressor and water pump.

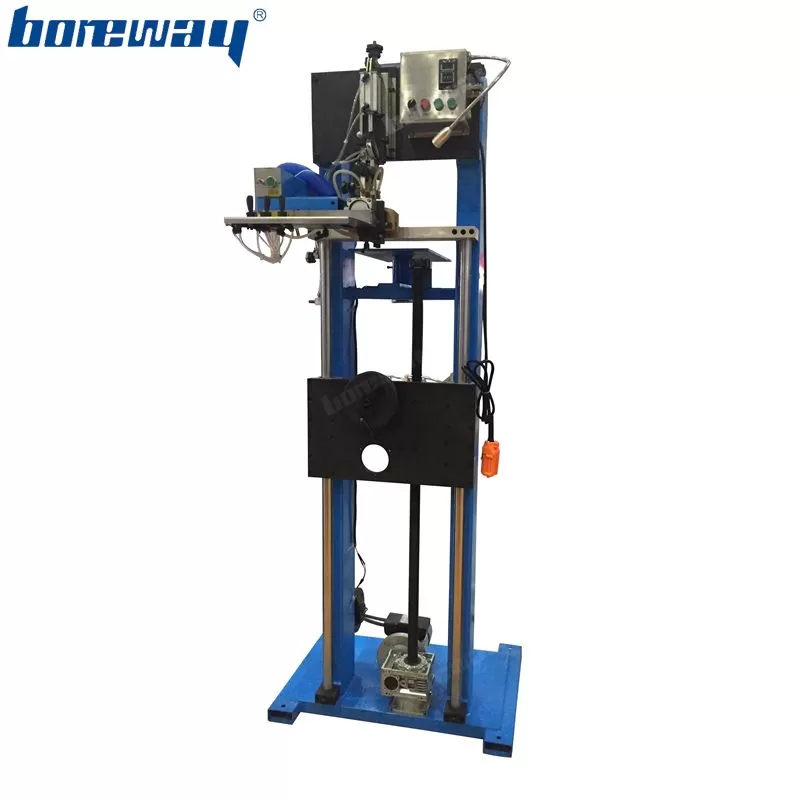

Welding Frame for Diamond Saw Blades Welding Range 350-3500mm

              Welding Frame for Diamond Saw Blades Welding Range 350-3500mm

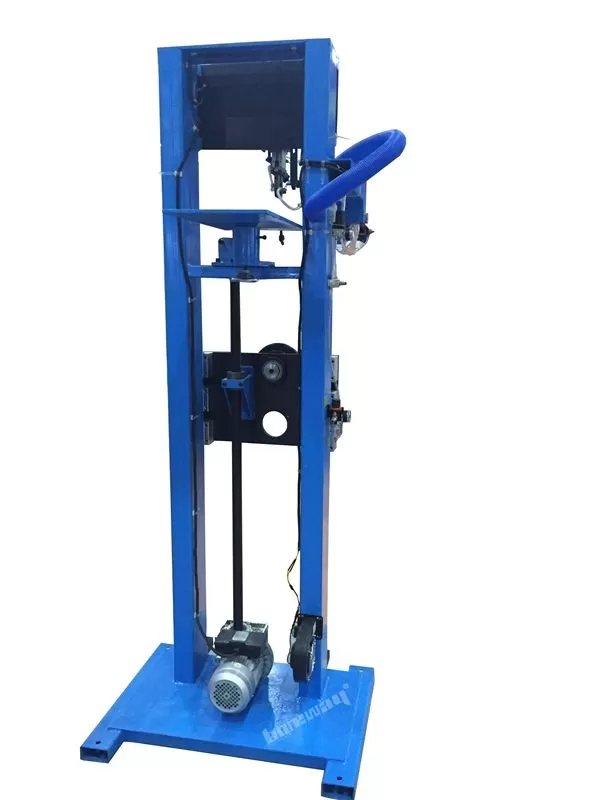

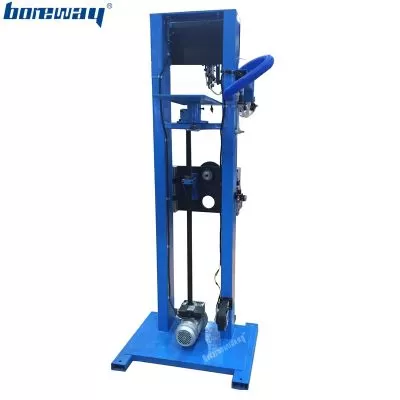

Backside of  Welding Frame for Diamond Saw Blades Dia.350-3500mm

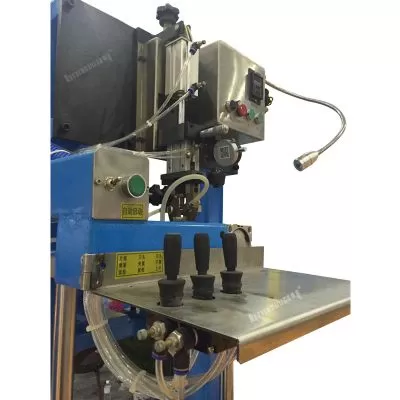

                                            Welding Frame for Diamond Saw Blades 01

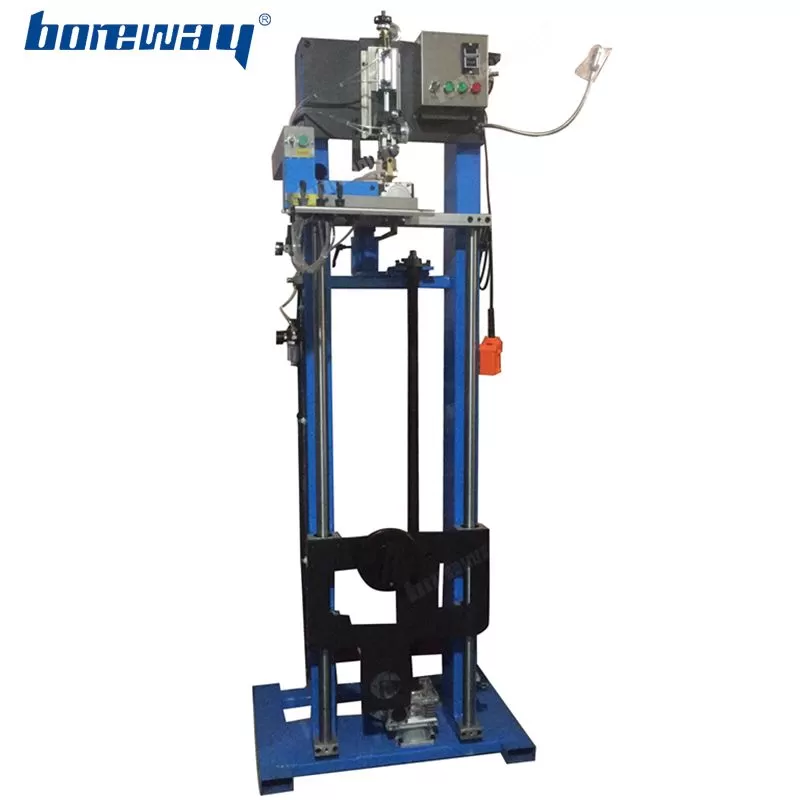

Brazing Machine Welding Rack for Making Diamond Saw Blades Dia.350-3500mm
The Details:

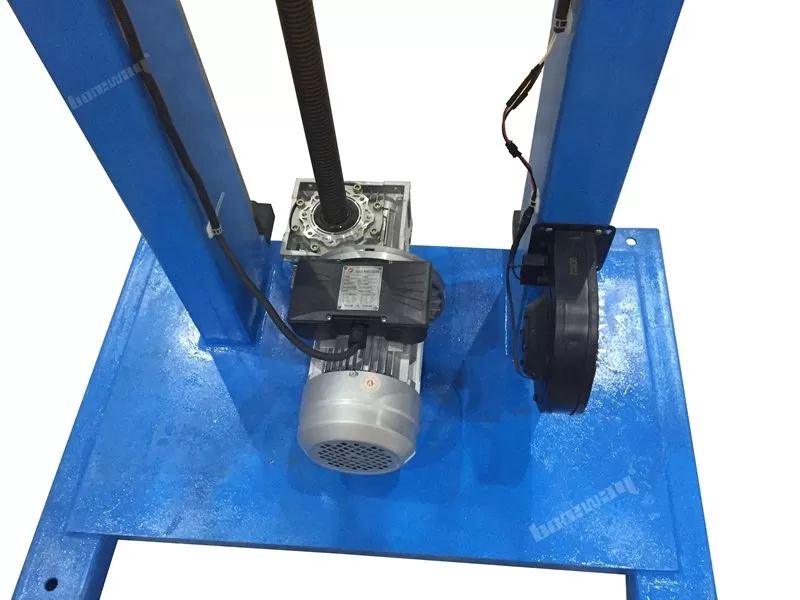

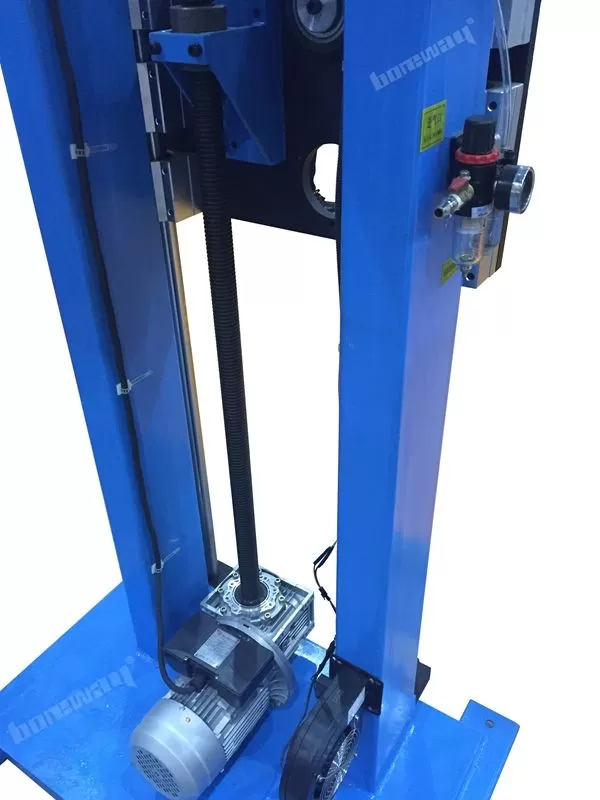

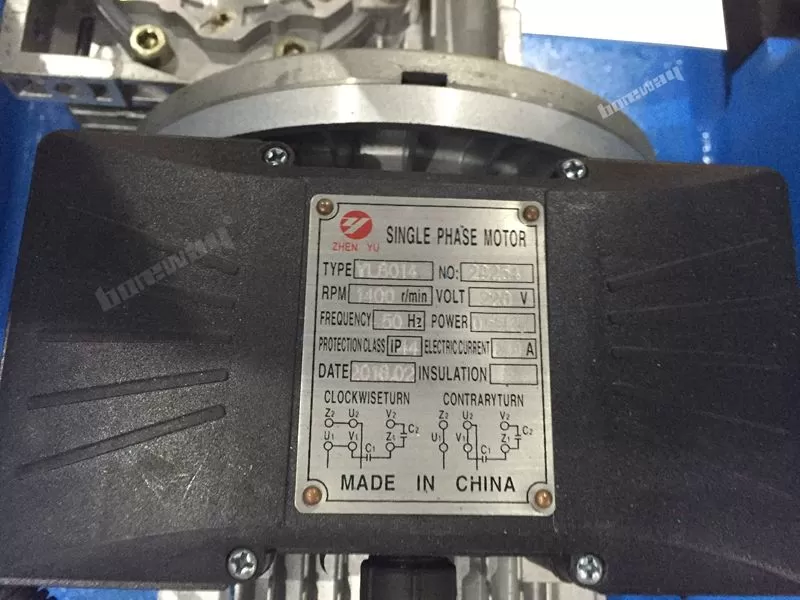

          Welding Frame for Diamond Saw Blades 02Welding Frame for Diamond Saw Blades 03

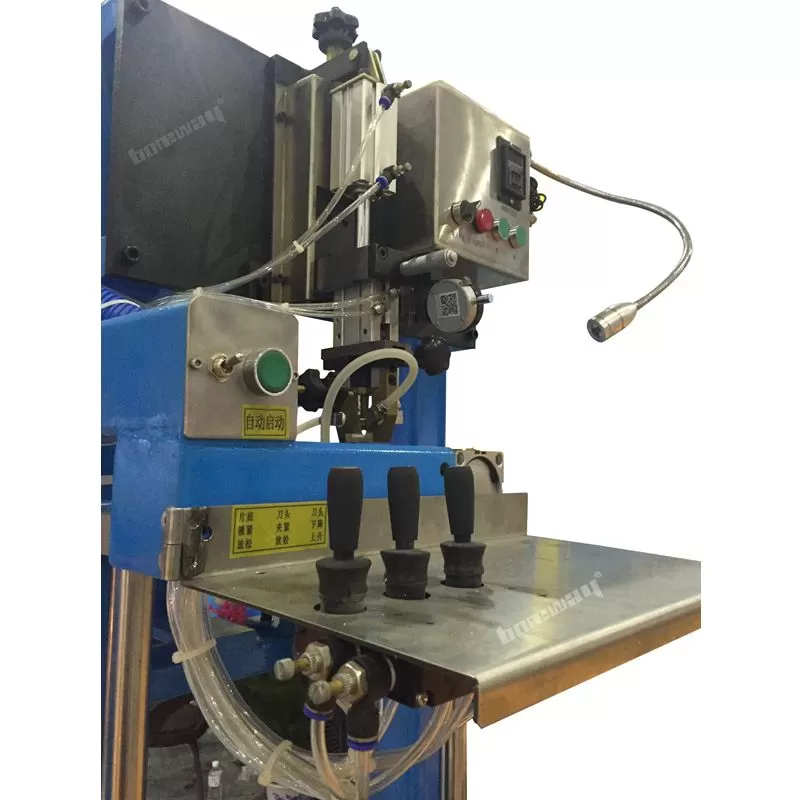

Welding Frame for Diamond Saw Blades 04Welding Frame for Diamond Saw Blades 05

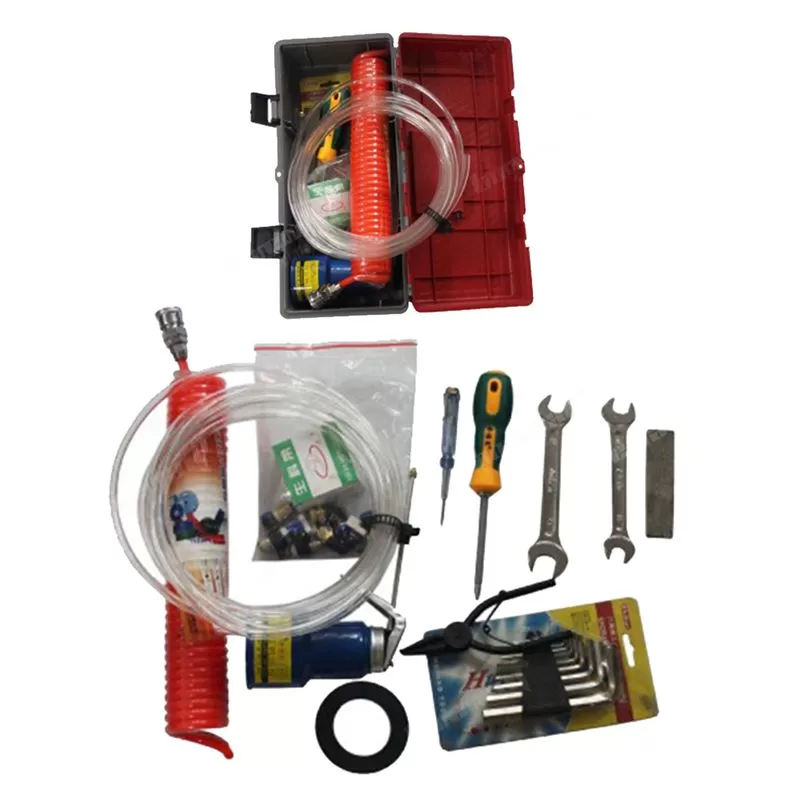

Tool Box of  Welding Frame For Diamond Saw Blades
Welding Frame for Diamond Saw Blades packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated with us before the delivery date.
