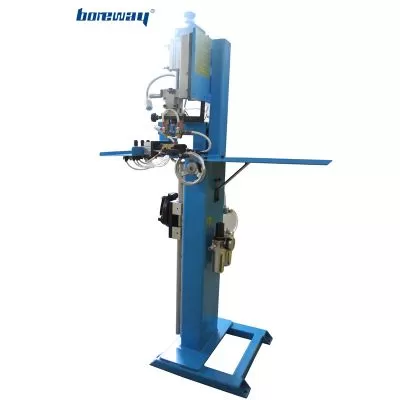

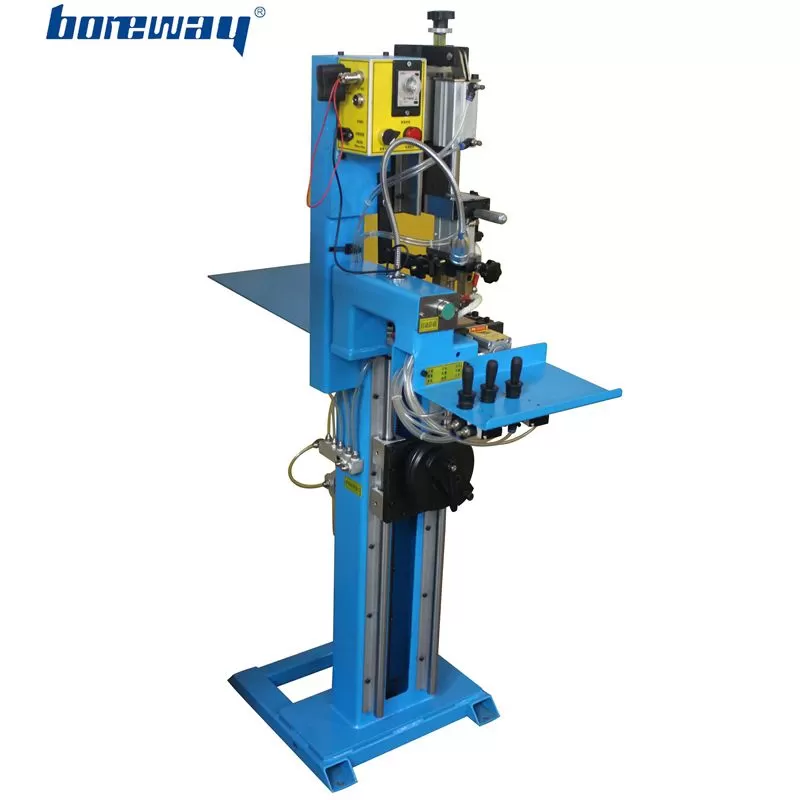

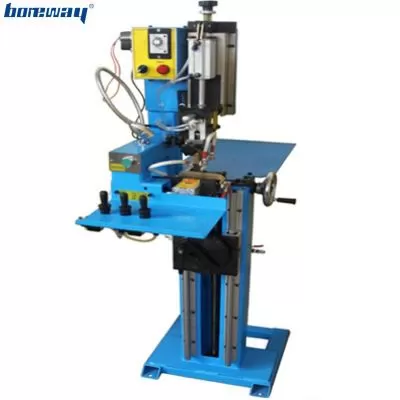

Diamond Circle Saw Blade Welding Rack
Welding Frame For Diamond Saw Blade Segment Welding Range Diameter 250 To 1400MM
-
Model No :BWM-HJ08
-
Verticality :≤± 0.3mm
-
Parallelism :≤± 0.3mm
-
Welding Rate :4-20 PCS/Min
-
Water Consumption :1.5M³/h
-
Welding Rack Equipment Weight :85Kg
-
Machine Dimensions :L940*W440*H1440mm
May you like
- Product Details
The BWM-HJ08 Welding Frame For Diamond Saw Blade Segment is used for Welding Diamond Circular Saw Blade from ø250mm to ø1400mm ( Should be boosted 500mm high). In addition, it also can be used for welding gang saw blade after specially modification, It is a new type of diamond saw blade welding auxiliary equipment.
This Diamond Saw Blade Welding Frame has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.
Features:
2. Welding frame structure is compact and reliable.
4. High level of automation, good stability, long service life.
5. Most of the wearing parts are available in all parts of the hardware store to buy your own replacement, convenient and quick.
The specification of Welding Frame for diamond saw blade segment :
| Model No: BWM-HJ08 | |
| Welding Range | Φ240mm - 900mm(Max 1400mm) |
| Verticality | ≤± 0.3mm |
| Parallelism | ≤± 0.3mm |
| Welding Rate | 4-20 PCS/Min |
| Air Pressure | 0.3 - 0.6Mpa |
| Water Pressure | ≥ 0.2Mpa |
| Voltage | 220V (Single-phase)50Hz |
| Power(From LED Light) | 1.0W |
| Water Consumption | 1.5 - 2m³/h |
| Machine Dimensions | L940*W440*H1440mm |
| Equipment Weight | 85Kg |
| Package Dimensions | L1600*W520*H550(Horizontally) |
| Package Weight(Wooden Package) | 115Kg |
Other specifications can be customized according to requirements.
Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.

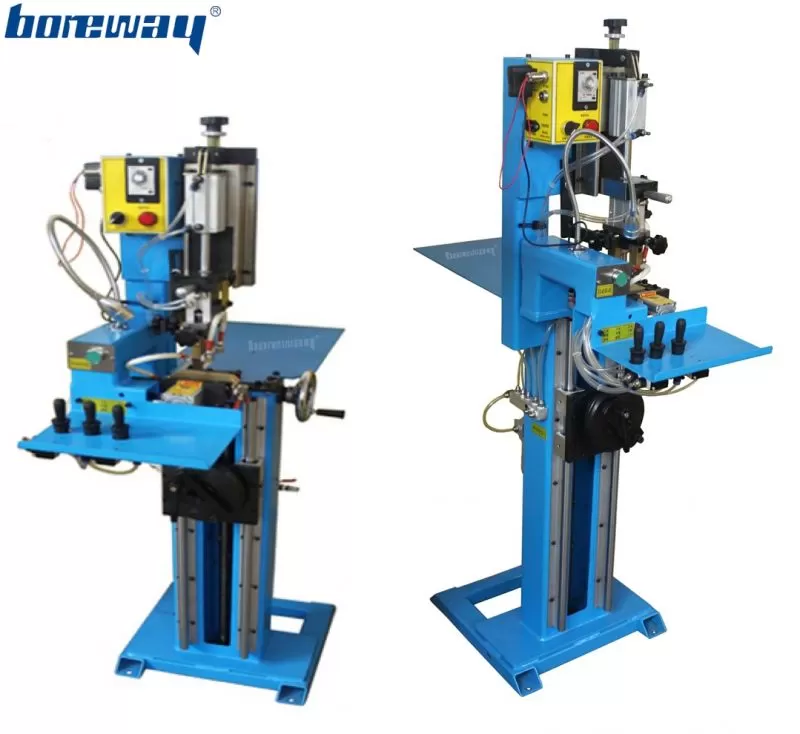

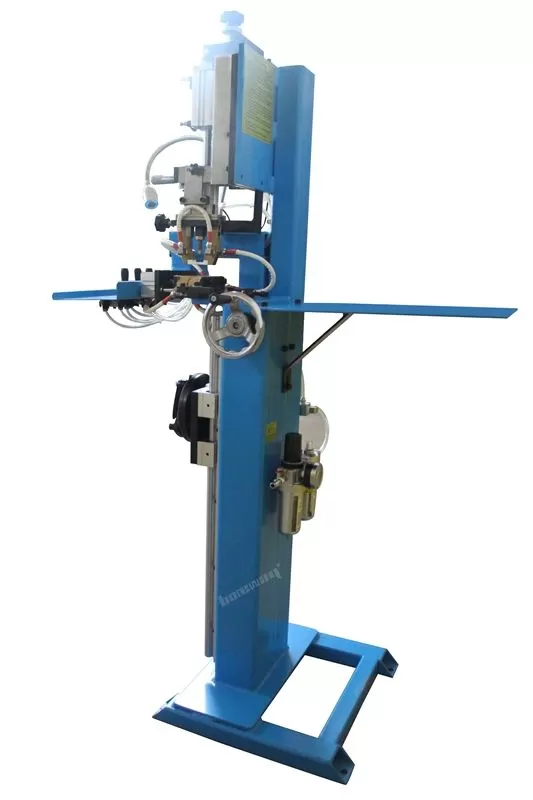

Welding Frame For Diamond Saw Blade Segment:
Diamond Saw Blade Welding Rack Semi Automatic diamond saw blade brazing machine

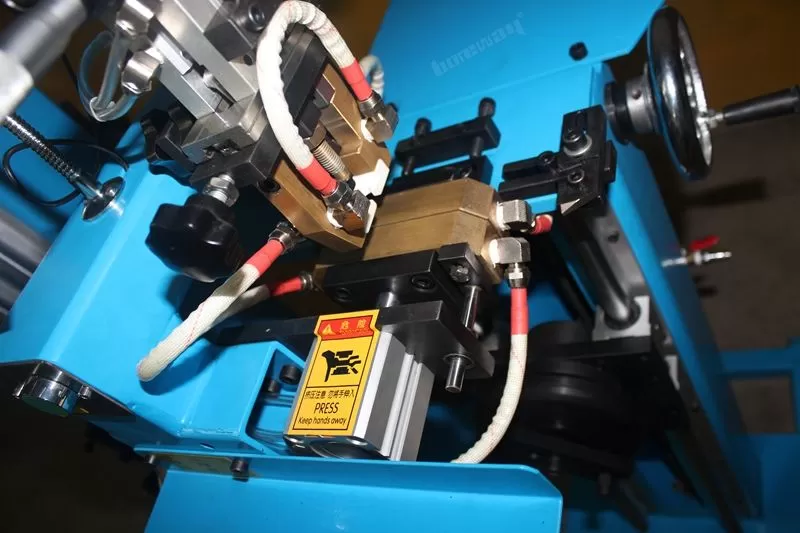

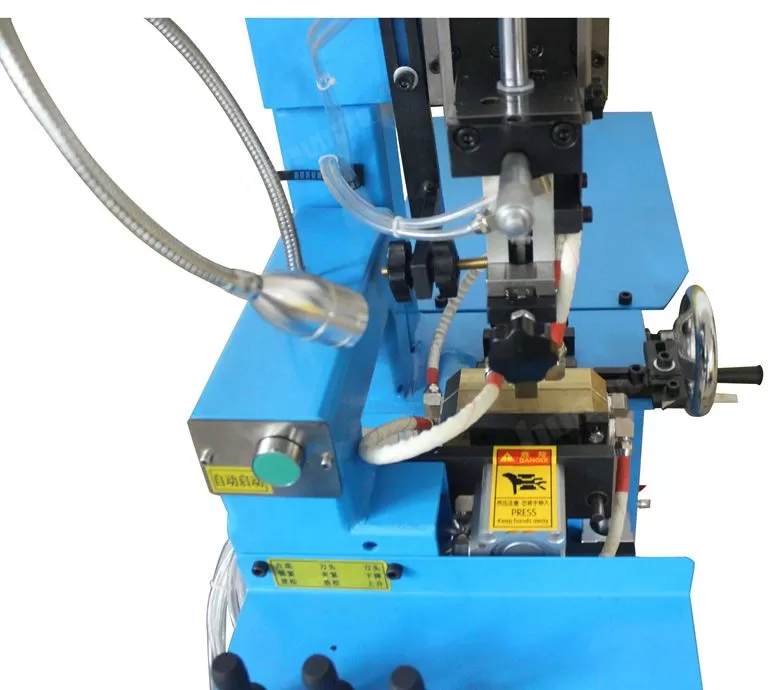

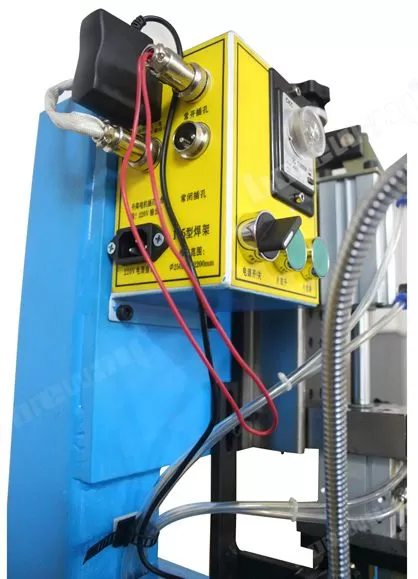

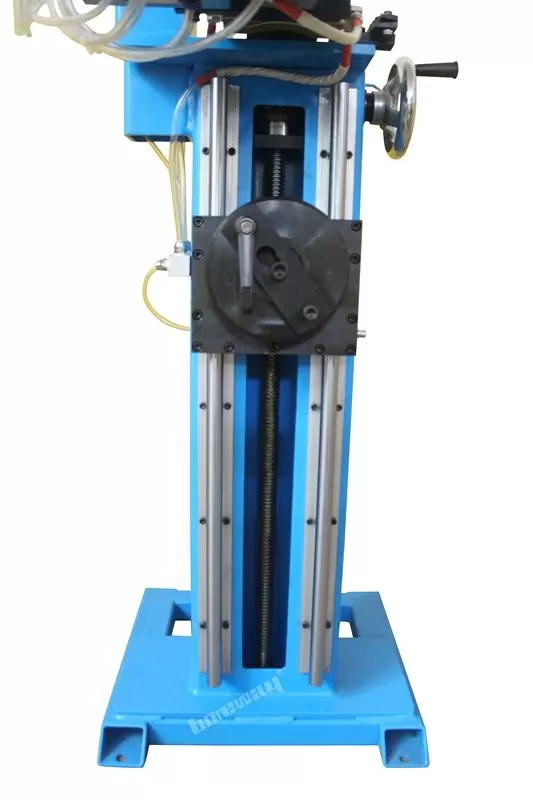

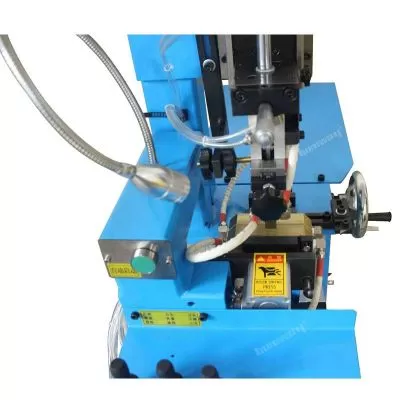

The Details Part of Show as below:

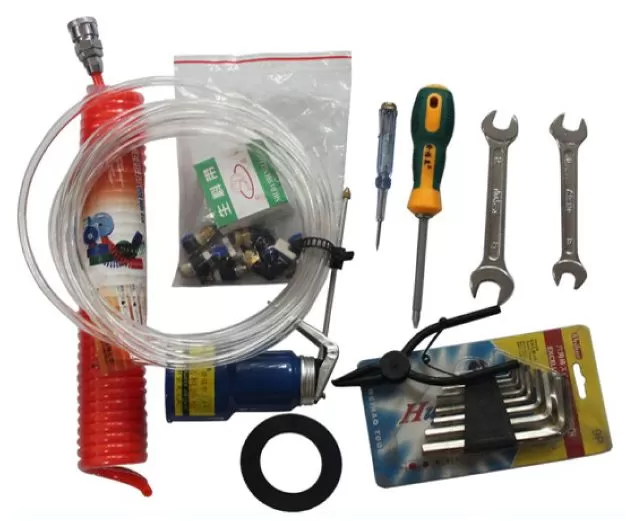

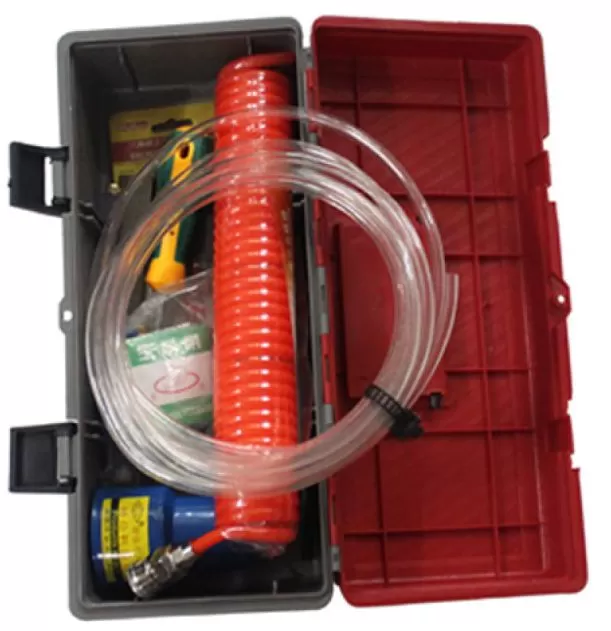

Diamond Saw Blade Welding Rack Tool Box Tool Accessories Included:
Diamond Saw Blade Welding Rack Packing：
Welding frame for diamond saw blade segment packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.
