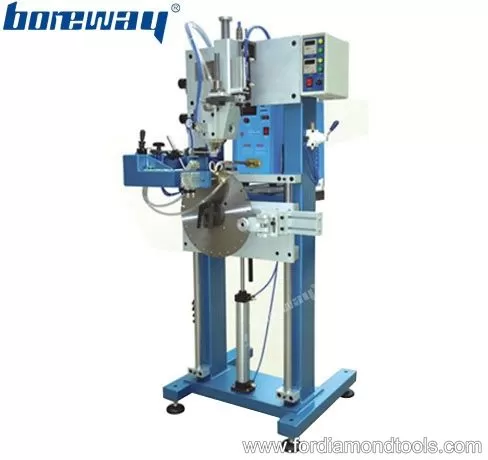

Brazing Frame For Diamond Circular Saw Blade And Core Drill Bit

Product Specification:

Brazing diameter :

280-1300/280-2500mm
Advantage :

Improved precision & durability
Maximum segment thickness :

18mm
Segment height :

25mm

See Price

May you like

Welding Frame For Diamond Saw Blades Welding Range 350_3500mm

Semi-Automatic Welding Frame Brazing Machine is used for Welding Diamond Circular Saw Blade from ø350mm to ø3500mm, Standard welded 2500mm saw blade.

Welding Rack For Diamond Saw Blade Diameter 250_2300mm

Diamond Saw Blade Welding Rack Machine is used for Welding Diamond Circular Saw Blade from ø250mm to ø2300mm ( Should be boosted 1000mm high).

Welding Frame For Diamond Saw Blade Segment Welding Range Diameter 250 To 1400MM

Welding Frame for diamond saw blade segment is used for Welding Diamond Circular Saw Blade from ø250mm to ø1400mm. In addition, Semi-automatic diamond saw blade brazing machine also can be used for welding gang saw blade after specially modification

Brazing Welding Frame Rack For Diamond Circular Saw Blade BW_HJ_1200

Brazing welding frame rack for diamond circular saw blade is designed for welding various specifications of diamond saw blades. to see more of boreway diamond saw blade brazing machine.

Product Details

High precision brazing frame for diamond circular saw blade & core drill bit is a newly developed machinery for the industry.
Display & adjustment device for segment centering adjustment.

Patented design-arrow point segment clamp. Improved precision & durability.

Segment clamp is made of Ceramic alloy material for improved durability & heat resistance.

It’s easy to operate, precise,stable & high cost to performance ratio, comparing to imported machine.

This diamond saw blade welding rack machine improves the brazing precision & torque strength of diamond circular discs and reduces sharpening & labor cost significantly.

Brazing frame for diamond circular saw blade and core drill bit:

MODEL	DIMENSION	WEIGHT	BRAZING DIAMETER
GHA250/800C	86×80×160	150kg	250~800mm
GHA250/1600C	100×86×180	230kg	250~1600mm
GHA250/2000C	110×90×205	280kg	250~2000mm
GHA250/2500C	110×90×2250	320kg	250~2500mm

Brazing capacity 7-10 discs per hour (for diameter 350mm)

Maximum segment thickness 18mm,segment height 25mm

Brazing diameter(for circular saw)280-1300/280-2000/280-2500(mm)

Positioning accuracy : Surface of segment tolerance:±0.05,Blade symmetry tolerance:±0.05.

Brazing frame for diamond circular saw blade and core drill bit

1. Brazing frame for diamond circular saw blade packing in the wooden.
2. We can also pack the saw blade welding rack according to your requirements.
3. Special specifications need to be negotiated for delivery times.
