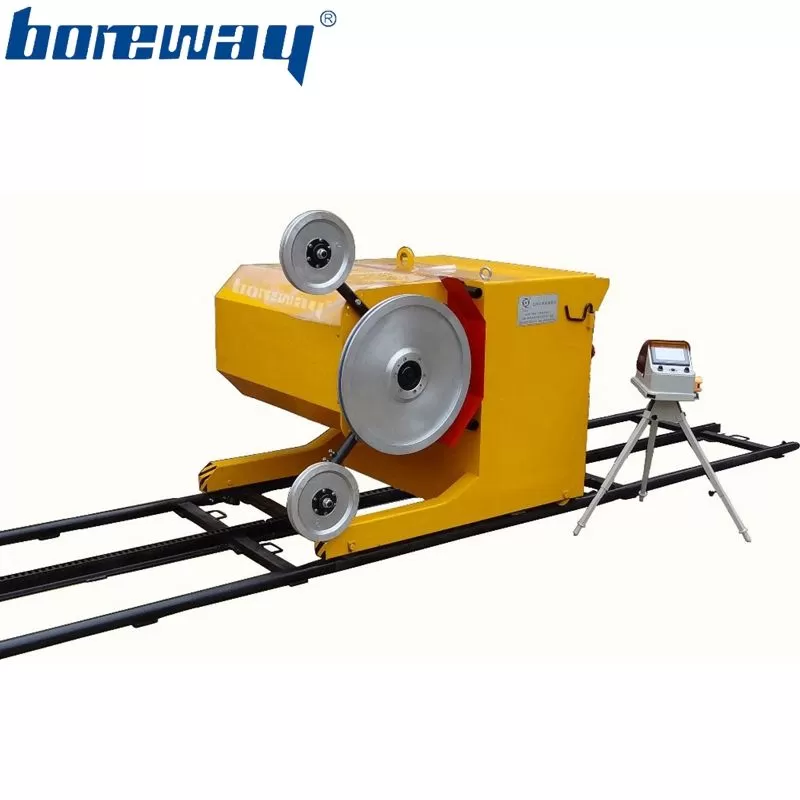

Diamod Wire Saw Machine For Stone Cutting Granite And Marble Quarry Usage

Diamod Wire Saw Machine For Stone Cutting Granite And Marble Quarry Usage

Product Specification:

Model :

BWM-DWSM-75
Weight :

2.4-3.5T
Motor power :

37-110kw
Liner wire speed :

0~30m/s
Cutting head rotation :

360°
Travel motor power :

0.75 kw
Main motor rotation speed :

0~960 r/min

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

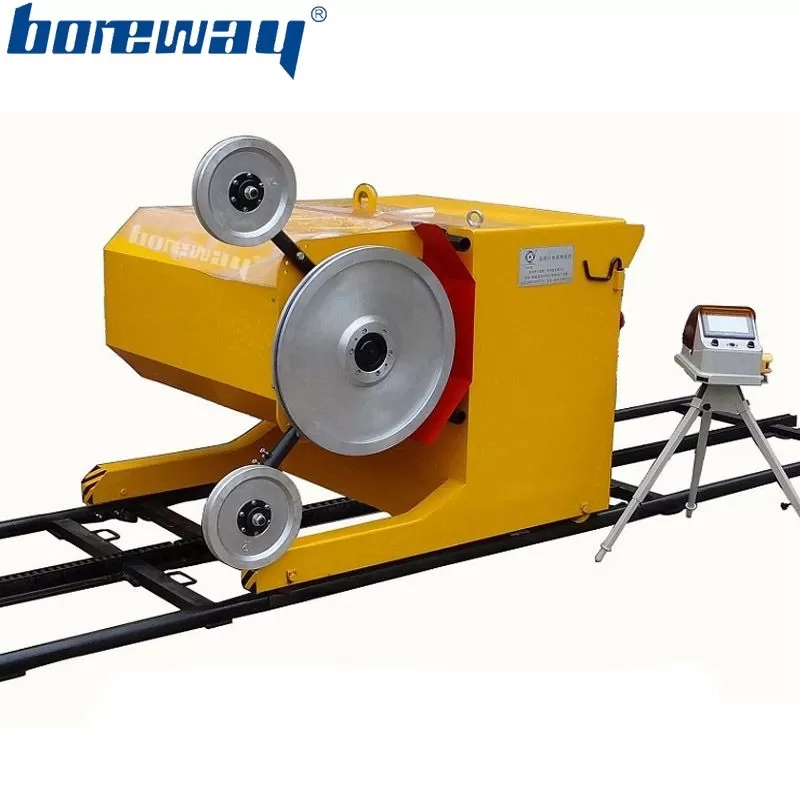

Diamod wire saw machine for stone cutting Granite and marble quarry usage

Variable speed Wire Saw Machine, with electric controlled inverter that allows a variable linear speed of the wire 0m/s-40 m/s for marble cutting and 0m/s-30m/s for granite cutting, suitable for any quality or hardness of quarries, such as marble, granite, sandstone etc. also available for bridge, reinforced concrete and other construction cutting. With the feature of operation easily, short preparation, fast cutting speed and high efficiency.

Besides the features that the standard type wire saw machine has,the reinforced type has other features as follows:
1. A new operating system makes all performance are stable and reliable.
2. Add a position-limit switch to make the main motor can only rotate + 180^o.
3. A fault warning function is added to the control panel so that it becomes easier and save time to find out the faults.

4. According to our many years' experience in stone quarries and the valuable suggestions proposed by our customers,our company develops a brand new control system,with the purpose of solving the special operating conditions in stone quarry process and its adjustable functions can meet the demand of practical operating conditions better.

Diamod Wire Saw Machine For Stone Cutting Granite and Marble Quarry Usage:

Model	Motor power	Power cord length	Wire speed	Application
DWS-37AX-8PG	37KW	20-80	0-30	For granite
DWS-55AX-8PG	55KW	20-120	0-30
DWS-75AX-8PG	75KW	20-150	0-50
DWS-90AX-8PG	90kw	30-160	0-50
DWS-110AX-8PG	110kw	40-180	0-50
DWS-37AX-6PG	37KW	20-80	0-40	For marble
DWS-45AX-6PG	45KW	20-100	0-40
DWS-55AX-6PG	55KW	20-120	0-40
DWS-75AX-8PG	75KW	20-150	0-50
DWS-90AX-8PG	90KW	30-160	0-50
DWS-110AX-8PG	110KW	40-180	0-50

Diamod wire saw machine for stone cutting Granite and marble quarry usage

Model	DWS-37AX-8P	DWS-55AX-8P	DWS-75AX-8P
Total power	39.95 kw	57.95kw	78.35 kw
Main motor power	37 kw	55kw	75 kw
Travel motor power	0.75 kw	0.75kw	0.75 kw
Rotary cutting head motor power	1.1 kw	1.1kw	1.5 kw
Shifting cutting head motor power	1.1 kw	1.1kw	1.1 kw
Cutting head rotation	360°	360°	360°
Lateral movement of cutting head	1.8m	2m	2.2m
Main motor rotation speed	0~960 r/min	0~960 r/min	0~780 r/min
Liner wire speed	0~30m/s	0~30m/s	0~30 m/s
Diameter drive wheel	800mm	800mm	1000 mm
Specification	180127130cm	180137130cm	220145150cm
Weight	2.4T	2.8T	3.5T
Power supply	380V-460V/ 60HZ

Other specification can be customized according to need.

Diamod wire saw machine for stone cutting Granite and marble quarry usage :

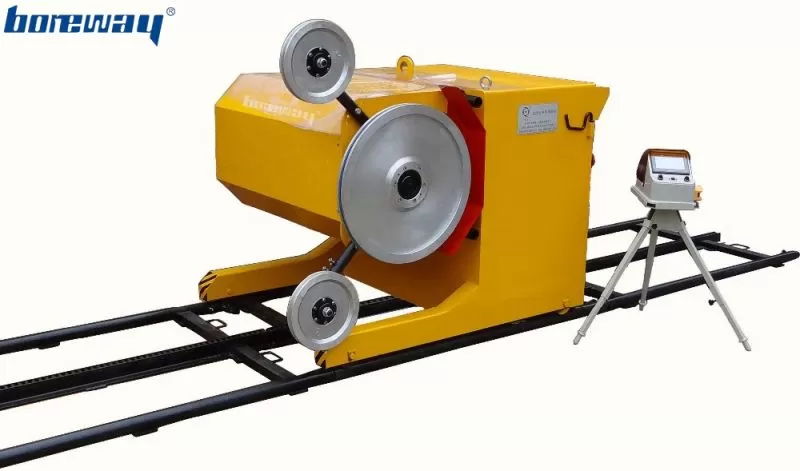

Diamod wire saw machine for stone cutting Granite and marble quarry usage -1

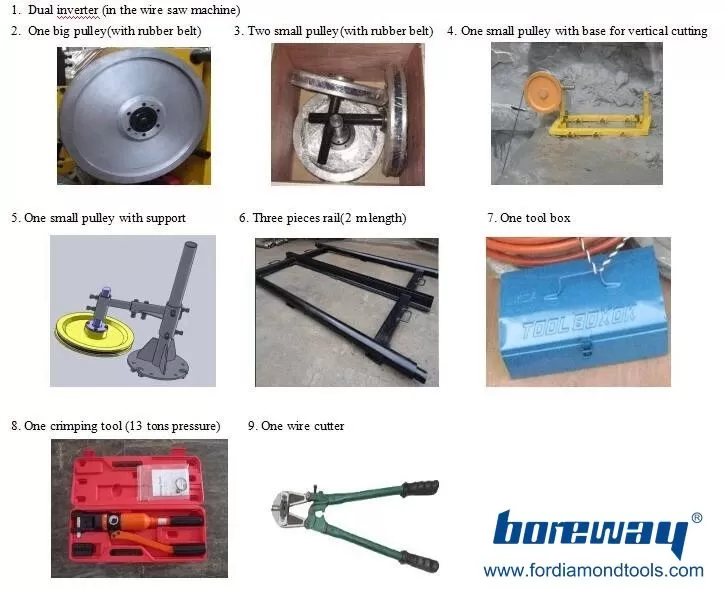

Standard Fitting: Diamod wire saw machine standard fittings

Diamond Wire Saw Machine for stone cutting quarry usage packing in the wooden cases.

We can also pack the hammer machine according to your requirements.
Special specifications need to be negotiated for delivery times.
