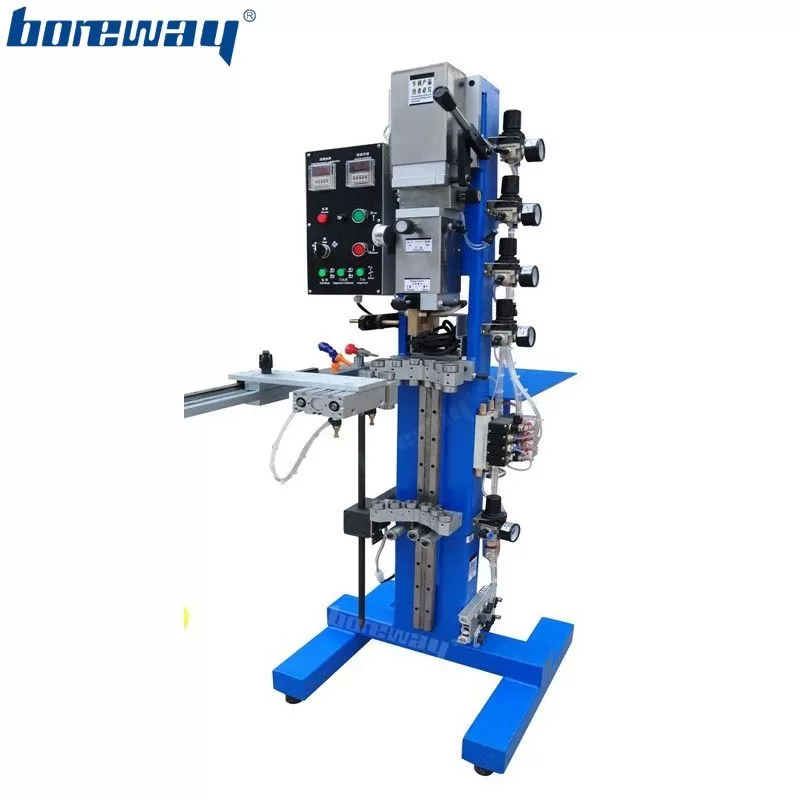

Diamond Core Drill Bit Welding Rack Hot selling Welding Machine For Diamond Bits

Product Specification:

Model :

BWM-004
Power :

80W
Air Pressure :

0.8mpa
Hydraulic Pressure :

≥0.2
Brazing height :

40~600
Brazing diameter :

φ20~φ250
Brazing capacity :

300~480PC/H

See Price

May you like

Welding Frame For Diamond Saw Blades Welding Range 350_3500mm

Semi-Automatic Welding Frame Brazing Machine is used for Welding Diamond Circular Saw Blade from ø350mm to ø3500mm, Standard welded 2500mm saw blade.

Welding Rack For Diamond Saw Blade Diameter 250_2300mm

Diamond Saw Blade Welding Rack Machine is used for Welding Diamond Circular Saw Blade from ø250mm to ø2300mm ( Should be boosted 1000mm high).

Welding Frame For Diamond Saw Blade Segment Welding Range Diameter 250 To 1400MM

Welding Frame for diamond saw blade segment is used for Welding Diamond Circular Saw Blade from ø250mm to ø1400mm. In addition, Semi-automatic diamond saw blade brazing machine also can be used for welding gang saw blade after specially modification

Brazing Welding Frame Rack For Diamond Circular Saw Blade BW_HJ_1200

Brazing welding frame rack for diamond circular saw blade is designed for welding various specifications of diamond saw blades. to see more of boreway diamond saw blade brazing machine.

Product Details

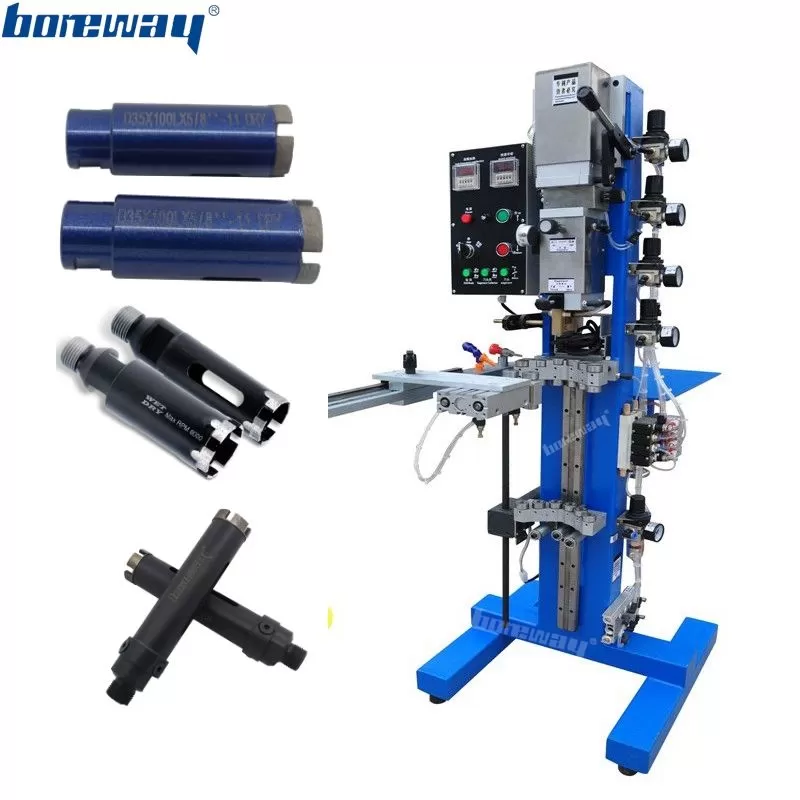

Diamond Core Drill Bit Welding Rack hot selling welding machine for diamond drill bits

1. Brazing diameter: 20-250mm high:40-600mm
2. Plc and electrical system
3. Automatic operate.

We adopt pneumatic system,PLC SYSTEM

Step1: Press the button or step on the footpad to clip the segment

Step2: Step again once on the footpad to complete the whole brazing process automatically.

All the locks will open automatically after brazing.

Moreover

Our products export to Brazil, India, Australia, USA, Ukraine, Italy, Poland, Russia.etc.more than 20 different countries.In these overseas markets,our blades enjoy a good reputation, we get good feedbacks about their corresponding test result, and also a long lifespan. so, we are confident in our products quality.All of our our products have been strictly tested before access to market.

We adhere to the enterprise philosophy of "superior quality, faithfulness to the cooperation". Boreway Machinery orients itself by persistence and a well-known brand. We provide high value diamond tools and machines, as well as satisfied after-sales service for our old & new foreign and domestic customers.We sincerely hope to cooperate with your esteemed corporation to create a better future hand in hand.

Diamond Core Drill Bit Welding Rack hotselling welding machine for diamond drill bits

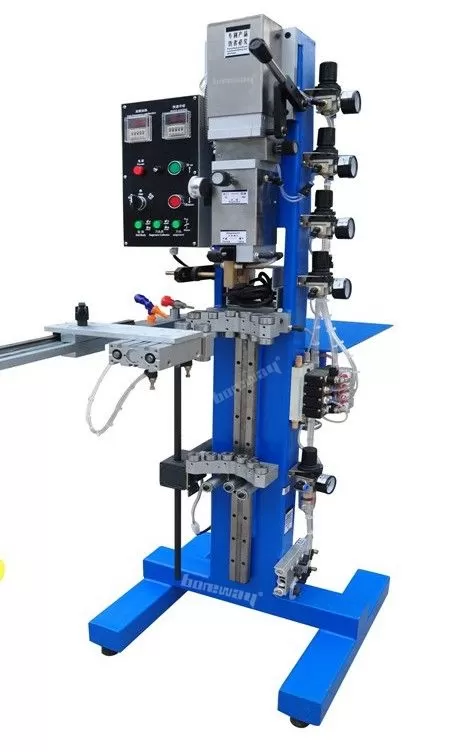

BWM-004 Diamond Core Drill Welding Machine
Brazing diameter	diameter	mm	φ20~φ250
	height	mm	40~600
Blade Symmetry Tolerance		mm	≤±0.04
Surface of segment tolerance		mm	≤±0.04
Brazing capacity		pc/h	300~480
Air Pressure		mpa	0.8
Hydraulic Pressure		mpa	≥0.2
Power		w	80
Water Consumption		m3/h	1
Machine Weight		kg	70
Trolley Dimension		mm	9005501400

The above specification is only for Reference, other or special specification can be ordered by customers.

We can manufacture products upon clients' needs.

Diamond Core Drill Bit Welding Rack hotselling welding machine for diamond drill bits

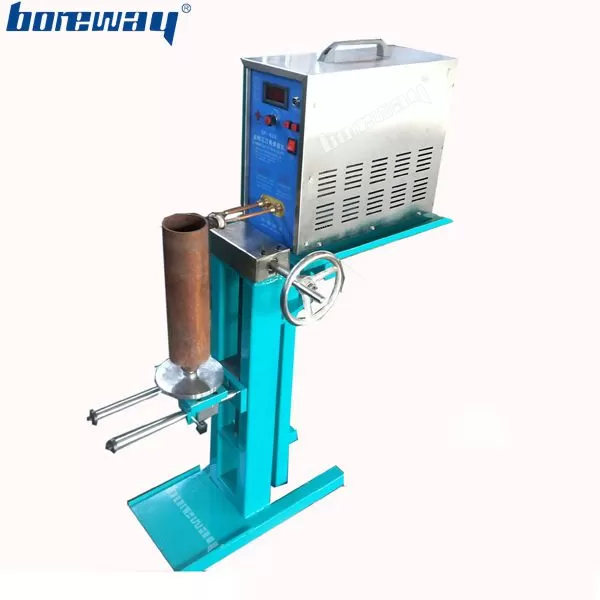

Model: BWM-DMHJ01

Brazing machine for black diamond segment core drill bits segments welding Rack

Brazing machine for black diamond segment core drill bits segments

Diamond Core Drill Bit Welding Rack Packing in the wooden case.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated with us before delivery.
