Diamond Circle Saw Blade Welding Rack

Diamond Saw Blade Welding Frame welding diameter 200_800mm model BWA60_4P

Product Specification:

Model :

BWA60-4P
Power(W) :

120
Air Pressure(MPA) :

0.6
Water consumption(m³/h) :

1.5
Hydraulic Pressure(MPA) :

≥0.2
Brazing Capacity(pc/h) :

360-720
Brazing Diameter :

Ø300-Ø800mm/Ø200-Ø600mm

See Price

May you like

Welding Frame For Diamond Saw Blades Welding Range 350_3500mm

Semi-Automatic Welding Frame Brazing Machine is used for Welding Diamond Circular Saw Blade from ø350mm to ø3500mm, Standard welded 2500mm saw blade.

Welding Rack For Diamond Saw Blade Diameter 250_2300mm

Diamond Saw Blade Welding Rack Machine is used for Welding Diamond Circular Saw Blade from ø250mm to ø2300mm ( Should be boosted 1000mm high).

Welding Frame For Diamond Saw Blade Segment Welding Range Diameter 250 To 1400MM

Welding Frame for diamond saw blade segment is used for Welding Diamond Circular Saw Blade from ø250mm to ø1400mm. In addition, Semi-automatic diamond saw blade brazing machine also can be used for welding gang saw blade after specially modification

Brazing Welding Frame Rack For Diamond Circular Saw Blade BW_HJ_1200

Brazing welding frame rack for diamond circular saw blade is designed for welding various specifications of diamond saw blades. to see more of boreway diamond saw blade brazing machine.

Product Details

BWA60-4P Diamond Saw Blade Welding Frame welding diameter 200-800mm. This series welding frame is updated version form BWA60-3P. This machine is high-precision type,which especially for small saw blade welding as ceramic cutting saw blade or jewel cutting saw blade.Manually sent segment,manually put silver solder,manually put soldering flux,and Human-assisted segment separating,other welding steps will be finished automatically.

CONFIGURATION:

1.Ceramic clip protection function.

2.Human-assisted segment separating system (special version for the small saw blade).

3.Segment automatic fixing system.Machine can automatic fix the segment to the welding position.

4.Segment manually centering system.Manually adjust the welding position of the segment before the welding.

BWA60-4P Diamond Saw Blade Welding Frame, Welding machine for diamond saw blade:

Model	BWA60-4P
Brazing Diameter （mm）	Ø300-Ø800/Ø200-Ø600
Welding error （Verticality）（mm）	≤±0.02
Welding error （Linearize）（mm）	≤±0.02
Brazing Capacity （pc/h）	360-720
Air Pressure（MPA）	0.6
Hydraulic Pressure（MPA）	≥0.2
Power（W）	120
Water consumption（m³/h）	1.5
Weight（Kg）	152
Dimension（mm）	10007501650

Note：This Machine No Include induction heater,air compressor and water pump.

High Frequency Induction Heater, Pls click the below link to see the details:

20KW+220V machine, Pls click here: 20KW High frequency induction heating welding machine

25KW+380V machine, Pls click here: 25KW High frequency induction welding machine

30KW+380V machine, Pls click here: 30KW High Frequency Induction Brazing Machine

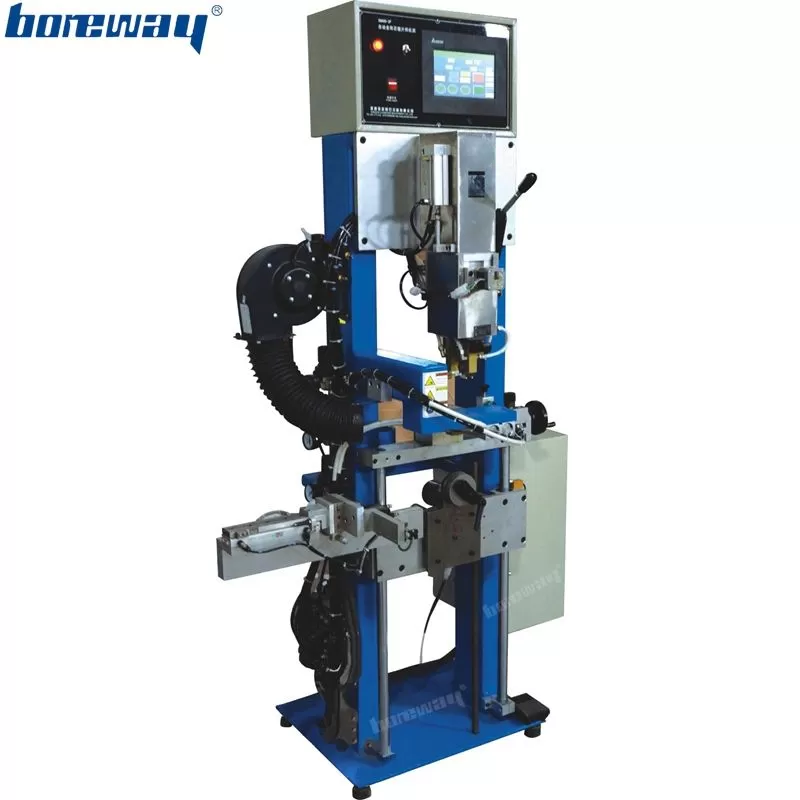

BWA60-4P Diamond Saw Blade Welding Frame, Welding machine for diamond saw blade:

BWA60-4P Diamond Saw Blade Welding Frame, Welding machine for diamond saw blade

Related Products as below:

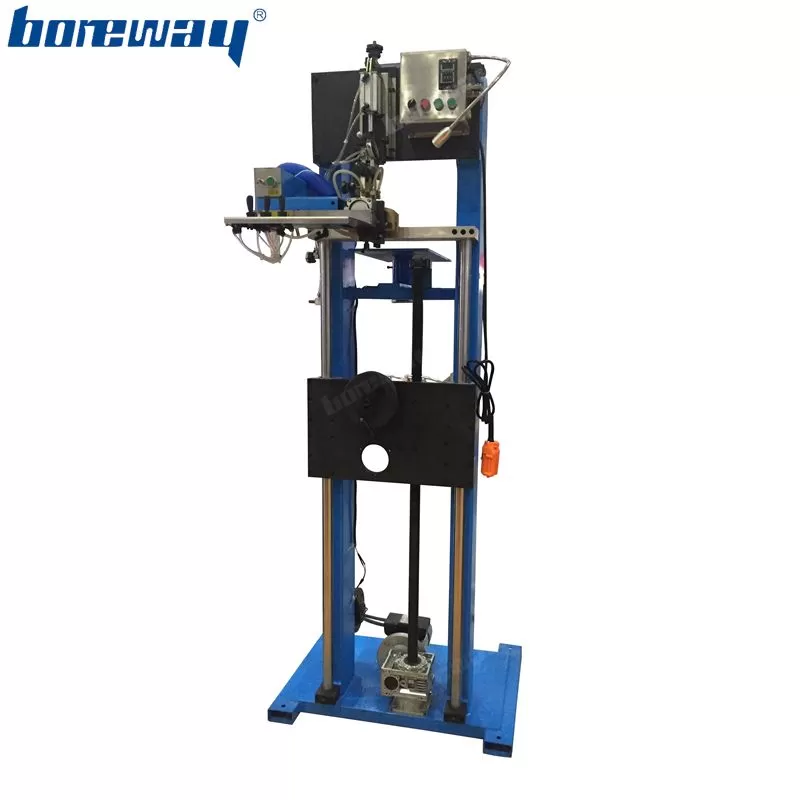

Model: BWM-HJ08, Pls click here: Semi Automatic Brazing Frame Rack Dia.250-1400mm

Diamond Saw Blade Welding Frame, Welding machine for diamond saw blade

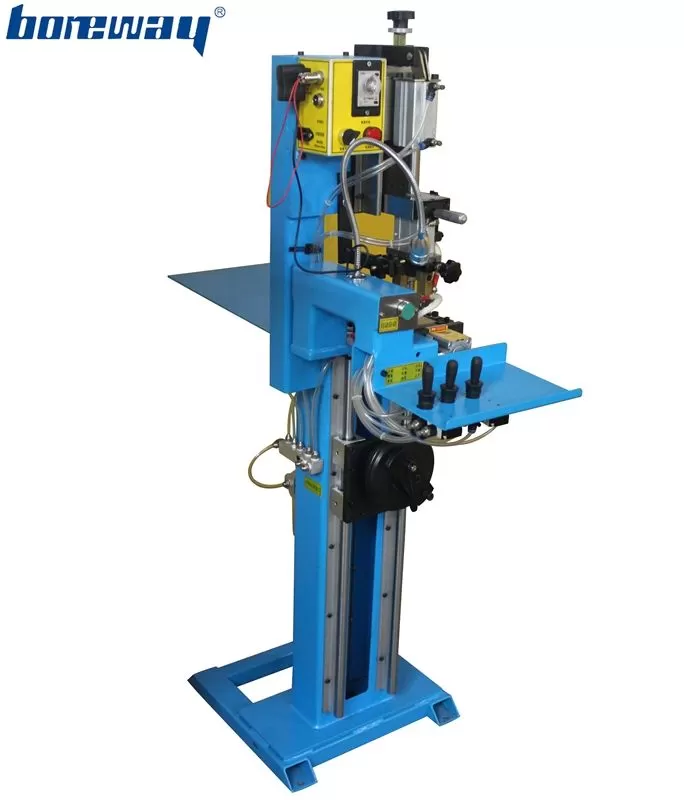

Model: BWM-HJ165, Pls click here: Semi Automatic Welding Frame Rack Dia. 250-2300mm

Diamond Saw Blade Welding Frame, Welding machine for diamond saw blade

Model: BWM-HJ350, Pls click here: Semi Automatic Brazing Machine Welding Rack Dia.350-3500mm

Diamond Saw Blade Welding Frame, Welding machine for diamond saw blade

1. Diamond saw blade welding frame rack packing in the wooden.

2. We can also pack the saw blade welding rack according to your requirements.
3. Special specifications need to be negotiated for delivery times.
