Diamond Circle Saw Blade Welding Rack

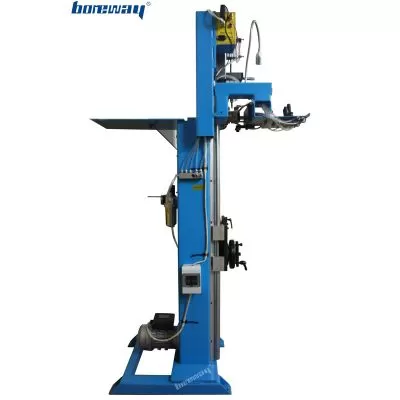

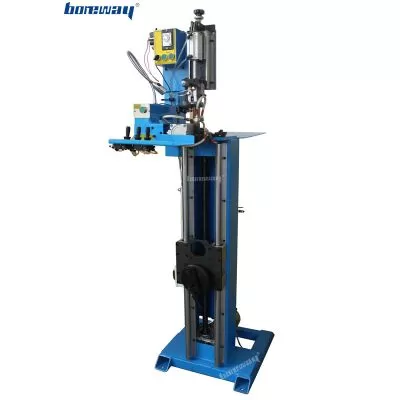

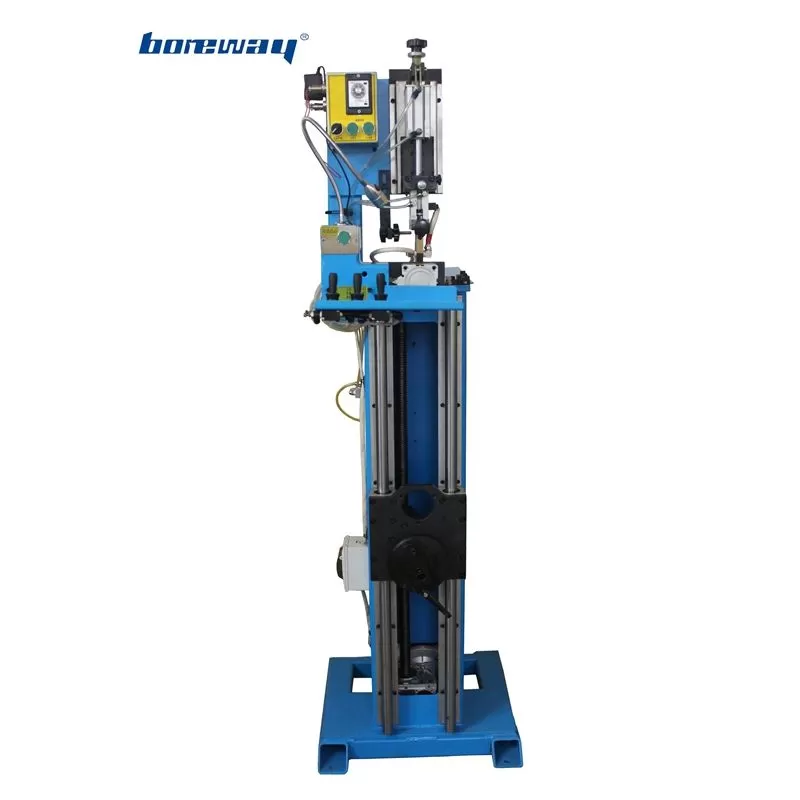

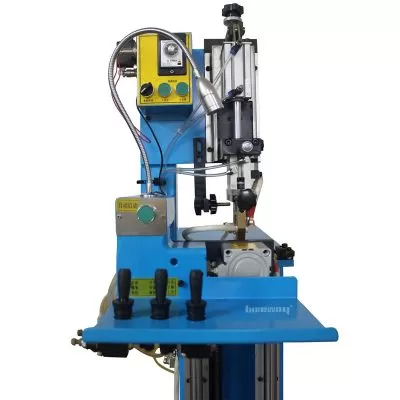

Semi Automatic Welding Frame Rack For Making Diamond Saw Blade Diameter 250 To 2300mm
-
Model :BWM-HJ165
-
Current :0.01A
-
Rated Capacity :370W
-
Machine Weight :160kg
-
Voltage :220 (Single-phase), 50HZ
-
Power (From LED Lighting) :1.0W
-
Water Consumption :1.5-2.0 cubic meter per hour
May you like
- Product Details
The "BWM-HJ165" Semi-Automatic Welding Frame Rack Machine is used for Welding Diamond Circular Saw Blade from ø250mm to ø2300mm ( Should be boosted 1000mm high). In addition, it also can be used for welding gang saw blade after specially modification, It is a new type of diamond saw blade welding auxiliary equipment.
Diamond Saw Blade Welding Frame Rack machine has gripper, pneumatic sliding table and other high-precision components, thus greatly improving the welding accuracy and efficiency, to protect the segments and the base of the welding strength. Compared with similar welding machine with a high level of automation, positioning accuracy, stability, and long service life.This series of products using user-friendly design, general workers can operate on the machine.In addition, the welding machine compact structure, most of the wearing parts can be found and purchased in the pneumatic tools shop in your side, rather than relying on the service agents.
Features:
1. Welding diameter range can be adjusted ;
2. Welding frame structure is compact and reliable ;4. High level of automation, good stability, long service life ;
All of our products have been strictly tested before access to market.
Semi Automatic Welding Frame Rack for making Diamond Saw Blade Dia. 250-2300mm
| Model No: BWM-HJ165 | |
| Welding Range | Φ240mm - 2300mm(standard Φ1300mm) |
| Verticality | ≤± 0.3mm |
| Parallelism | ≤± 0.3mm |
| Welding Rate | 4-20 PCS/Min |
| Air Pressure | 0.3 - 0.6Mpa |
| Water Pressure | ≥ 0.2Mpa |
| Voltage | 220V (Single-phase)50Hz |
| Power(From LED Light) | 370W |
| Water Consumption | 1.5 - 2m³/h |
| Machine Dimensions | L1030*W550*H1840mm |
| Equipment Weight | 160Kg |
| Package Dimensions | L2000*W680*H700(Horizontally) |
| Package Weight(Wooden Package) | 200Kg |
Other specifications can be customized according to requirements.
Note :This machine doesn’t include high frequency Welding machine , air compressor and water pump.

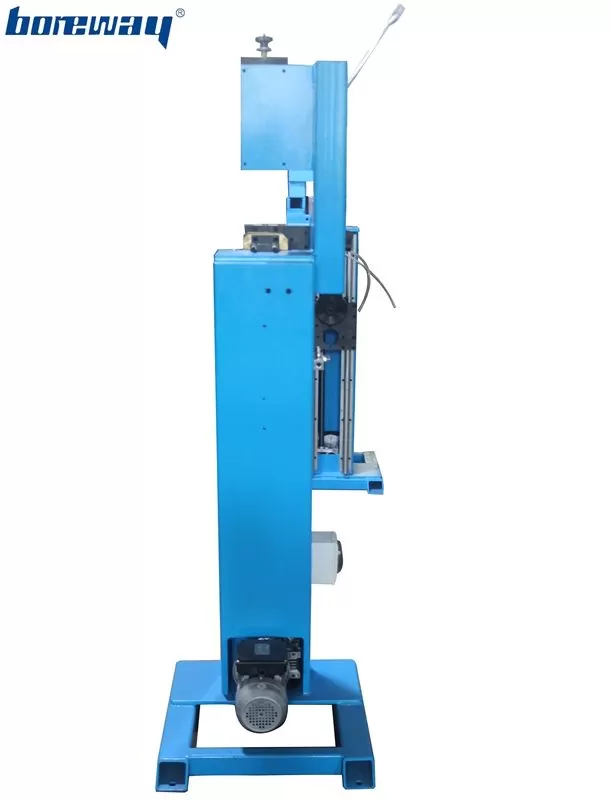

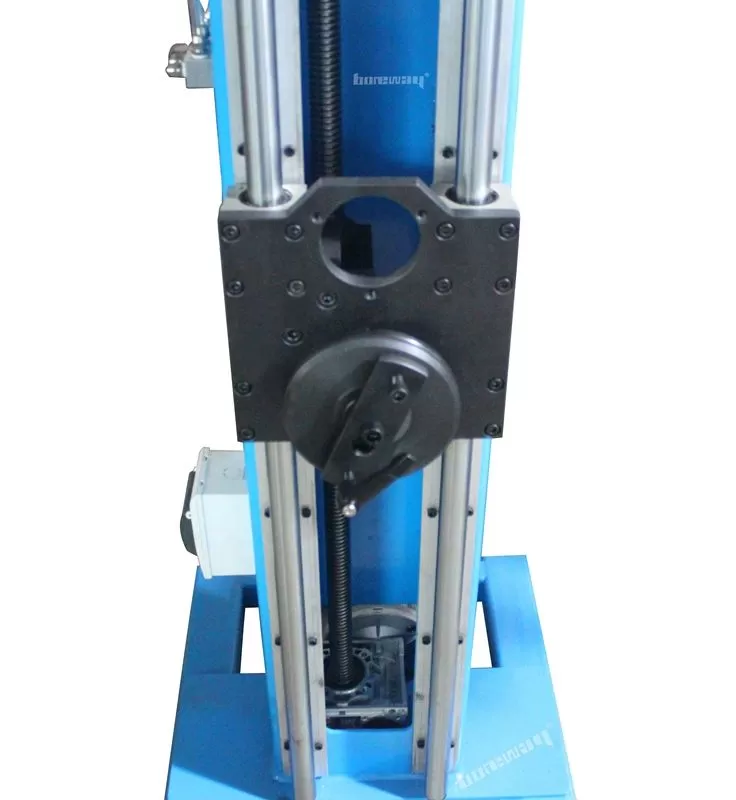

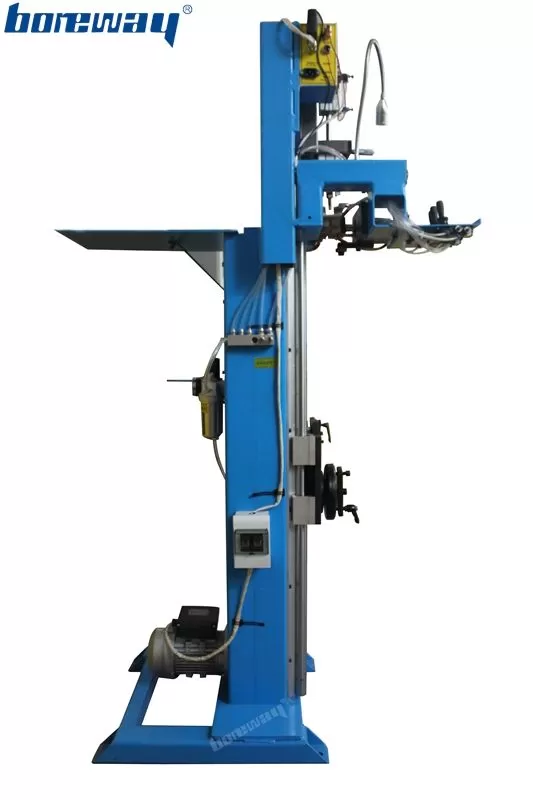

Semi Automatic Welding Frame Rack for making Diamond Saw Blade Dia. 250-2300mm
Semi Automatic Welding Frame Rack for making Diamond Saw Blade Dia. 250-2300mm

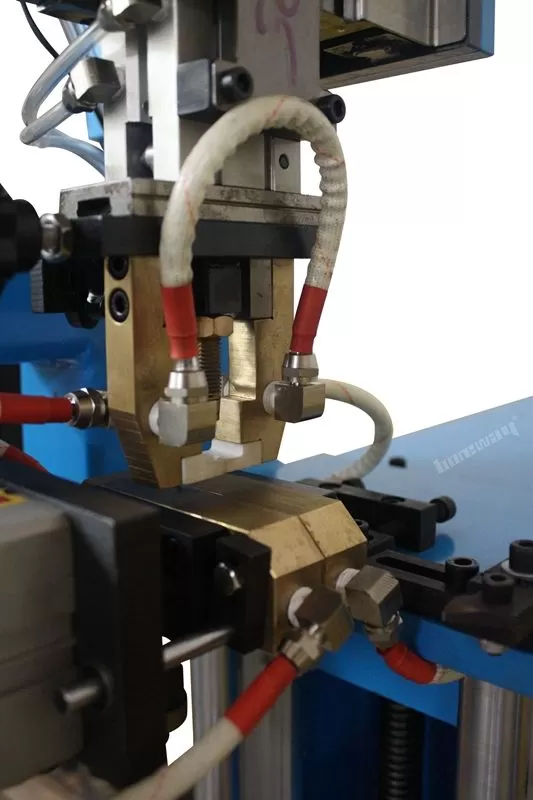

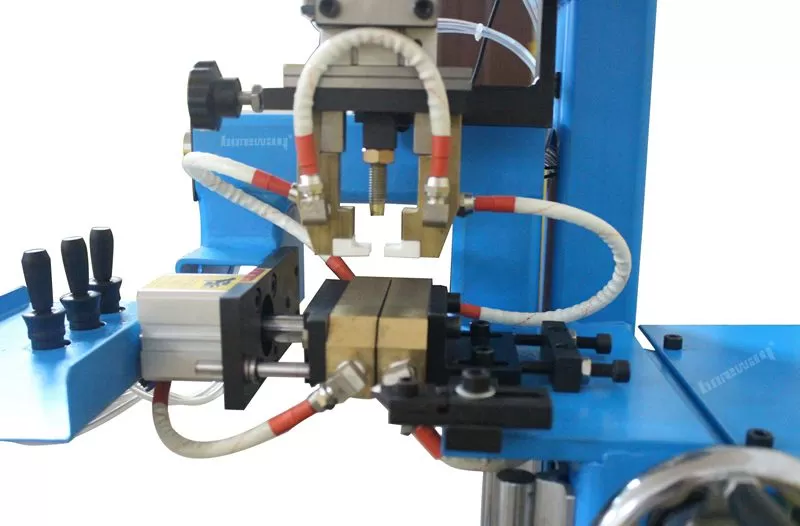

The Details:
Welding Frame Rack Accessories-Tool Box :
How to Weld Diamond Segment to Saw Blade?
4). Finally, Weld the diamond segment and saw blade together.
Semi-Automatic Welding Frame Rack Machine packing in the wooden.
Special specifications need to be negotiated for delivery times.
