Tension Correcting Machine For Circular Diamond Saw Blade

Product Specification:

Model :

BWM-JYX Series
Motor power(KW) :

4.5-7.5
Rated pressure(KN) :

6-100
Rated oil pressure(MPa) :

0.8-12
Speed of tension roller(rpm) :

25
Diameter of tension roller(mm) :

110
Rang of adjustment :

Φ100-3500mm

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

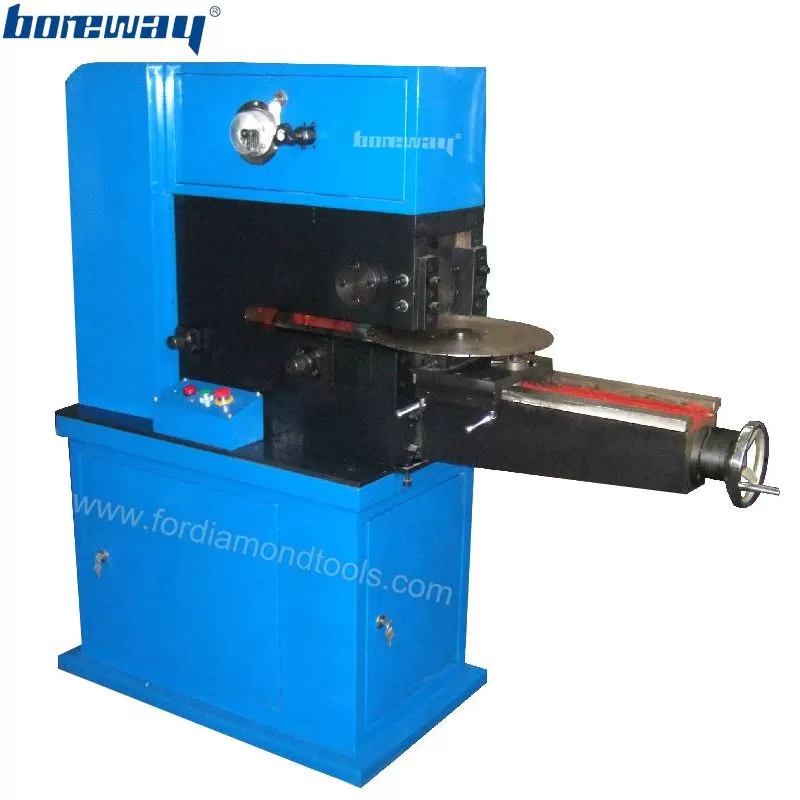

Tension Correcting Machine for Circular Diamond Saw Blade

This diamond saw blade inspection and tension machine is suitable for tension correcting for diamond saw blade with diameter rangeΦ100mm -Φ3500mm.

Tension Correcting Machine For Circular Diamond Saw Blade:

Model	JYX-3500	JYX-2200	JYX-1600
Rang of adjustment(mm)	Φ500-Φ3500	Φ350-Φ2200	Φ250-Φ1600
Rated pressure(KN)	6-100	6-80	6-80
Rated oil pressure(MPa)	0.8-12	0.8-10	0.8-10
Diameter of tension roller(mm)	110	110	110
Speed of tension roller(rpm)	25	25	25
Motor power(KW)	7.5	4.5	4.5
Overall dimension(mm)	5500×1500×2500	2200×2000×600	1600×500×600
Weight(KG)	12000	2000	2200

Other specifications can be customized according to buyer's requirements.

Tension Correcting Machine For Circular Diamond Saw Blade:

Notice:
1. Please provide the processed material before purchase.

2. Before purchase, please provide the model of the machine.

Tension Correcting Machine packing in the wooden.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
