Tension Correction Machine For Diamond Gang Saw BWM_JYX_2

Product Specification:

Model :

BWM-JYX-2
Motor power :

1.5+3.0kw
Roller diameter :

Ф110mm
Piston diameter :

Ф100mm
Working voltage :

380V 50Hz
Rotation speed of roller :

25rpm
Range of oil pressure :

0.8-10MPa

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

Tension correction machine for diamond gang saw is suitable for regulating and correcting the tension of diamond gang saw. Rolling and pressing operation of diamond saw blade are controlled by foot switch.

1. Pressure adjusting range: 0.8-10MPa

2. The leading wheel guides the movement of gang saw body

3. The roller pressure is preset to guarantee the pressure when grinding

4. Roller pressure is controlled by hydraulic pressure system and display by pressure meter

Tension correction machine for diamond gang saw BWM-JYX-2

Rated working pressure range	6.2-80KN
Range of oil pressure	0.8-10MPa
Piston diameter	Ф100mm
Rotation speed of roller	25rpm
Roller diameter	Ф110mm
working voltage	380V 50Hz
Motor power	1.5+3.0kW
Working voltage	2200kg

Other specifications can be customized according to buyer's requirements.

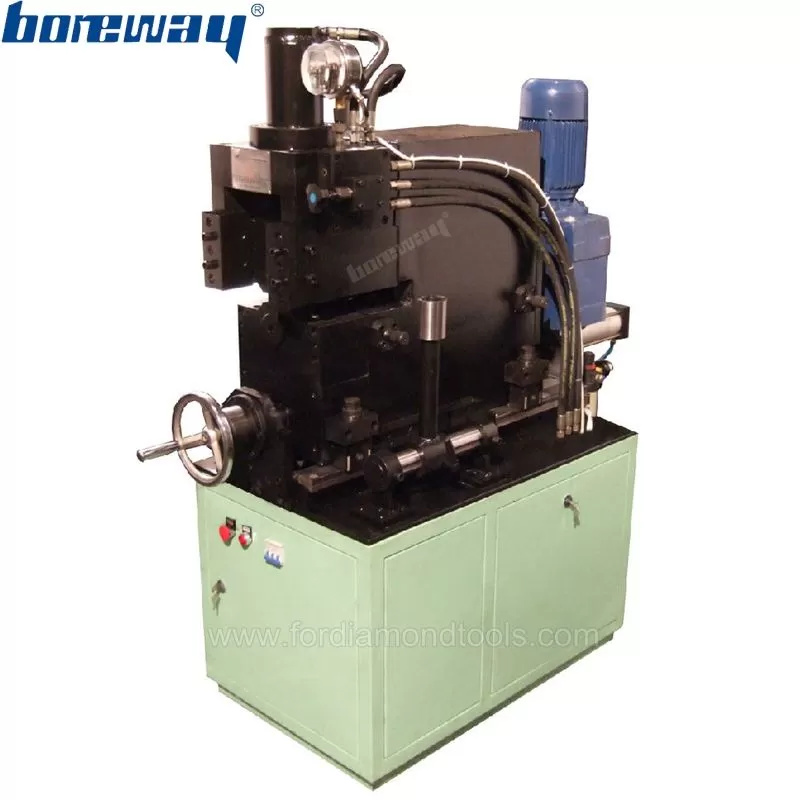

Tension correction machine for diamond gang saw

Tension correction machine for diamond gang saw

Notice:
1. Please provide the processed material before purchase.

2. Before purchase, please provide the model of the machine.

Tension correction machine packing in the wooden.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
