Tension Testing Machine For Diamond Saw Blades BWM_YLCS

Product Specification:

Model :

BWM-YLCS
weight(kg) :

360kg
Sampling angle :

＜4°
Resolving power :

＜0.01
Power supply :

AC220V50HZ1A
Pressure adjustment range :

0-400
Test range :

Φ200-Φ800/Φ350-Φ2200

See Price

May you like

Core Drill Bit Grinding Arc Thickness Measuring Machine BWM_DRG500

Core Drill bit grinding arc thickness measuring machine,Thin-wall drilling and grinding arc thickness measuring machine Grinding for segment of core drill, use belt grind, meanwhile measure thickness of segment and sort out.

Polishing Machine for polishing the surface of diamond saw blade matrix,diamond saw blade polishing machine is used for polishing the surface of the saw blade matrix, a permanent magnet embedded in the working process of the blade, prevent saw blade break

Auto Grinding Machine For Grinding Of The Front Edge And Side Edge Saw Blade

Automatic Grinding Machine for diamond saw blade, Auto Grinding Machine is used for grinding of the front edge and side edge of diamond circular saw blade.

Fully Automatic Side Grinding Machine for the edge of diamond circular saw blade,diamond circular saw blade grinding machine used for grinding of the side edge of 110~600mm in diameter circular saw blade.

Product Details

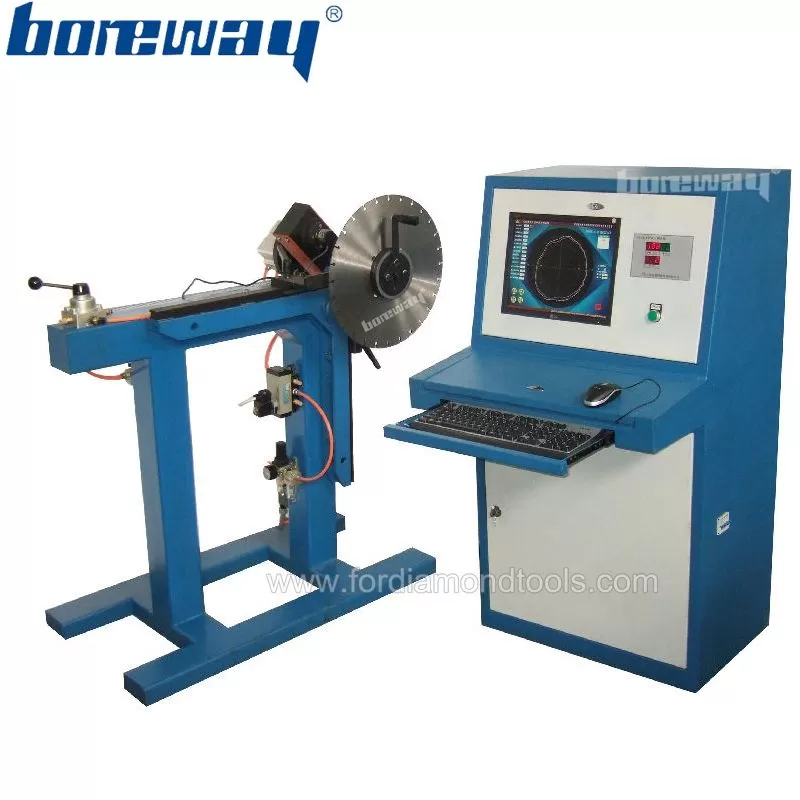

Tension testing machine for diamond saw blades BWM-YLCS

This diamond saw blade stress tester machine is suitable for testing the tension distribution state of the diamond saw blade. The tension distribution graph displayed on computer can provide significant parameters for tension adjusting.

Tension testing machine for diamond saw blades, diamond saw blade stress tester machine

Model	YLCS-1	YLCS-2
Power supply	AC220V50HZ1A
Test range	Φ200-Φ800	Φ350-Φ2200
Pressure adjustment range	0-400
Resolving power	＜0.01
Sampling angle	＜4°
Overall dimension(mm)	mainframe	mainframe
	1100×950×720（mm）	1800×800×1400（mm）
	electric cabinet	electric cabinet
	1300×720×720（mm）	1300×720×720（mm）
weight(kg)	150kg	360kg

Other specifications can be customized according to buyer's requirements.

Tension testing machine for diamond saw blades, diamond saw blade stress tester machine

Notice:
1. Please provide the processed material before purchase.

2. Before purchase, please provide the model of the machine.

Tension Testing Machine For Diamond Saw Blades packing in the wooden.

We can also pack the machine according to your requirements.
Special specifications need to be negotiated before the delivery times.
