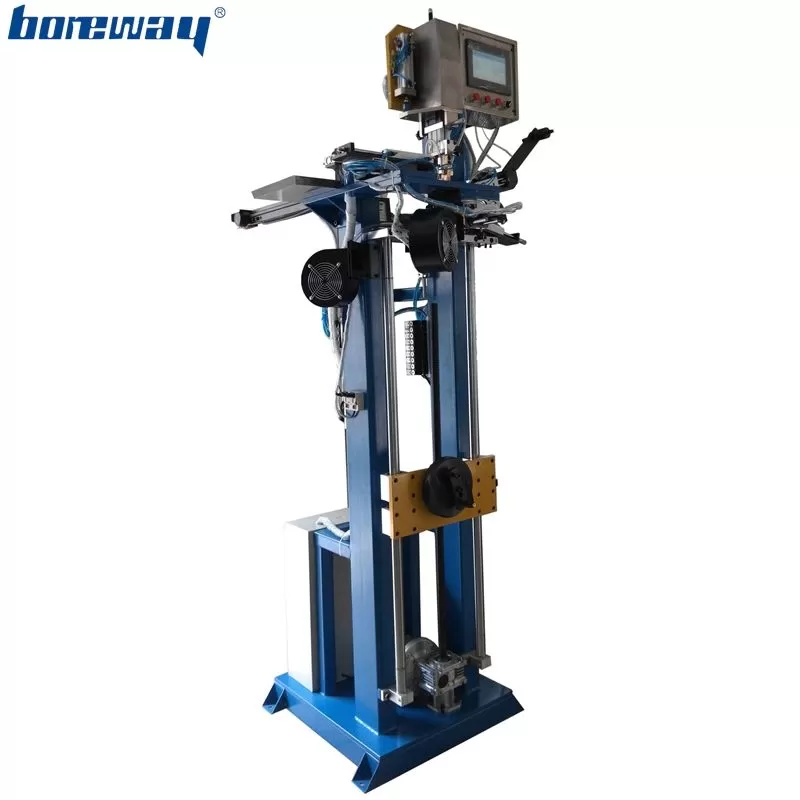

Welding Frame High Level Automatic Welding Machine For Diamond Saw Blade BWA_6P
Welding Frame High Level Automatic Welding Machine For Diamond Saw Blade BWA_6P

Welding Frame High Level Automatic Welding Machine For Diamond Saw Blade BWA_6P

Product Specification:
  • Model :
    BWA-6P series
  • Power(W) :
    800
  • Air Pressure(MPA) :
    0.6
  • Brazing Diameter :
    Ø600-Ø2300
  • Brazing Capacity(pc/h) :
    180-450
  • Water consumption(m³/h) :
    2.0
  • Hydraulic Pressure(MPA) :
    ≥0.2
See Price
  1. Product Details
BWA-6P welding frame high level automatic welding machine for diamond saw blade
Manually sent the segment and manually put the soldering flux,other welding steps will be finished automatically.

CONFIGURATION:
1. Ceramic clip protection function.
2. Pneumatic automatic segments separating system.
3. Blade lock protraction system.Prevent damage of the cupreous part when operator rising the saw blade.
4. Segment manually centering system.Manually adjust the welding position of the segment before the welding.
5. Traditional silver solder automatic sending system.It is effective and cheaper choose but less accurate and inconvenient.
6. Segment automatic picking & Fixing system.Machine can automatically pick the segment and fix to the welding position.


BWA-6P Series welding frame high level automatic welding machine for diamond saw blade

Model

BWA220-6P

BWA280-6P

BWA350-6P

Brazing Diameter (mm)

Ø600-Ø2300

Ø600-Ø2800

Ø1000-Ø3300

Welding error (Verticality)(mm)

≤±0.03

≤±0.03

≤±0.03

Welding error (Linearize)(mm)

≤±0.03

≤±0.03

≤±0.03

Brazing Capacity (pc/h)

180-450

180-450

180-450

Air Pressure(MPA)

0.6

0.6

0.6

Hydraulic Pressure(MPA)

≥0.2

≥0.2

≥0.2

Power(W)

800

1500

2200

Water consumption(m³/h)

2.0

2.5

2.5

Weight(Kg)

300

340

420

Dimension(mm)

1000*900*2000

1000*900*2300

1100*900*2650

Note:This Machine No Include induction heater,air compressor and water pump.


BWA-6P welding frame high level automatic welding machine for diamond saw blade

BWA-6P welding frame high level automatic welding machine for diamond saw blade



Related Products as below:

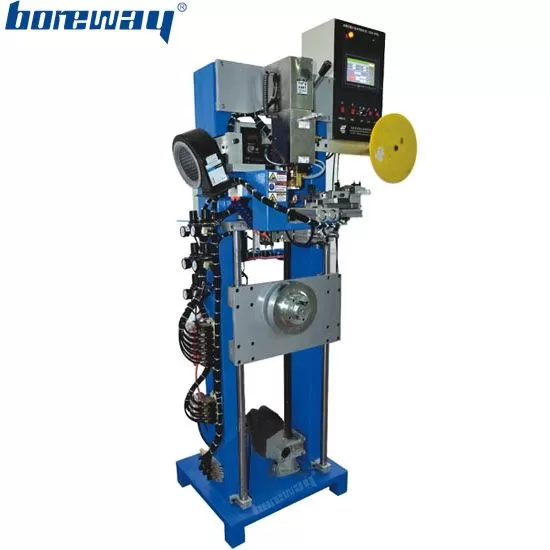

Model: BWA-EP5 Automatic Welding Machine For Diamond Saw Blade Ø600-ø2300

Automatic Welding Machine For Diamond Saw Blade brazing frame BWA-EP5/6/7

Model : BWA40-EP6/4/3 Fully Automatic Brazing Machine For Diamond Saw Blade Ø200~ø400 welding machine

Fully Automatic Brazing Machine For Diamond Saw Blade Ø200~ø400 welding machine

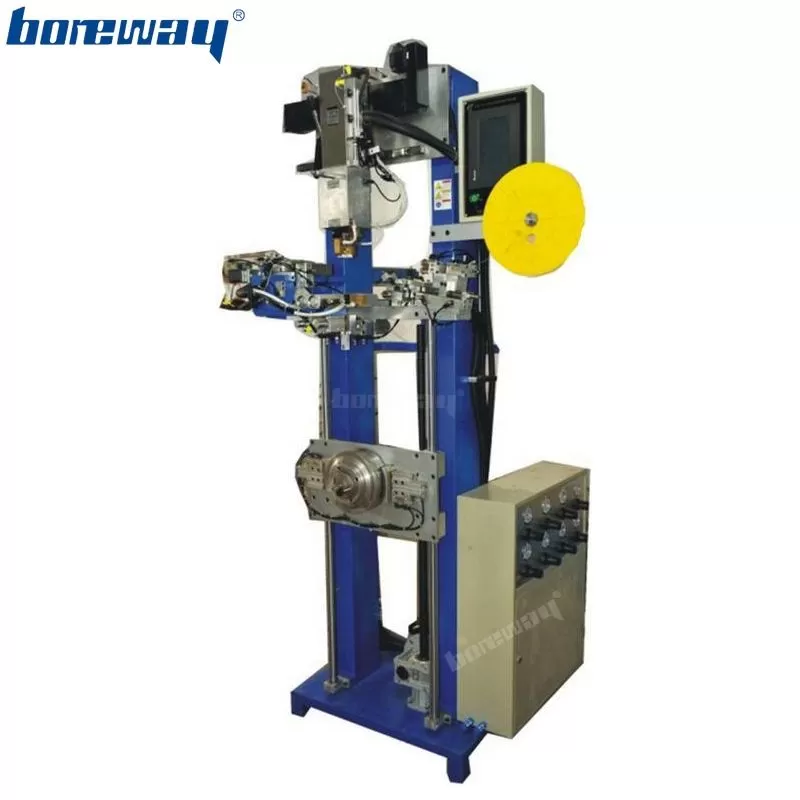

Model: BWM-CY160A Fully Automatic Welding Machine For Diamond Saw Blade Φ600mm-Φ2200mm

Fully Automatic Welding Machine For Diamond Saw Blade Φ600mm-Φ2200mm

Packing & Shipping:

Welding frame high level automatic welding machine packing in the wooden.
We can also pack the saw blade welding rack according to your requirements.
Special specifications need to be negotiated for delivery times.
